Stabilizer Shaft Link Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

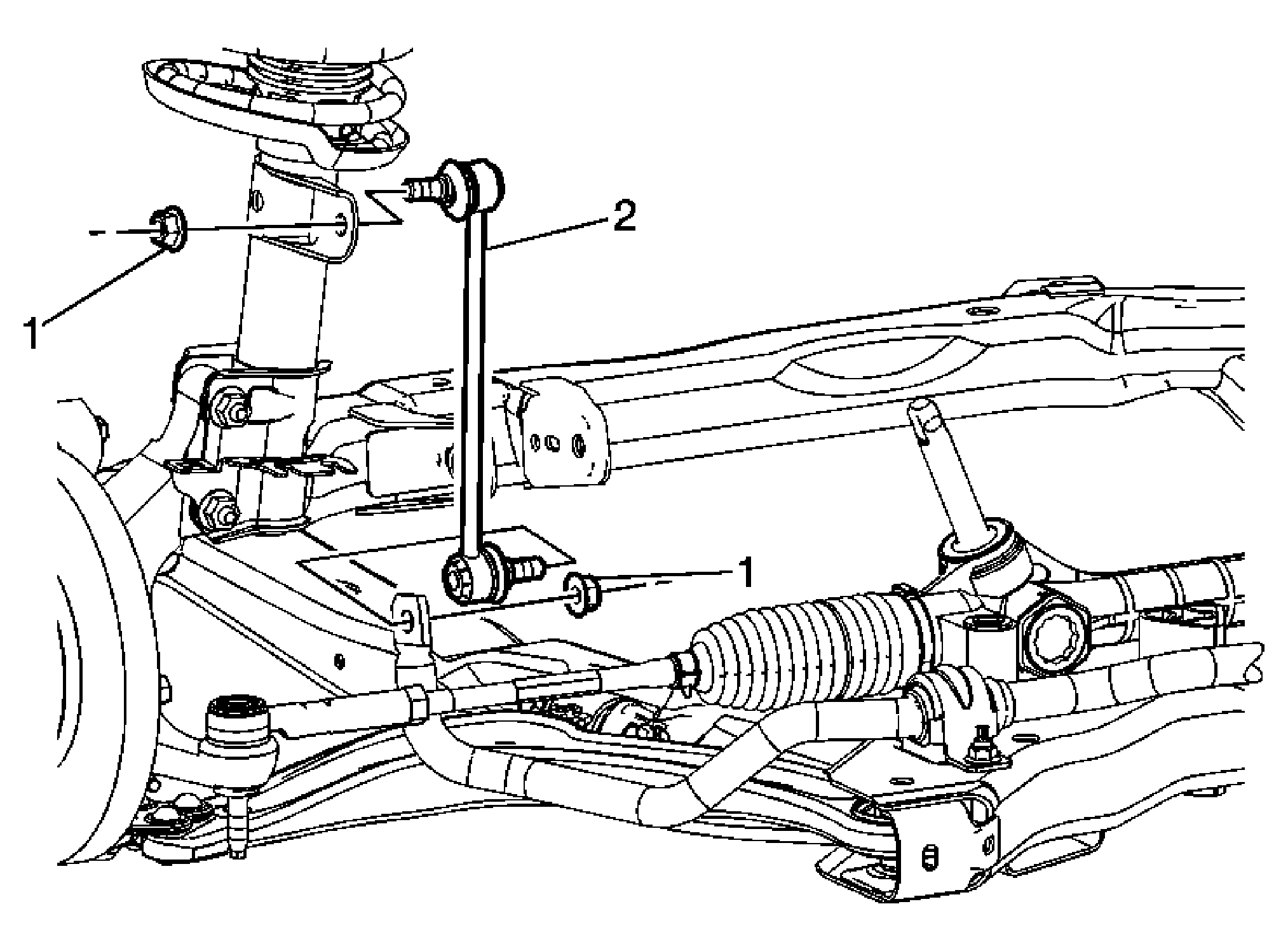

Fig 1: Stabilizer Shaft Link

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the front tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1	Front Stabilizer Shaft Link Nut to Strut CAUTION: Refer to Fastener Caution . Tighten: 65 N.m (48 lb ft)
2	Front Stabilizer Shaft Link Nut to Bar Tighten: 80 N.m (59 lb ft)
3	Front Stabilizer Shaft Link
