Stabilizer Shaft Insulator Replacement (FE5)
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

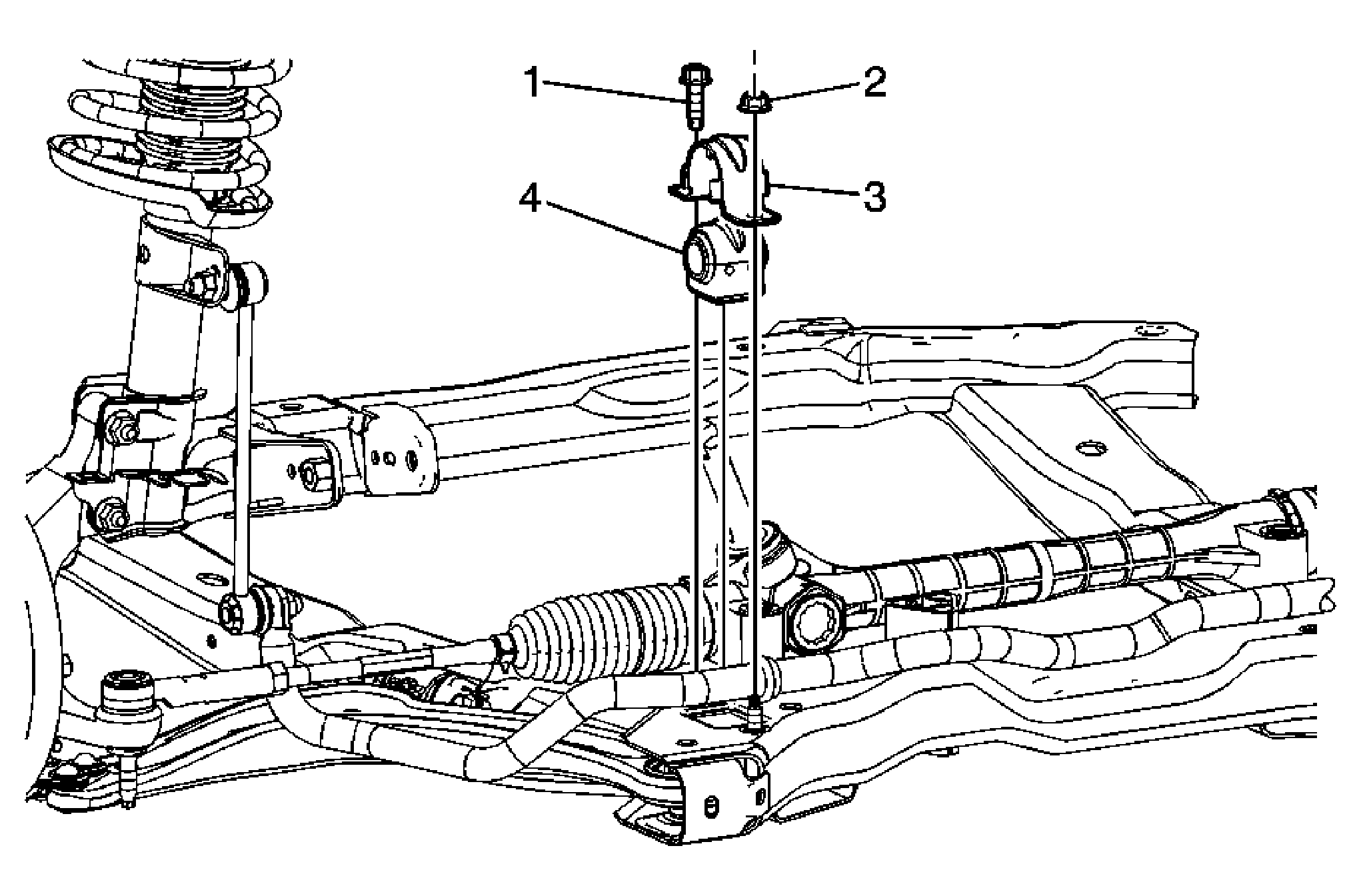

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . |
|
| 1 | Front Stabilizer Shaft Clamp Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 50 N.m (37 lb ft) |
| 2 | Front Stabilizer Shaft Clamp Nut Tighten: 50 N.m (37 lb ft) |
| 3 | Front Stabilizer Shaft Clamp |
| 4 | Front Stabilizer Shaft Insulator Tip: Place the cut line of the insulator facing the rear of the vehicle. |
