Front Wheel Bearing and Hub Replacement (L61/LE5)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

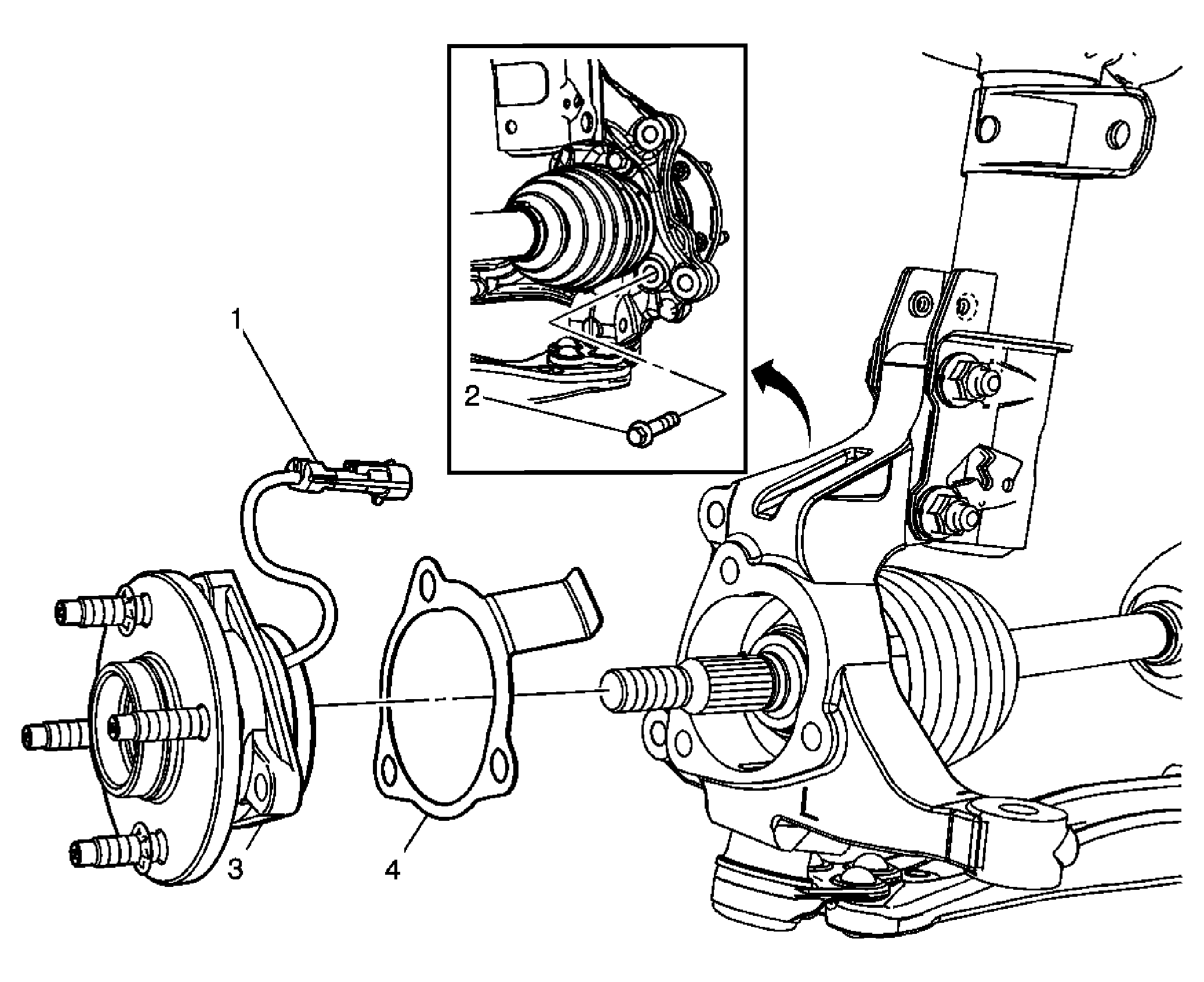

Fig 1: Identifying Front Wheel Bearing & Hub

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . Remove the brake rotor assembly. Refer to Front Brake Rotor Replacement (Without RPO LNF) . Remove the wheel drive shaft assembly from the knuckle. Refer to Wheel Drive Shaft Replacement .
1	Speed Sensor Electrical Connector
2	Wheel Bearing/Hub Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 115 N.m (85 lb ft)
3	Wheel Bearing/Hub Assembly
4	Wheel Bearing/Hub Spacer
