Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

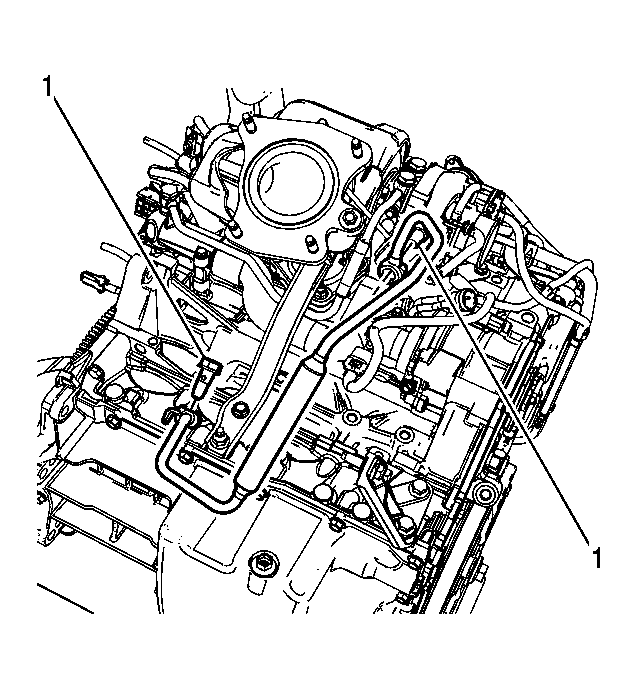

    Fig 1: Turbocharger Oil Feed Pipe Bolts And Pipe
    GM2003826Courtesy of GENERAL MOTORS CORP.
  1. Install NEW gaskets onto the turbocharger oil feed pipe fittings.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the turbocharger oil feed pipe and bolts (1).

    Tighten:  Tighten the bolts to 20 N.m (15 lb ft).

  3. Install the thermostat housing. Refer to Engine Coolant Thermostat Housing Replacement (LNF) .
