Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

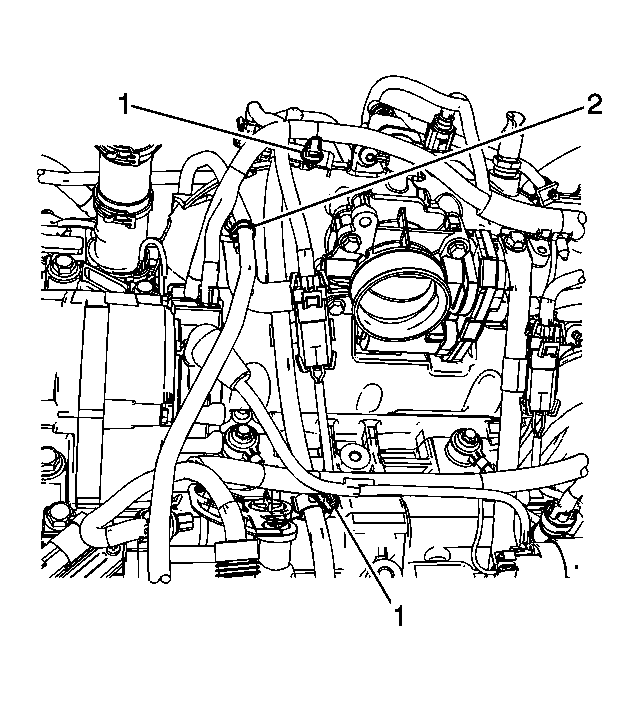

    Fig 1: Oil Level Indicator Tube And Bracket
    GM2003955Courtesy of GENERAL MOTORS CORP.
  1. Remove the charge air cooler (CAC) outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .
  2. Remove two wire harness clips (1) from the oil level indicator tube bracket.
  3. Remove the vacuum hose (2) from the oil level indicator tube.

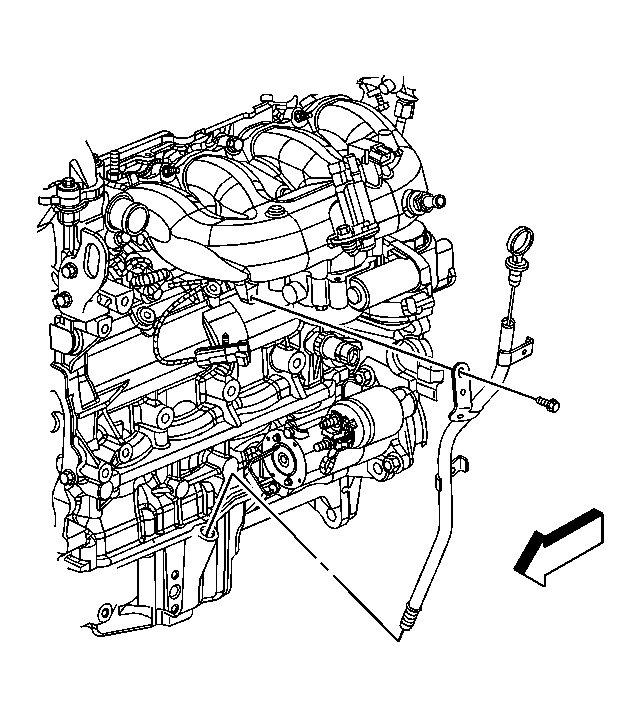

    4. Fig 2: Oil Level Indicator & Tube
    GM1717518Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil level indicator tube bolt.
  5. Remove the oil level indicator tube and indicator.
