Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

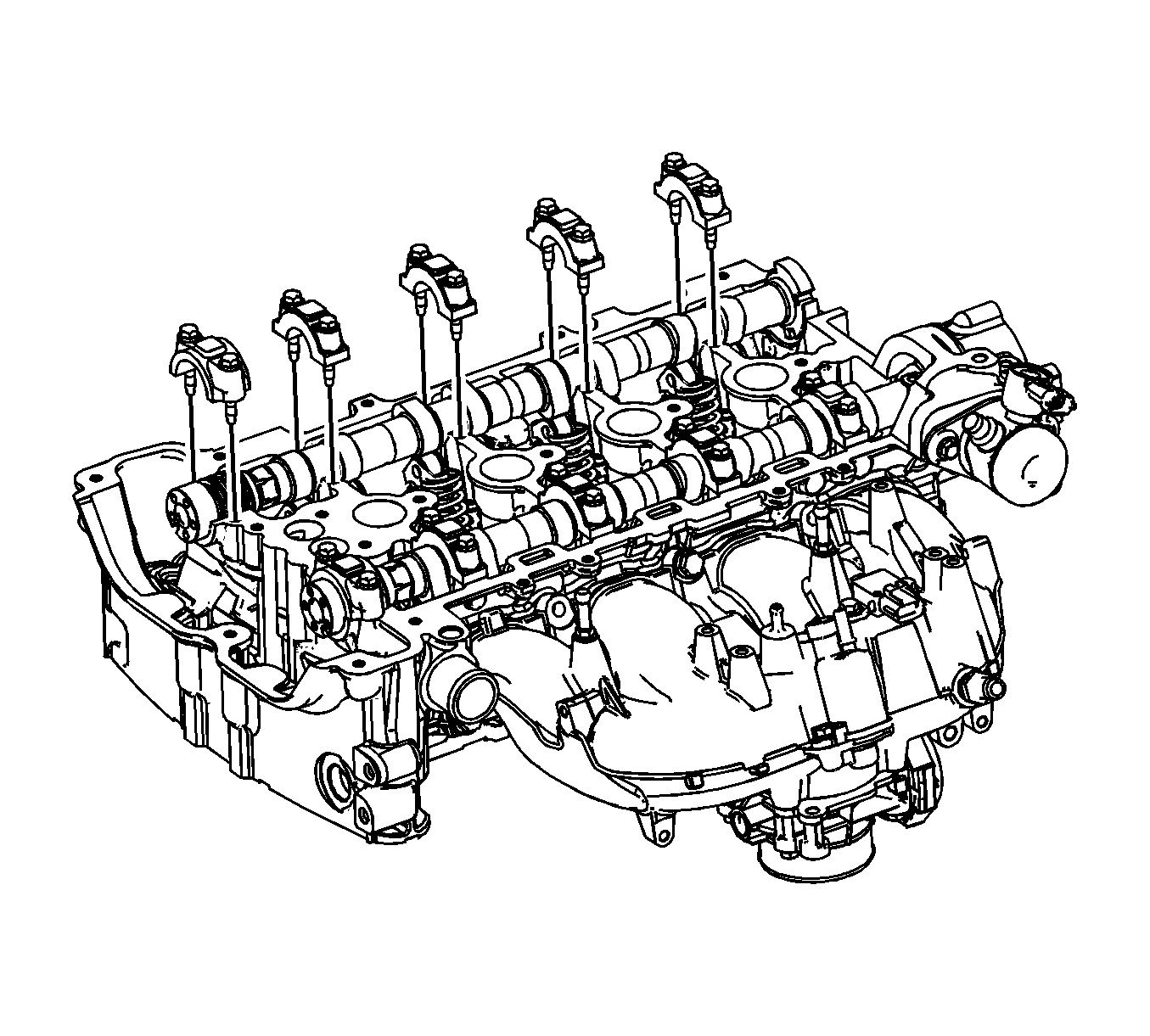

    Fig 1: Camshaft Bearing Caps
    GM1826078Courtesy of GENERAL MOTORS CORP.
  1. Remove the camshaft position exhaust actuator. Refer to Camshaft Position Exhaust Actuator Replacement .
    2. NOTE: Remove each bolt on each cap one turn at a time until there is no spring tension pushing on the camshaft.
  2. Mark the camshaft bearing caps to ensure they are installed in the same position.
  3. Remove the camshaft bearing cap bolts and cap.

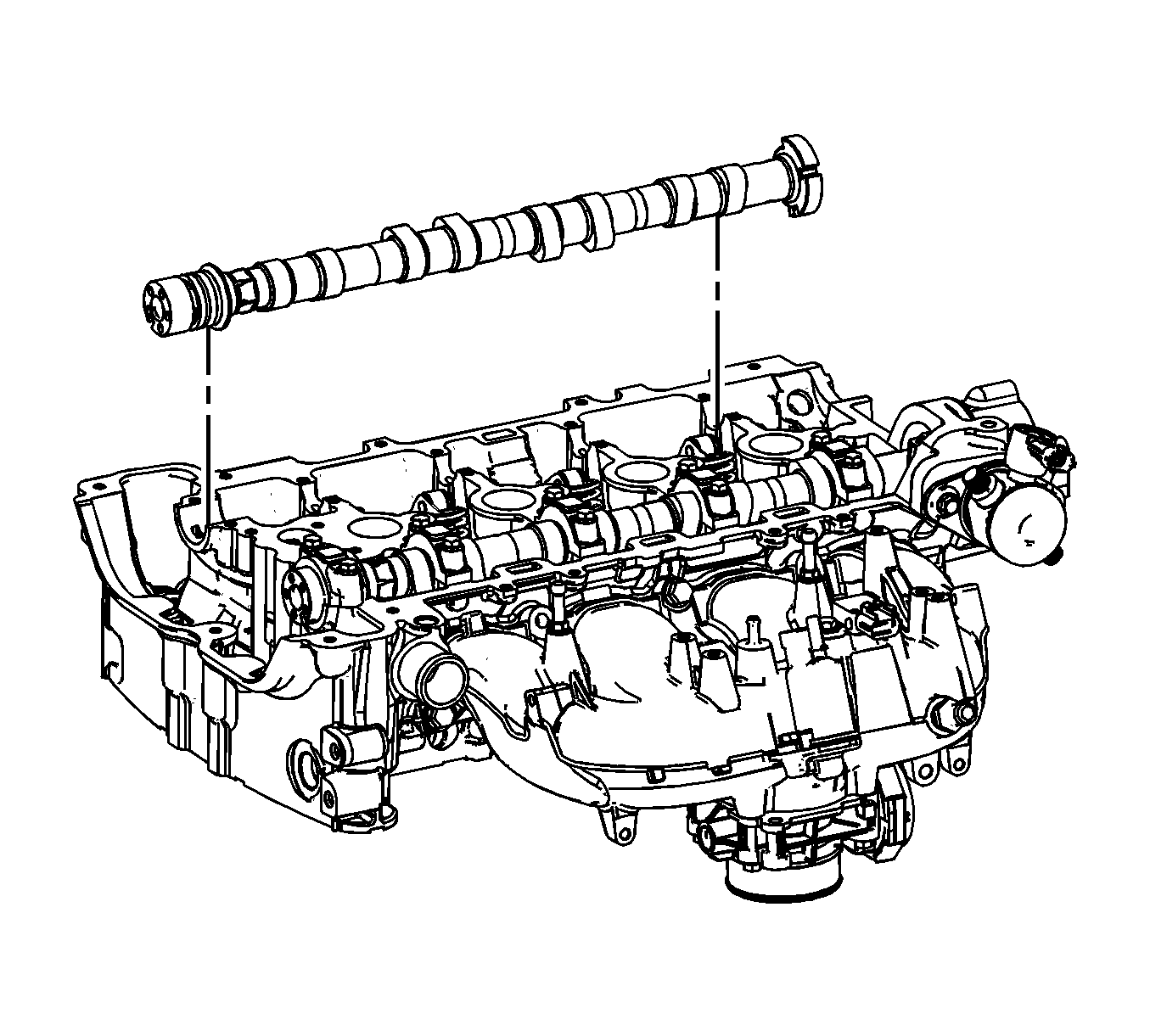

    4. Fig 2: Exhaust Camshaft
    GM1826081Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust camshaft.

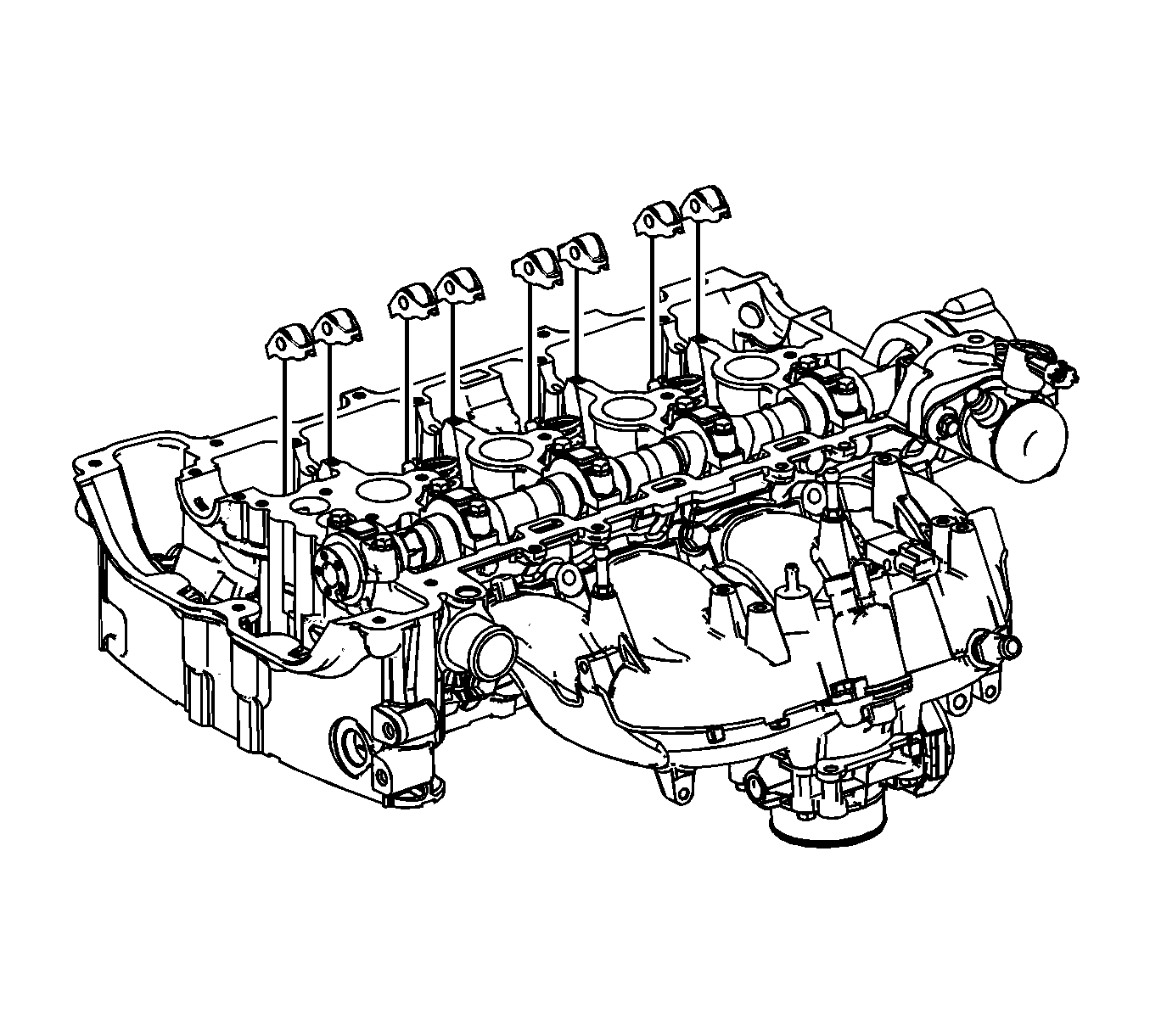

    5. Fig 3: Valve Rocker Arms
    GM1826082Courtesy of GENERAL MOTORS CORP.
    NOTE: Keep all of the rocker arms and hydraulic valve lash adjusters in order so that they can be reinstalled in their respective locations.
  5. Remove the valve rocker arms.
    6. Fig 4: View Of Hydraulic Element Lash Adjusters
    GM412197Courtesy of GENERAL MOTORS CORP.
  6. Remove the hydraulic valve lash adjusters.
