Installation Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

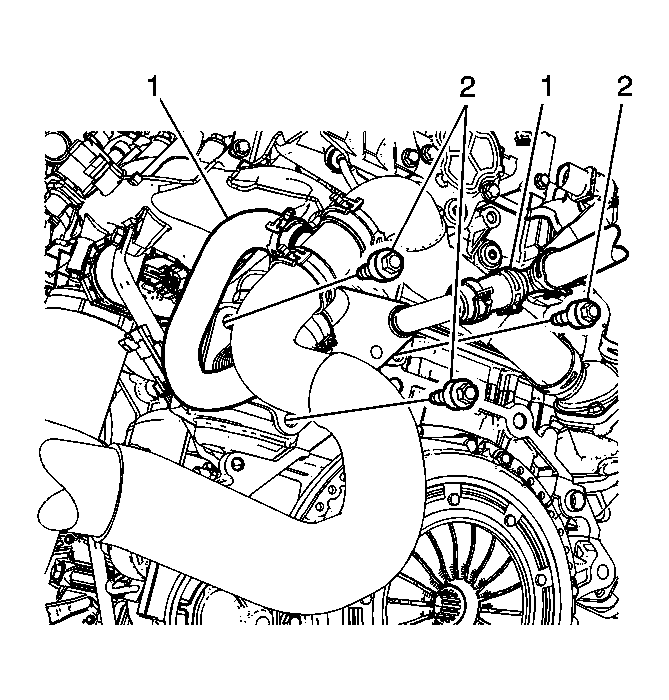

    Fig 1: Identifying Oil Cooler Hoses & Bolts
    GM2035289Courtesy of GENERAL MOTORS CORP.
  1. Install the oil cooler.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the oil cooler bolts (2) and tighten to 22 N.m (16 lb ft).
  3. Connect the oil cooler hoses (1).
  4. Fill the charged air cooling system. Refer to Cooling System Draining and Filling (Static Fill LNF) .
