Removal Procedure

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine mount. Refer to Engine Mount Replacement .

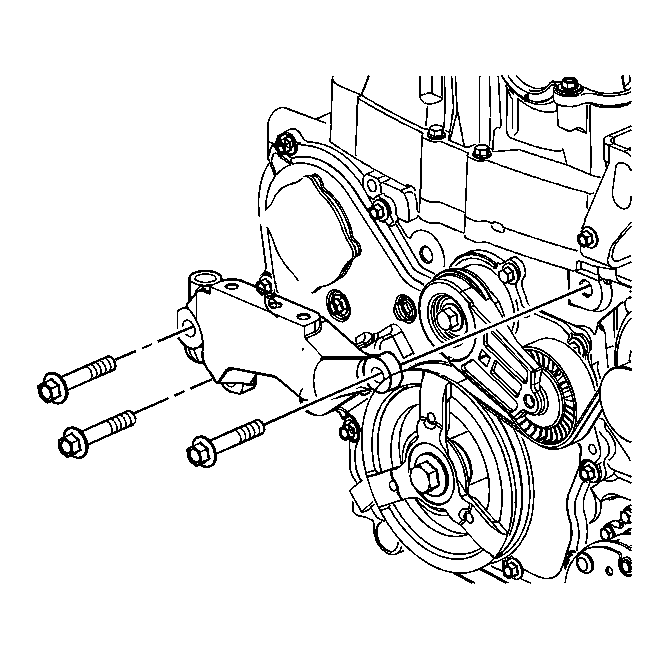

    2. Fig 1: View Of Intermediate Bracket
    GM851554Courtesy of GENERAL MOTORS CORP.
  2. Remove the intermediate bracket to engine bolts.
  3. Remove the intermediate bracket from the engine.
