Drive Belt Tensioner Replacement
WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

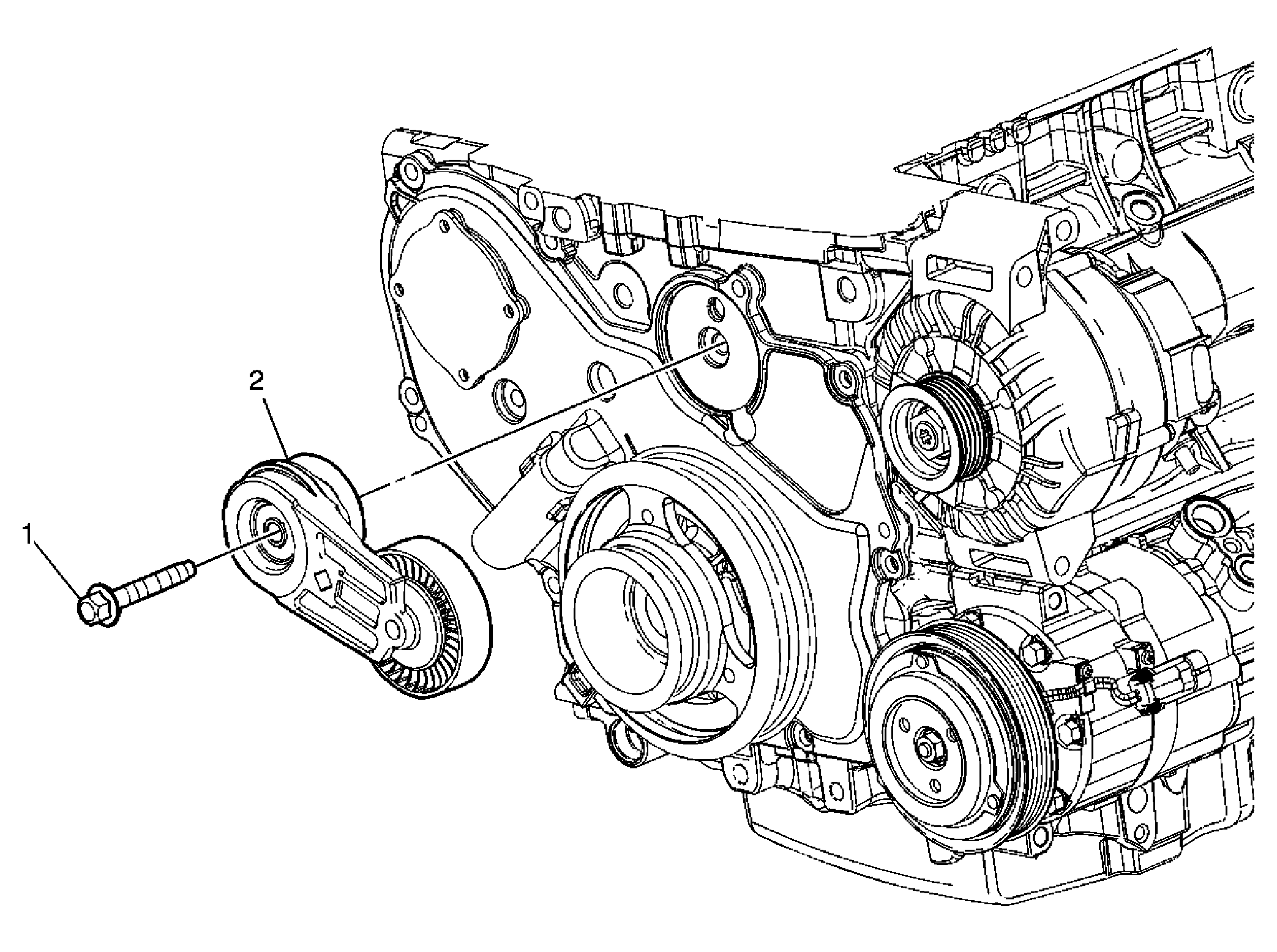

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the drive belt. Refer to Drive Belt Replacement . |
|
| 1 | Drive Belt Tensioner Bolt
CAUTION:
Refer to Fastener Caution
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Drive Belt Tensioner |
