Water Pump Removal

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

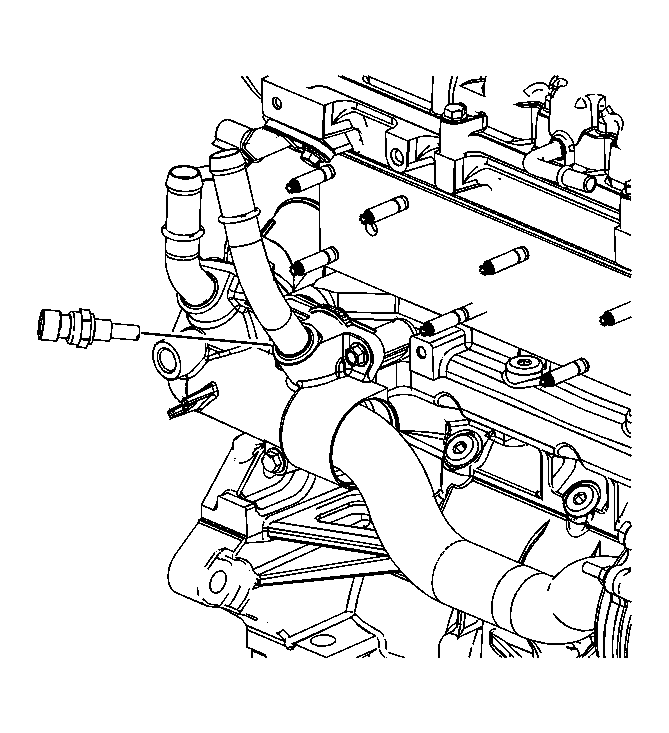

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Remove the engine coolant temperature sensor.

Fig 2: Thermostat Housing And Water Feed Pipe

Courtesy of GENERAL MOTORS CORP.

Remove the thermostat and water feed pipe retaining bolts.

IMPORTANT: Twist the water feed pipe while pulling to remove it from the water pump cover.

Remove the thermostat housing and water feed pipe from the water pump cover.

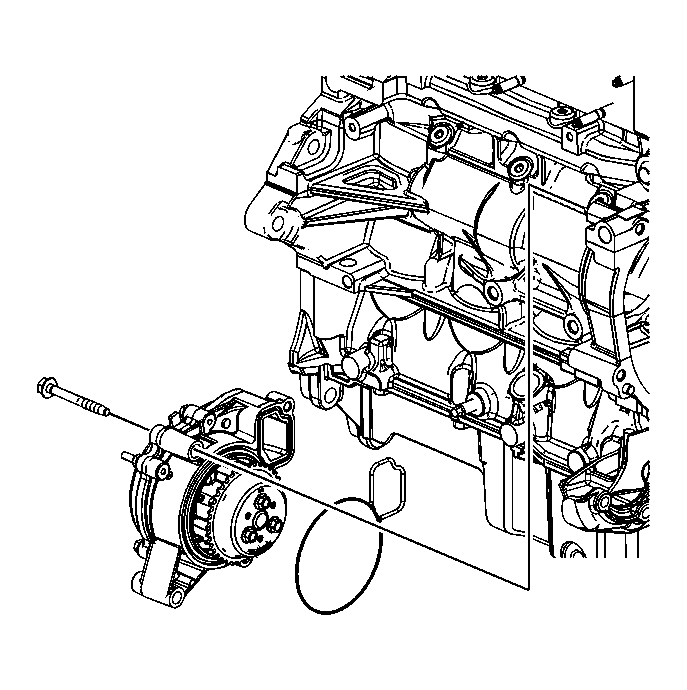

Fig 3: Water Pump Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the water pump retaining bolts. Be sure to remove the bolt that goes through the front of the engine block.
Remove the water pump assembly.
