Turbocharger Removal

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

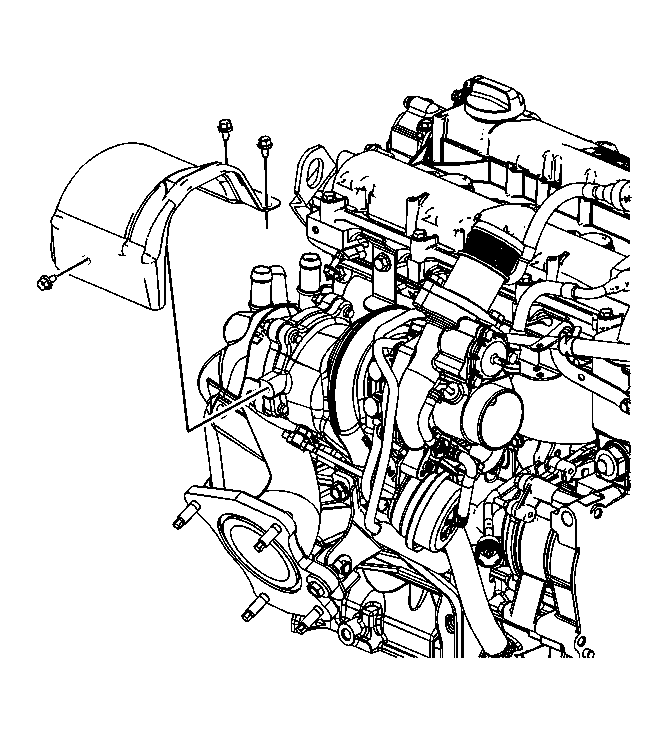

    Fig 1: Identifying Turbocharger Heat Shield
    GM2046137Courtesy of GENERAL MOTORS CORP.
  1. Remove the turbocharger heat shield bolts.
  2. Remove the turbocharger heat shield.

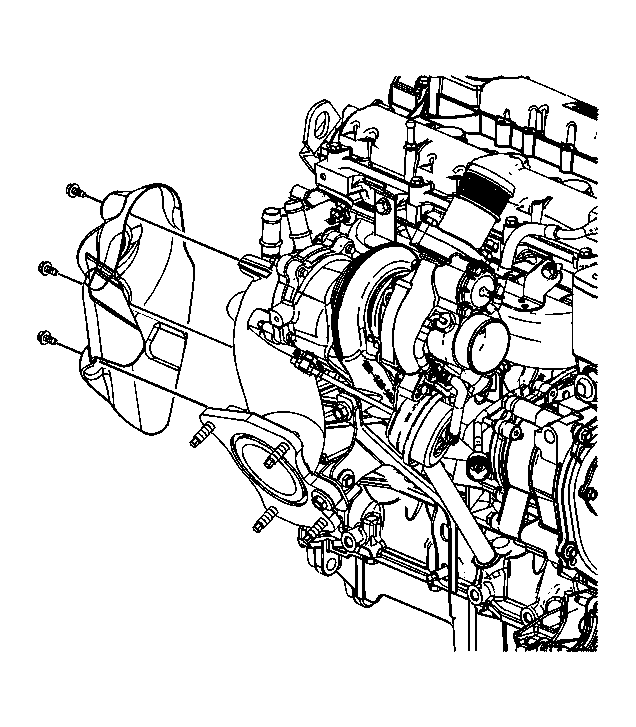

    3. Fig 2: Identifying Turbocharger Heat Shield & Bolts
    GM2046250Courtesy of GENERAL MOTORS CORP.
  3. Remove the turbocharger exhaust pipe heat shield bolts.
  4. Remove the turbocharger exhaust pipe heat shield.

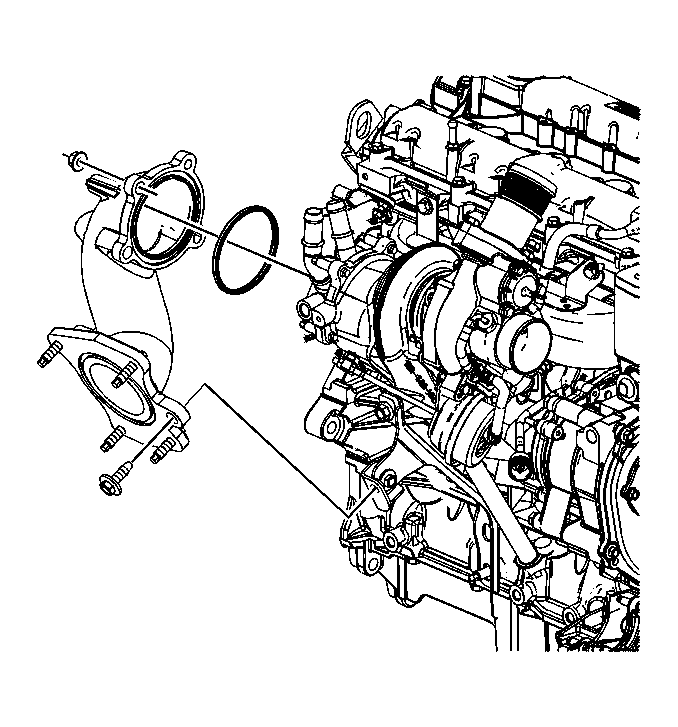

    5. Fig 3: Identifying Turbocharger Exhaust Pipe & Seal
    GM2046138Courtesy of GENERAL MOTORS CORP.
  5. Remove the turbocharger exhaust pipe nuts and bolt.
  6. Remove the turbocharger exhaust pipe.
  7. Remove the turbocharger exhaust pipe seal.

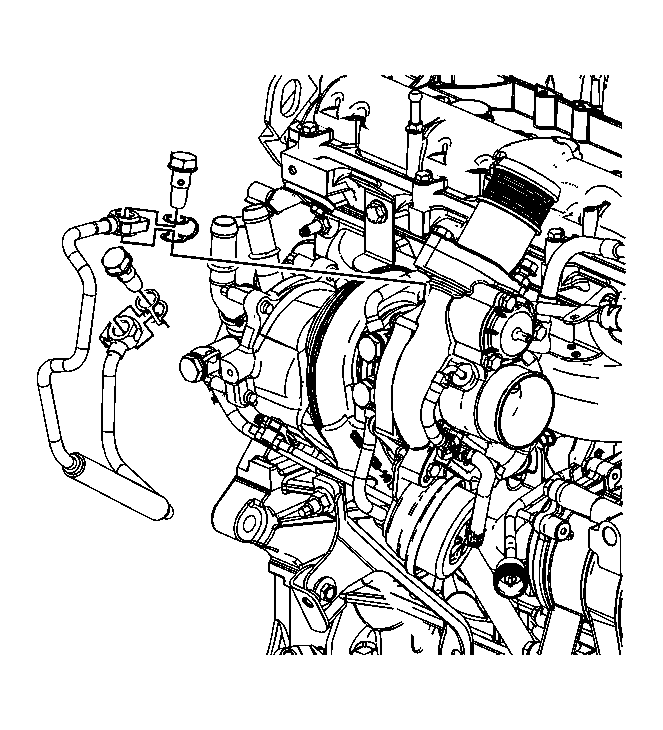

    8. Fig 4: Identifying Turbocharger Oil Feed Pipe
    GM2046139Courtesy of GENERAL MOTORS CORP.
    CAUTION: Do not twist the turbocharger oil feed pipe. Twisting of the feed pipe will result in the collapse and deformation of the plastic pipe, restricting oil flow and causing turbocharger damage. During turbocharger replacement, gently push the oil feed pipe towards the front of the engine to clear the turbocharger. Assistance may be required to keep the pipes clear of the turbocharger during removal or installation.
  8. Remove the turbocharger oil feed pipe bolts.
  9. Remove the turbocharger oil feed pipe gaskets.
  10. Remove the turbocharger oil feed pipe.

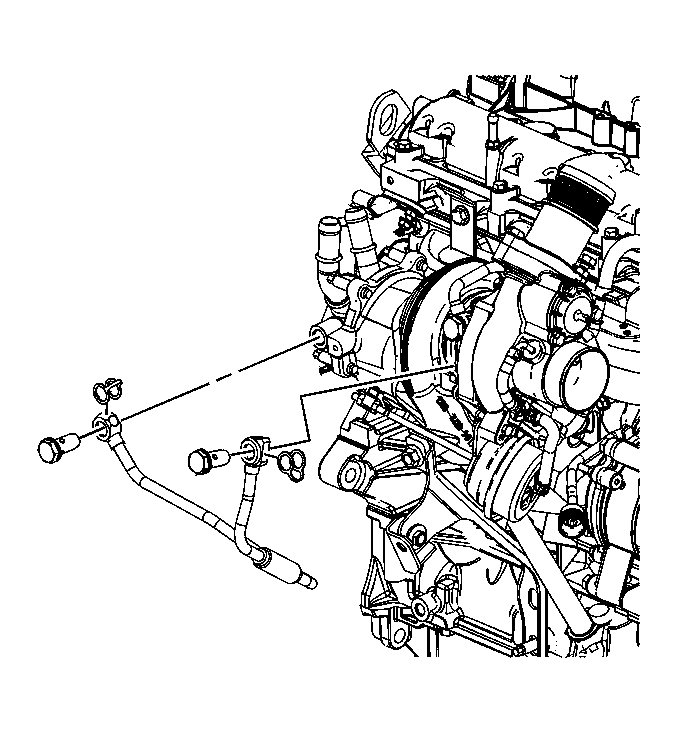

    11. Fig 5: View Of Turbocharger Coolant Return Pipe
    GM2046140Courtesy of GENERAL MOTORS CORP.
  11. Remove the turbocharger coolant return pipe bolts.
  12. Remove the turbocharger coolant return pipe gaskets.
  13. Remove the turbocharger coolant return pipe.

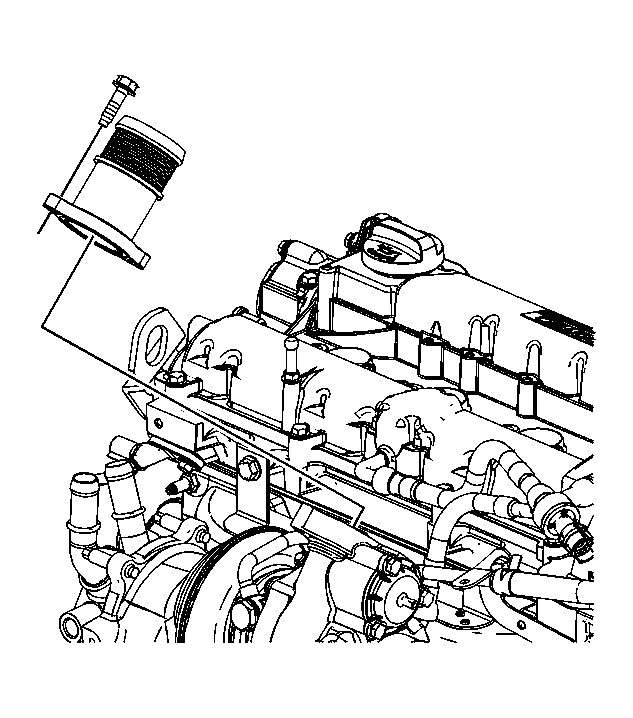

    14. Fig 6: View Of Turbocharger Coolant Outlet Pipe
    GM2045495Courtesy of GENERAL MOTORS CORP.
  14. Remove the turbocharger air cooler outlet pipe bolts.
  15. Remove the turbocharger air cooler outlet pipe.

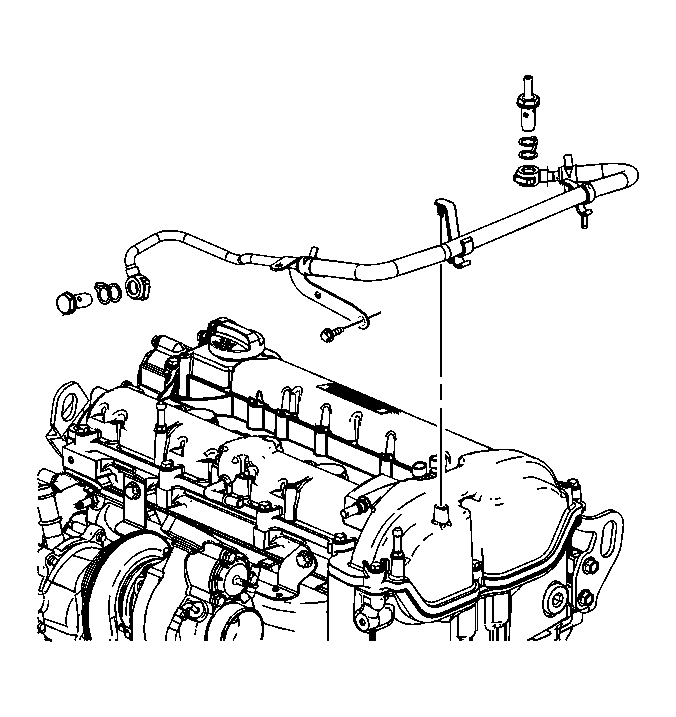

    16. Fig 7: Turbocharger Coolant Feed Pipe
    GM1769641Courtesy of GENERAL MOTORS CORP.
  16. Remove the turbocharger coolant feed pipe bolts.
  17. Remove the turbocharger coolant feed pipe gaskets.
  18. Remove the turbocharger coolant feed pipe.

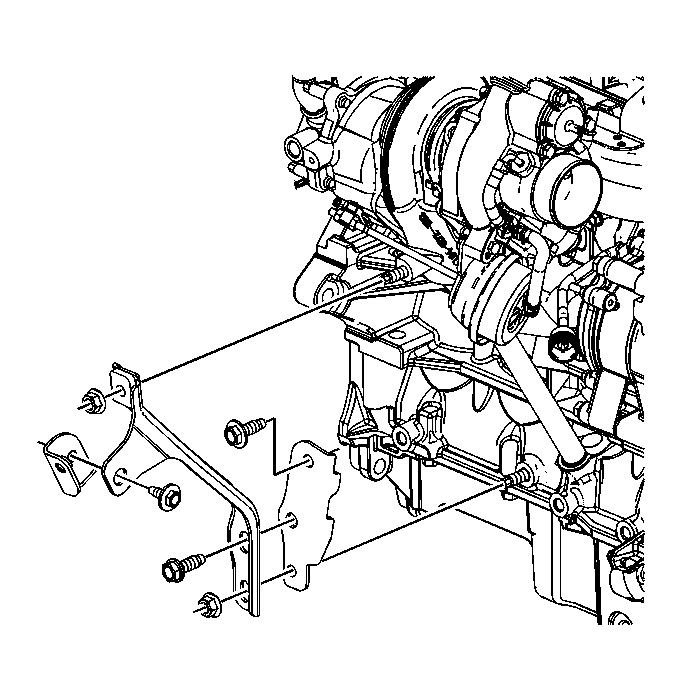

    19. Fig 8: View Of Turbocharger Brace Bracket & Bolts
    GM2045496Courtesy of GENERAL MOTORS CORP.
  19. If necessary, remove the turbocharger brace bracket bolt and turbocharger brace bracket from the turbocharger brace.
  20. Remove the turbocharger brace upper and lower nuts.
  21. Remove the turbocharger brace bolt.
  22. Remove the turbocharger brace.
  23. Remove the turbocharger brace bracket bolt.
  24. Remove the turbocharger brace bracket.

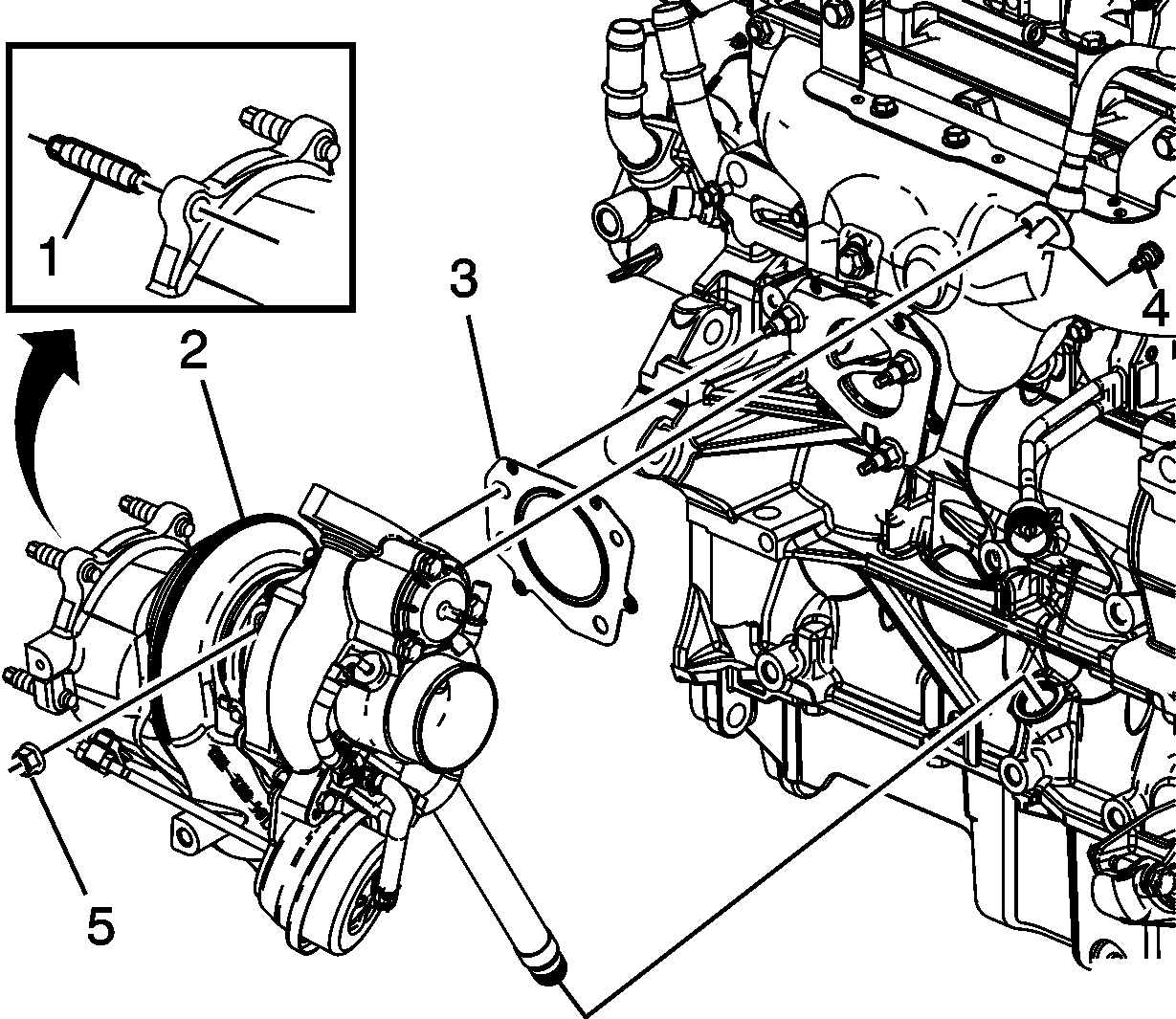

    25. Fig 9: Turbocharger Assembly
    GM1769653Courtesy of GENERAL MOTORS CORP.
    NOTE: The PCV hose should not be disconnected from the camshaft cover. The PCV hose and the camshaft cover cannot be serviced individually.
  25. Remove the PCV hose fitting bolt at the turbocharger.
  26. Remove the PCV hose fitting from the turbocharger with the hose still attached to the camshaft cover.
  27. Remove the turbocharger nuts (1).
  28. Remove the turbocharger (2) with oil return pipe.
  29. Remove the turbocharger gasket (3).

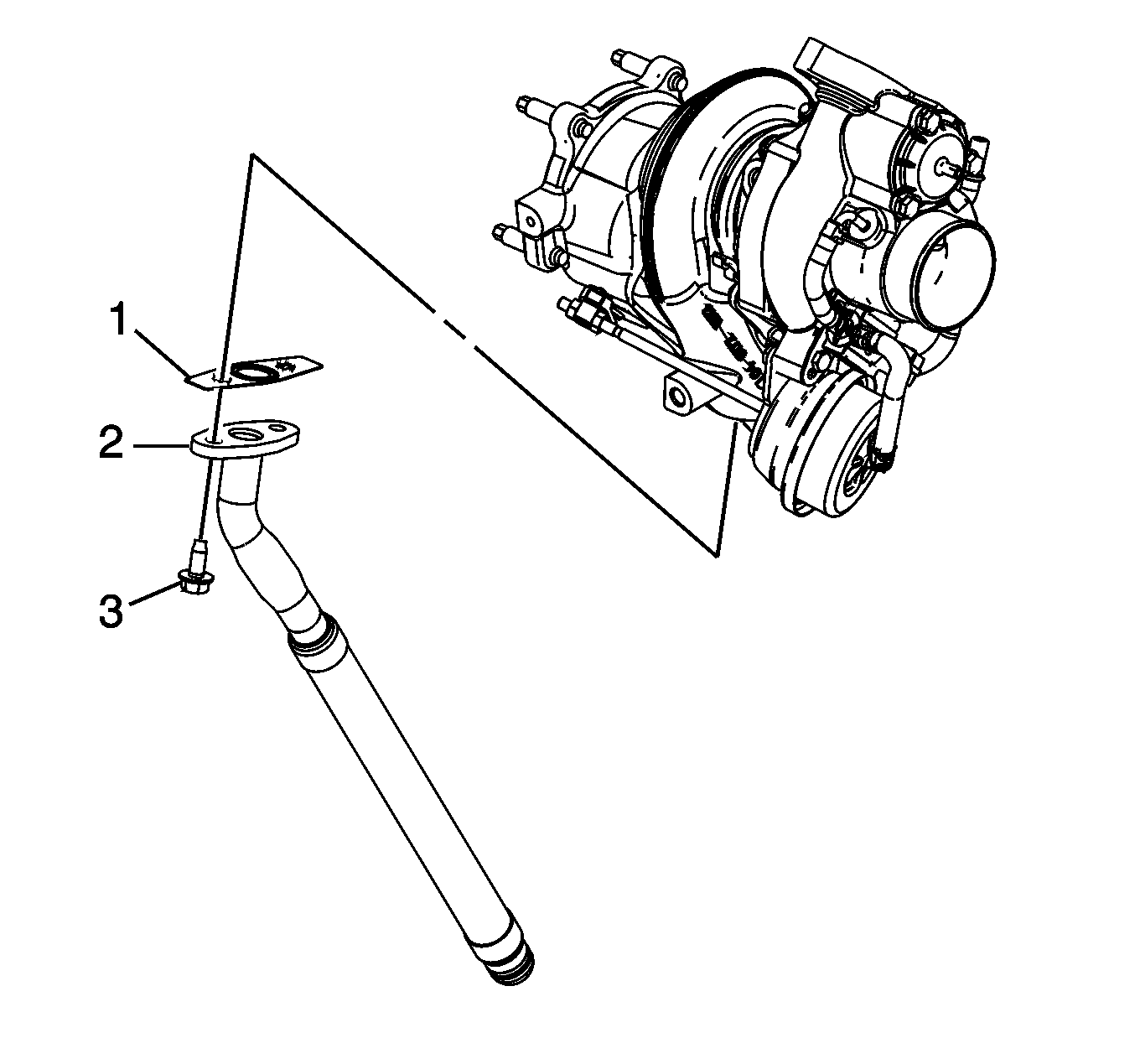

    30. Fig 10: Turbocharger Oil Return Pipe
    GM1769646Courtesy of GENERAL MOTORS CORP.
  30. Remove the turbocharger oil return pipe bolts (3).
  31. Remove the turbocharger oil return pipe (2).
  32. Remove and discard the turbocharger oil return pipe gasket (1).
