Starter Installation

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

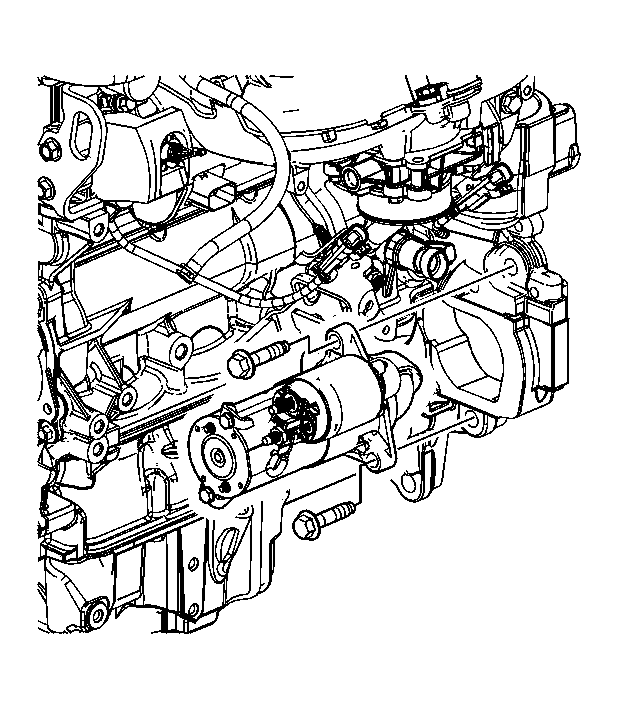

    Fig 1: Starter
    GM1825084Courtesy of GENERAL MOTORS CORP.
  1. Install the starter.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the starter bolts and tighten to 53 N.m (39 lb ft).
