Oil Level Indicator and Tube Removal

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

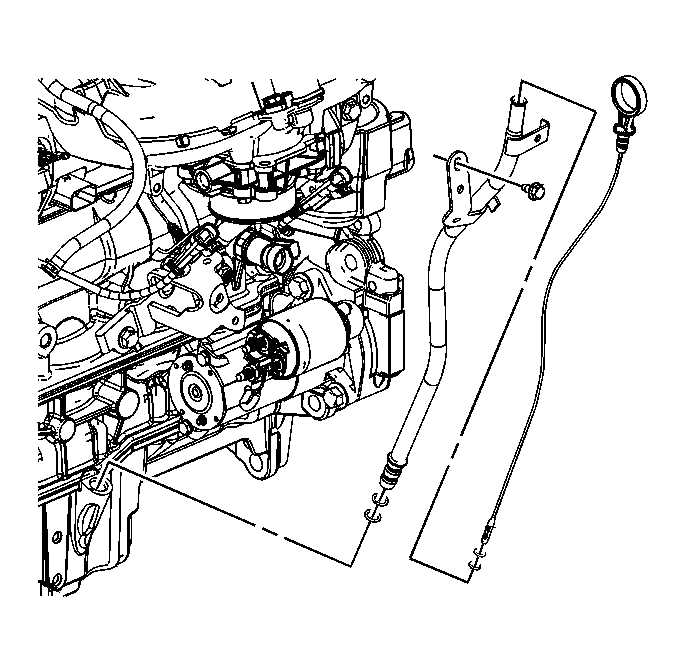

    Fig 1: Oil Level Indicator Tube
    GM1769542Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the knock sensor from the oil level indicator tube.
  2. Remove the electrical wiring harness from the oil level indicator tube.
  3. Remove the oil level indicator tube bracket to the intake manifold bolt.
  4. Remove the oil level indicator and the oil level indicator tube from the oil pan.
  5. Inspect the O-rings for damage. Replace if damaged.
