Engine Oil Cooler Installation

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

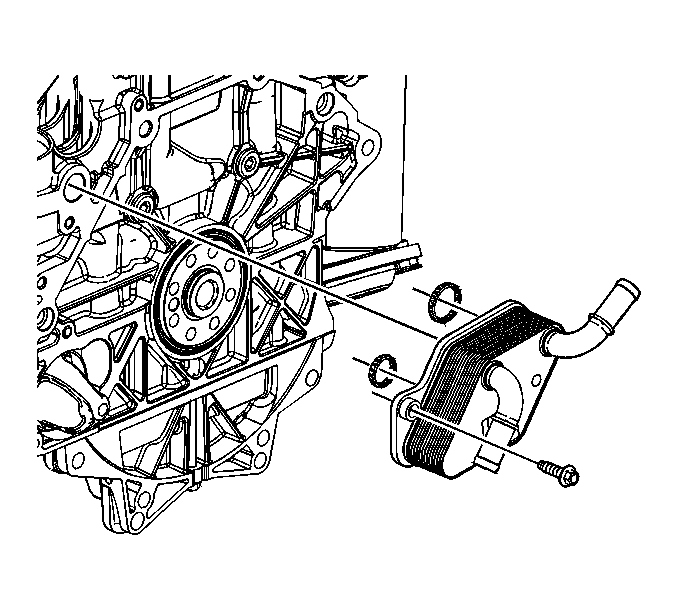

    Fig 1: Oil Cooler
    GM1769545Courtesy of GENERAL MOTORS CORP.
    NOTE: The oil cooler cannot be flushed or otherwise cleaned of contamination. Replace the oil cooler if a mechanical condition is suspected that could cause the oil cooler to be contaminated.
  1. Install the oil cooler.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the oil cooler bolts and tighten to 25 N.m (18 lb ft).
