Engine Flywheel Installation (Automatic Transmission)

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Special Tools

J 43653: Flywheel Holding Tool
J 45059: Angle Meter

For equivalent regional tools, refer to Special Tools .

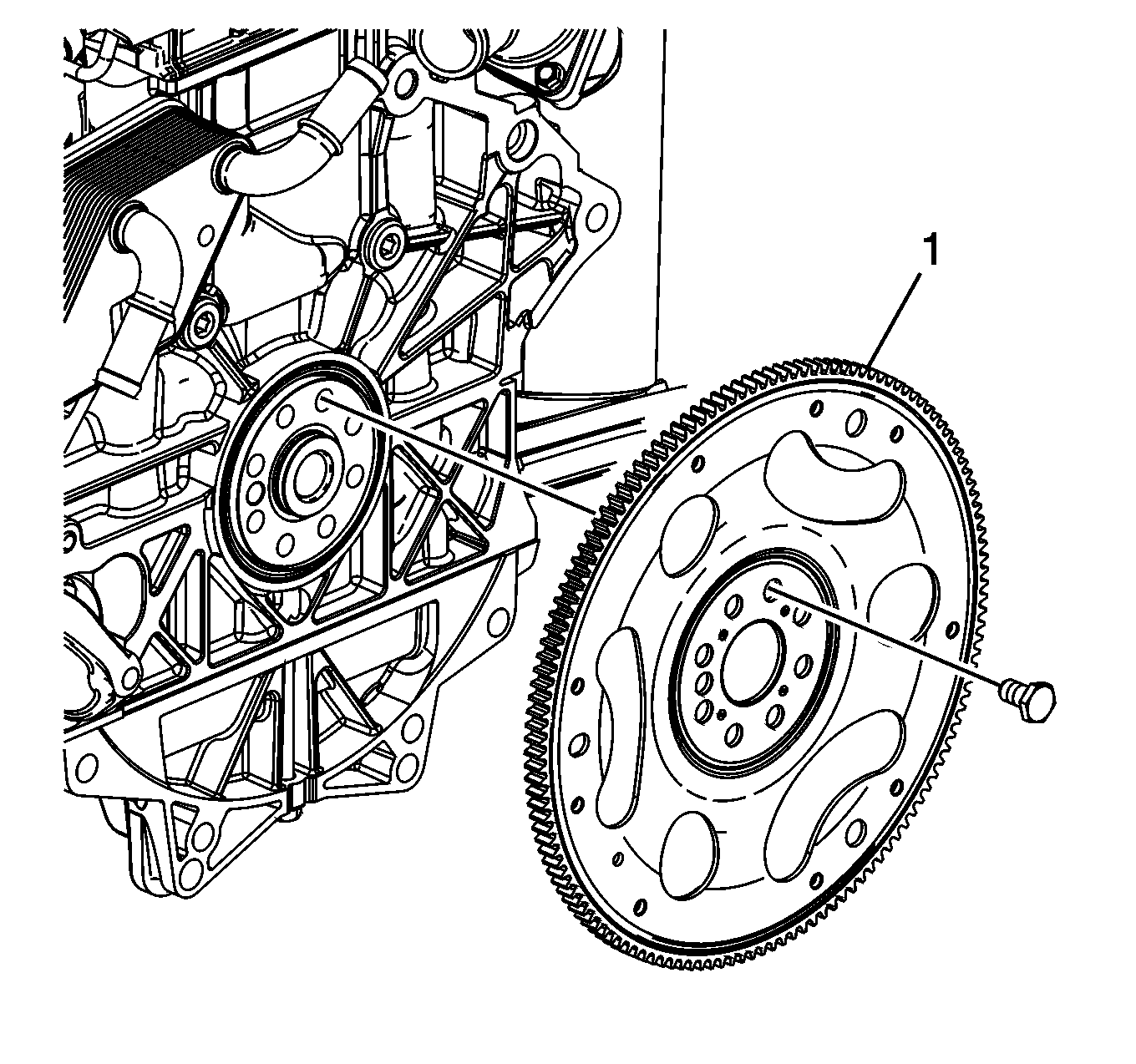

Fig 1: Identifying Engine Flywheel & Automatic Transmission

Courtesy of GENERAL MOTORS CORP.

Install the flywheel (1).
Install the NEW bolts.
Install J 43653: tool in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

CAUTION: Refer to Fastener Caution .

Tighten the flywheel bolts to 53 N.m (39 lb ft), plus 25 degrees, using J 45059: meter.
