Special Tools

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

J 43653 Flywheel Holding Tool

Fig 1: View of Engine Flywheel

Courtesy of GENERAL MOTORS CORP.

Install J 43653 (1) in the starter assembly location, engaging the flywheel, in order to prevent crankshaft rotation.

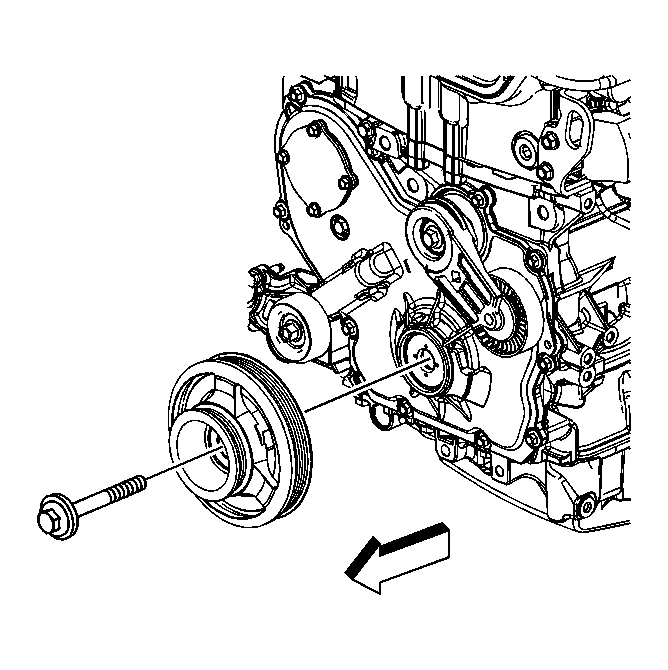

Fig 2: View Of Crankshaft Balancer & Bolt

Courtesy of GENERAL MOTORS CORP.

Remove the balancer retaining bolt and washer. Discard the bolt.
Remove the balancer using a universal removal tool.
