Camshaft Cover Installation

WARNING: This page is about a different car, the 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

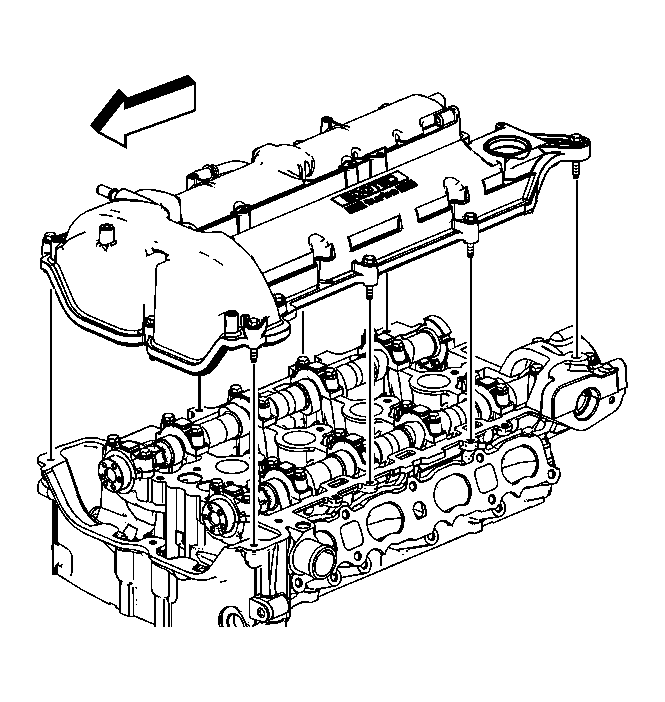

    Fig 1: Camshaft Cover Assembly
    GM1825034Courtesy of GENERAL MOTORS CORP.
  1. Install NEW camshaft cover grommets and camshaft cover bolts if they are serviced with the grommets.
  2. Assemble the camshaft cover and gasket. Ensure that the gasket is located in the retaining groove in the camshaft cover.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the cover on the cylinder head and hand start the bolts.

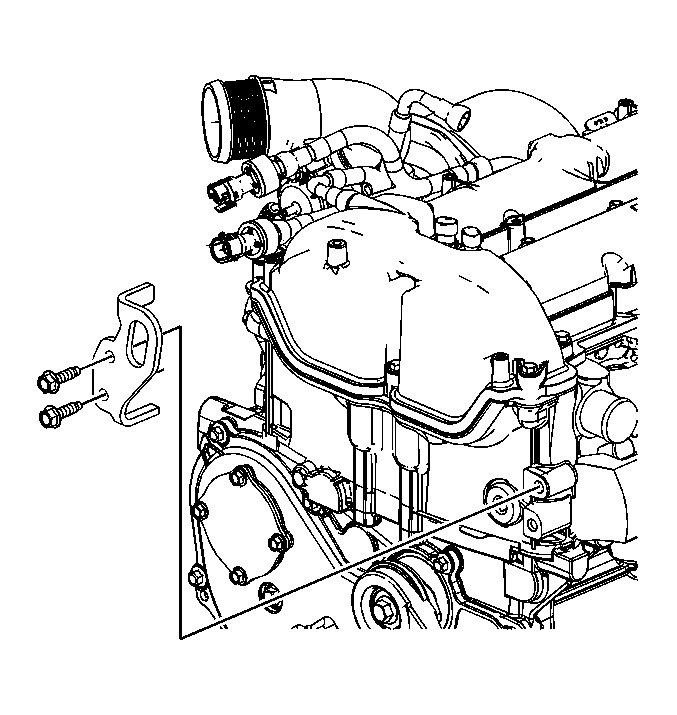

    4. Fig 2: Front Lift Bracket
    GM1769936Courtesy of GENERAL MOTORS CORP.
  4. Install the front lift bracket.
  5. Install the front lift bracket bolts and tighten to 25 N.m (18 lb ft).

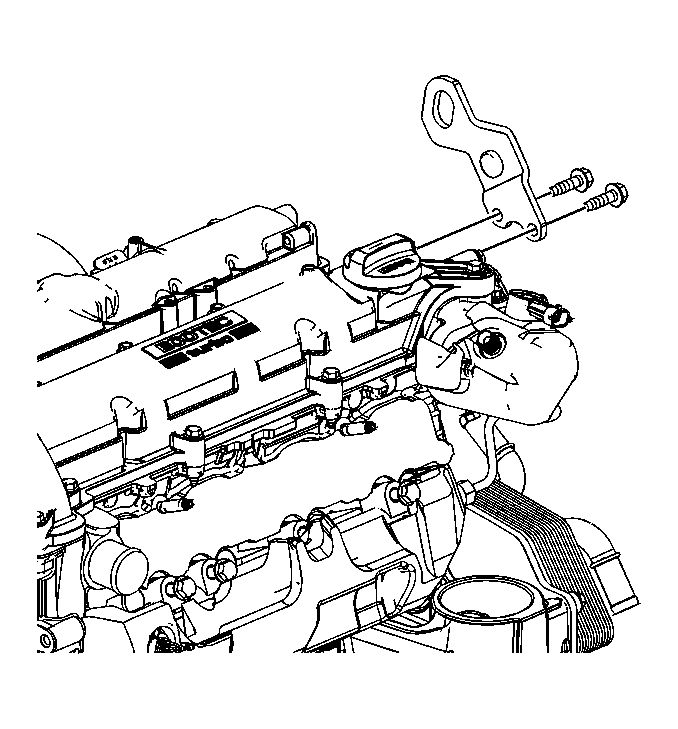

    6. Fig 3: Rear Lift Bracket
    GM1769939Courtesy of GENERAL MOTORS CORP.
  6. Install the rear lift bracket.
  7. Install the rear lift bracket bolts and tighten to 25 N.m (18 lb ft).

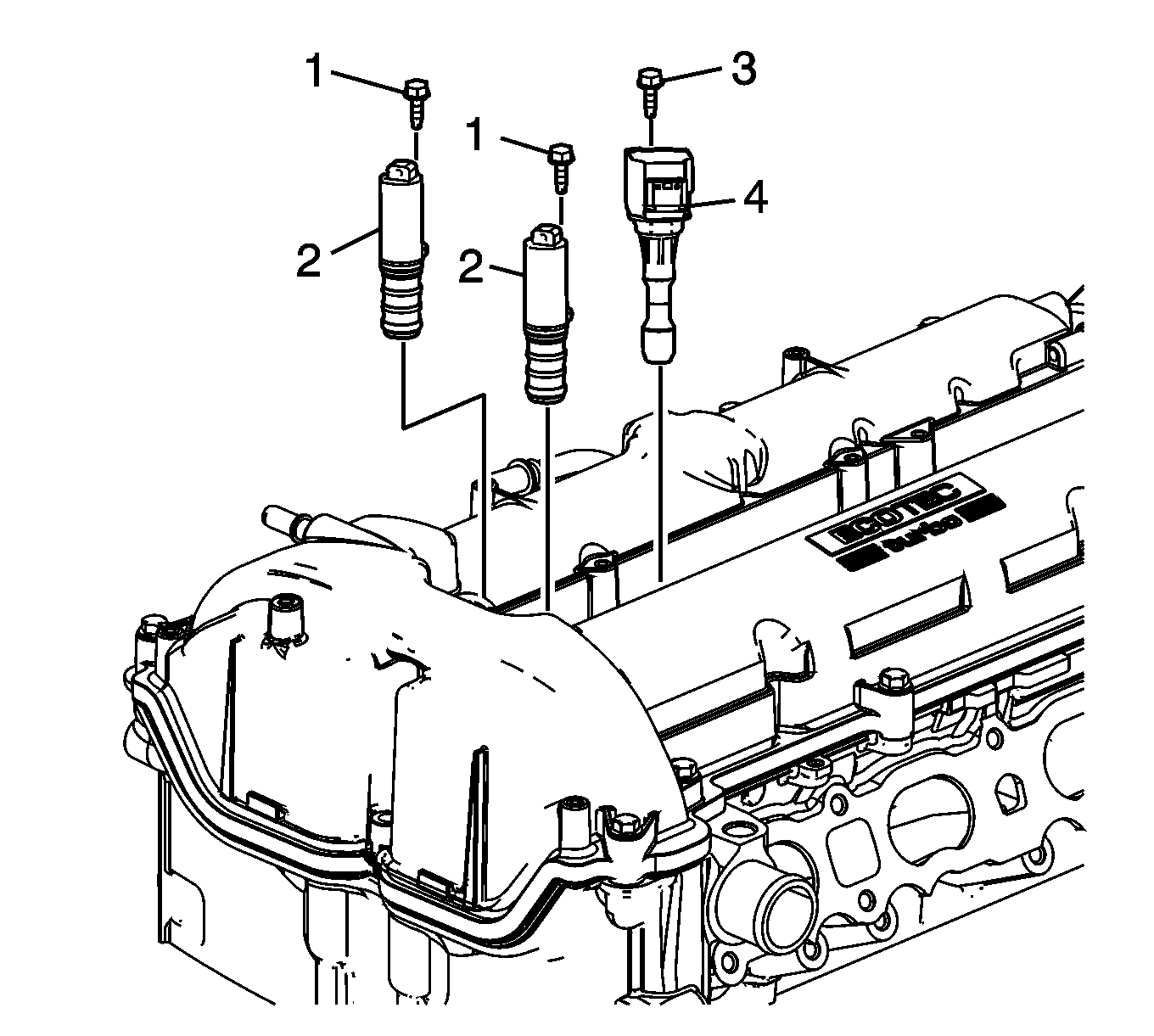

    8. Fig 4: Ignition Coils
    GM1846504Courtesy of GENERAL MOTORS CORP.
  8. Install the ignition coils (4) and tighten the bolts (3) to 10 N.m (89 lb in).
  9. Tighten the camshaft cover bolts to 10 N.m (89 lb in).
    10. NOTE: The solenoid valves are marked intake and exhaust.
  10. Install the camshaft position actuator solenoid valves (2).
  11. Install the camshaft position actuator solenoid valve bolts (1) and tighten to 10 N.m (89 lb in).
