Section 88 (Battery, Charging System And Starting System)
>>
Schematic and Routing Diagrams
>>
Starting and Charging Schematics
Starting and Charging Schematics
WARNING:
This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

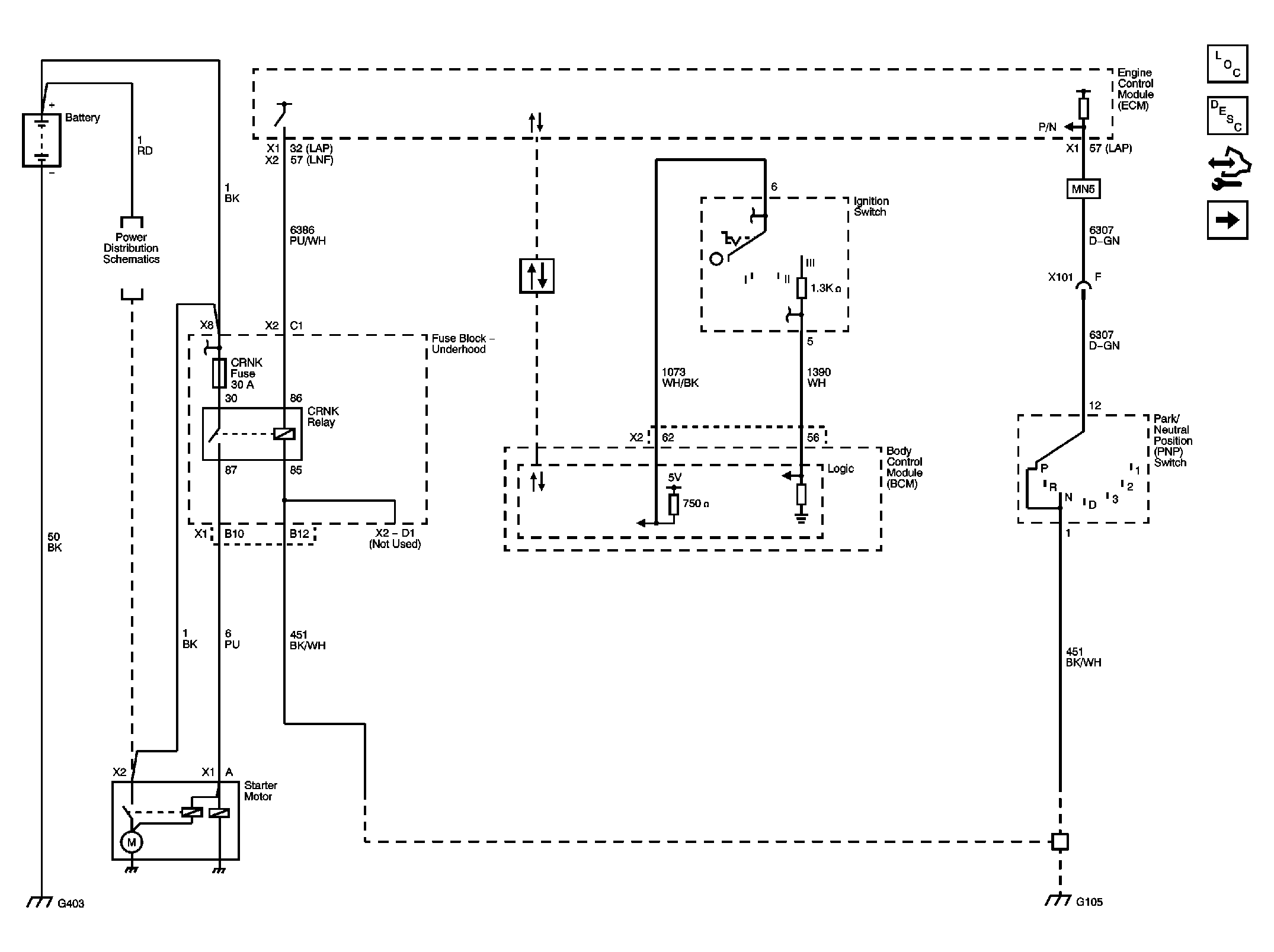

Fig 1: Starting
Courtesy of GENERAL MOTORS CORP.

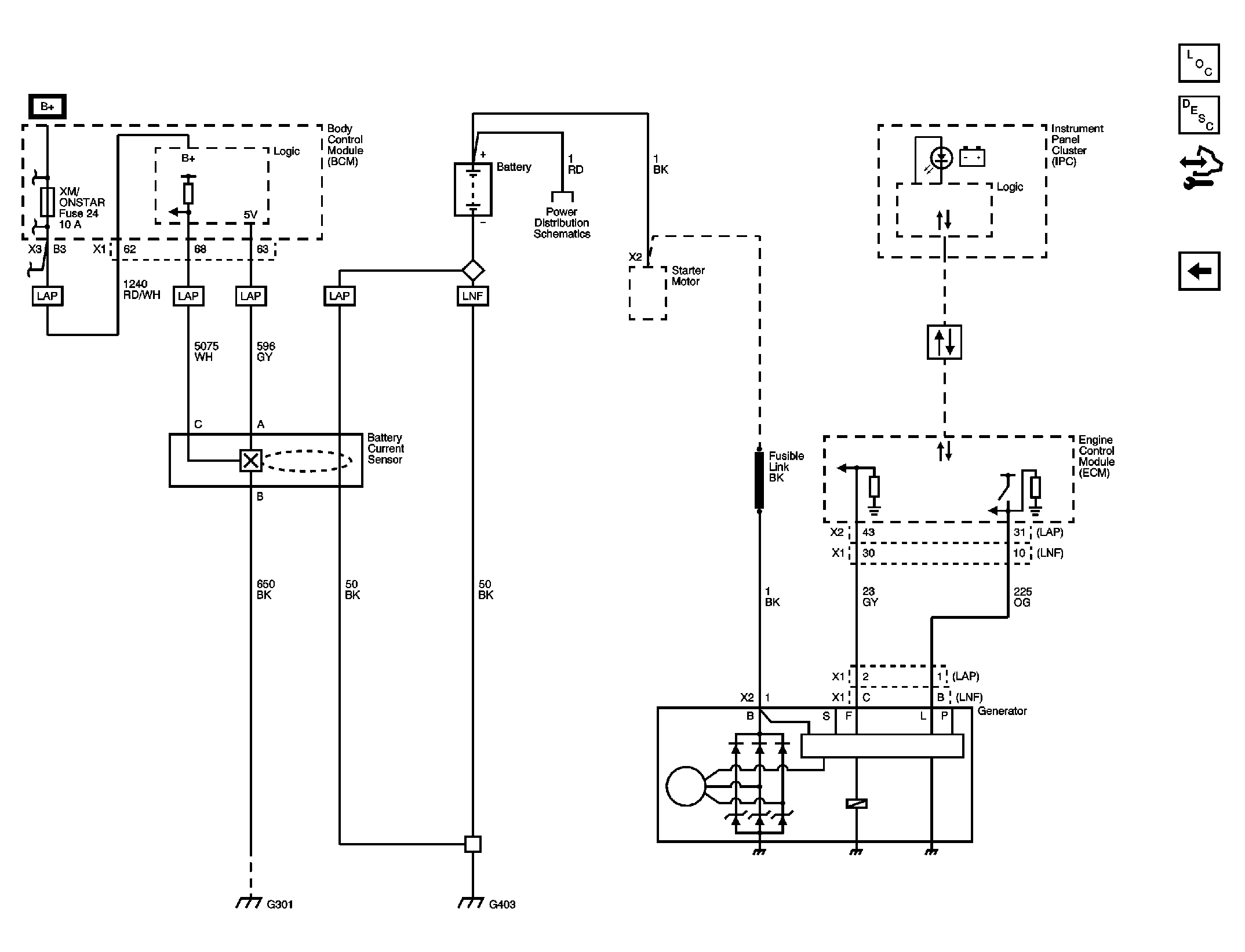

Fig 2: Charging
Courtesy of GENERAL MOTORS CORP.
