Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: View Of Negative Battery Cable

Courtesy of GENERAL MOTORS CORP.

Install the positive battery cable (1) to the conduit.

Fig 2: Tape On Positive/Negative Battery Cable Conduit

Courtesy of GENERAL MOTORS CORP.

Wrap tape around the positive/negative battery cable conduit (1).

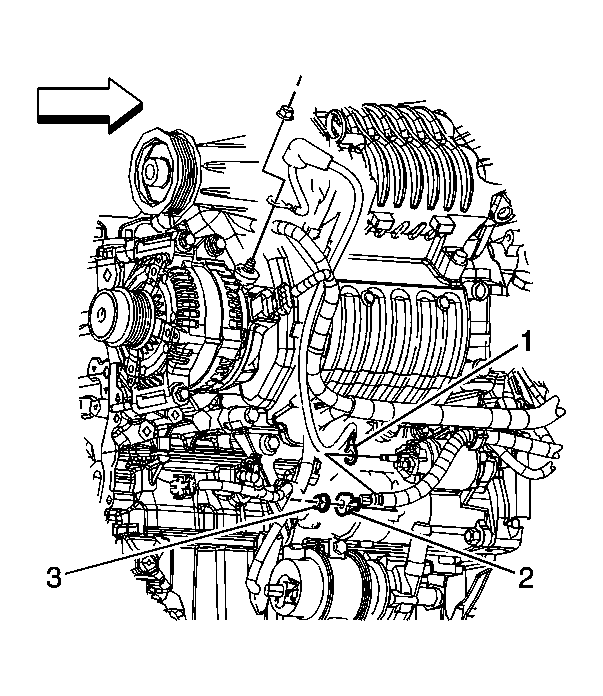

Fig 3: Positive Battery Cable Terminal To Starter Solenoid (LNF)

Courtesy of GENERAL MOTORS CORP.

If equipped with RPO LNF, perform the following steps, install the positive battery cable terminal (2) to the starter solenoid.

CAUTION: Refer to Fastener Caution .

Install the starter solenoid terminal nut (3) and tighten to 17 N.m (13 lb ft).

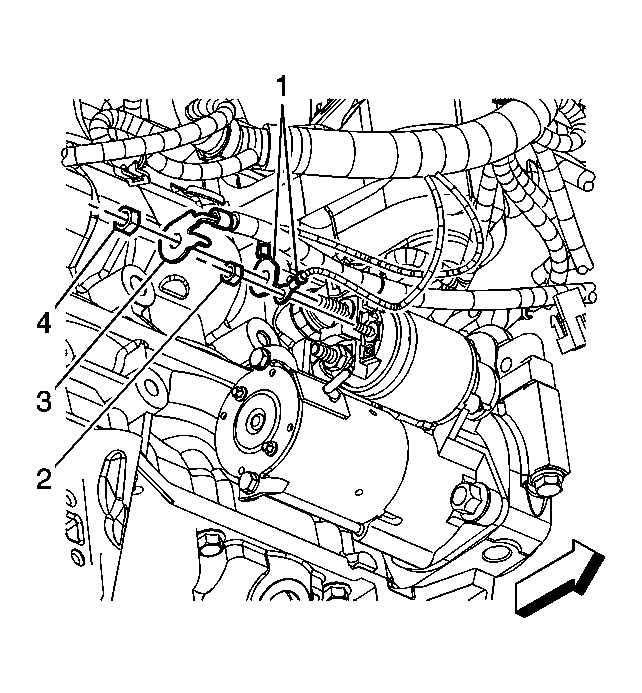

Fig 4: Positive Battery Cable Terminal To Starter Solenoid (LAP)

Courtesy of GENERAL MOTORS CORP.

If equipped with RPO LAP, perform the following steps, Install the positive battery cable terminal (3) to the starter solenoid.
Install the starter solenoid terminal nut (4) and tighten to 17 N.m (13 lb ft).
Lower the vehicle.

Fig 5: View Of Junction Block Cover

Courtesy of GENERAL MOTORS CORP.

Install the positive battery cable terminal (2) to the junction block stud.
Install the junction block nut (1) and tighten to 17 N.m (13 lb ft).
Install the positive battery cable clip (3) to the ECM bracket.
Install the junction block cover.
Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
