Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

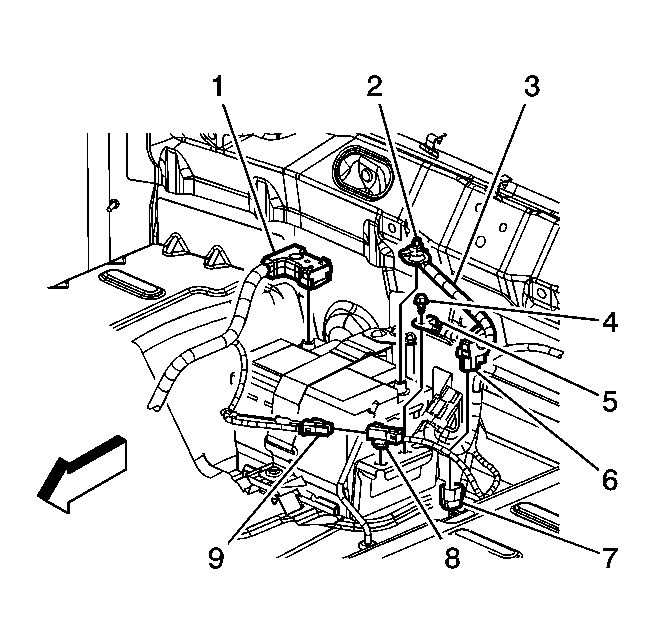

    Fig 1: View Of Battery Connections
    GM1656237Courtesy of GENERAL MOTORS CORP.
    NOTE:
    • Always use replacement cables that are of the same type, diameter and length of the cables that you are replacing.
    • Always route the replacement cable the same way as the original cable.
  1. Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Disconnect the body harness electrical connector (7) from the battery current sensor (6).
  3. Remove the negative battery cable ground bolt (4).
  4. Separate the negative battery cable terminal (5) from the battery support.
  5. Remove the negative battery cable (3).
