Interior Lights Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

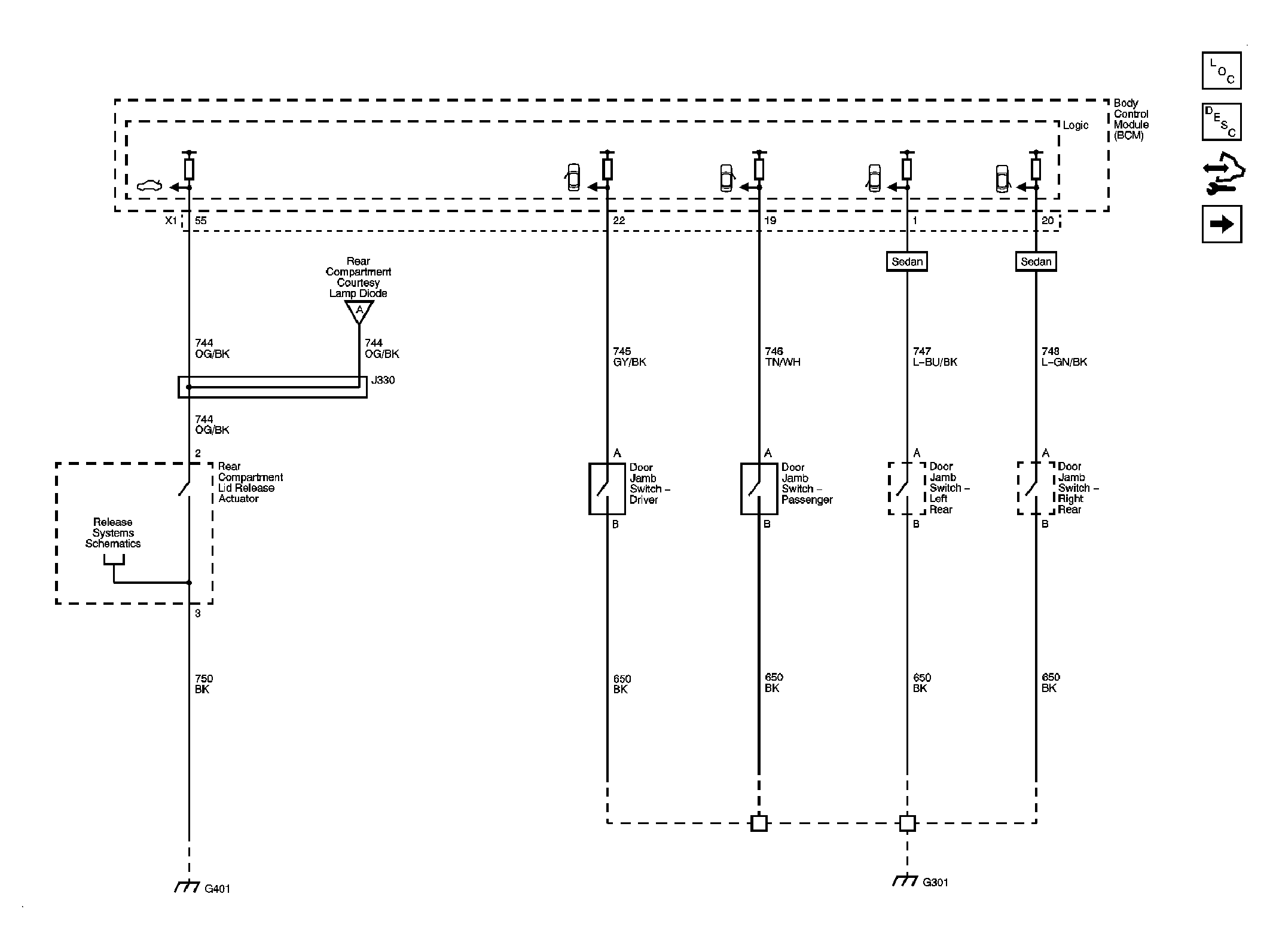

Fig 1: Inputs
GM2249183Courtesy of GENERAL MOTORS CORP.

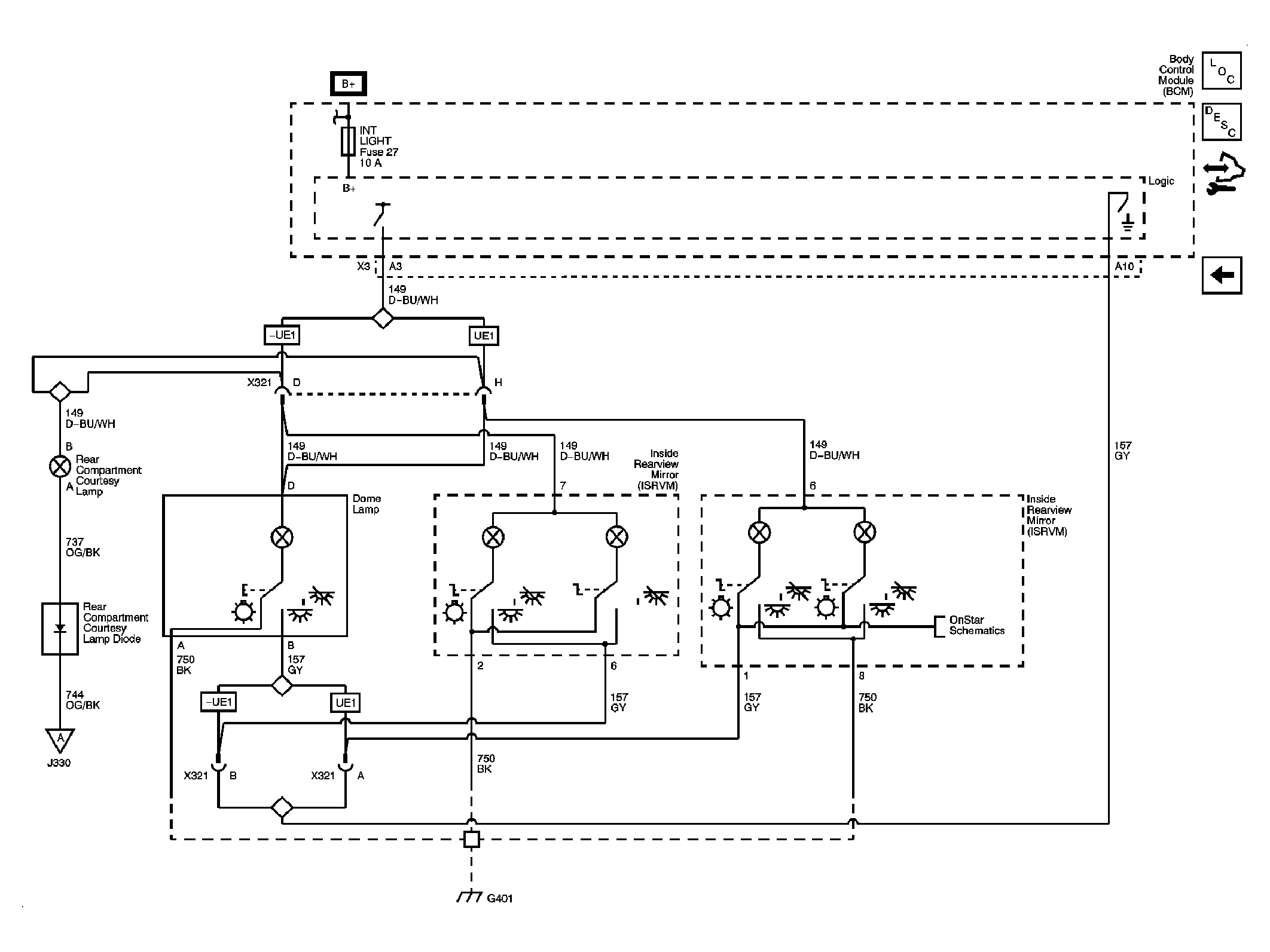

Fig 2: Outputs
GM2249184Courtesy of GENERAL MOTORS CORP.
