Exterior Lights Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

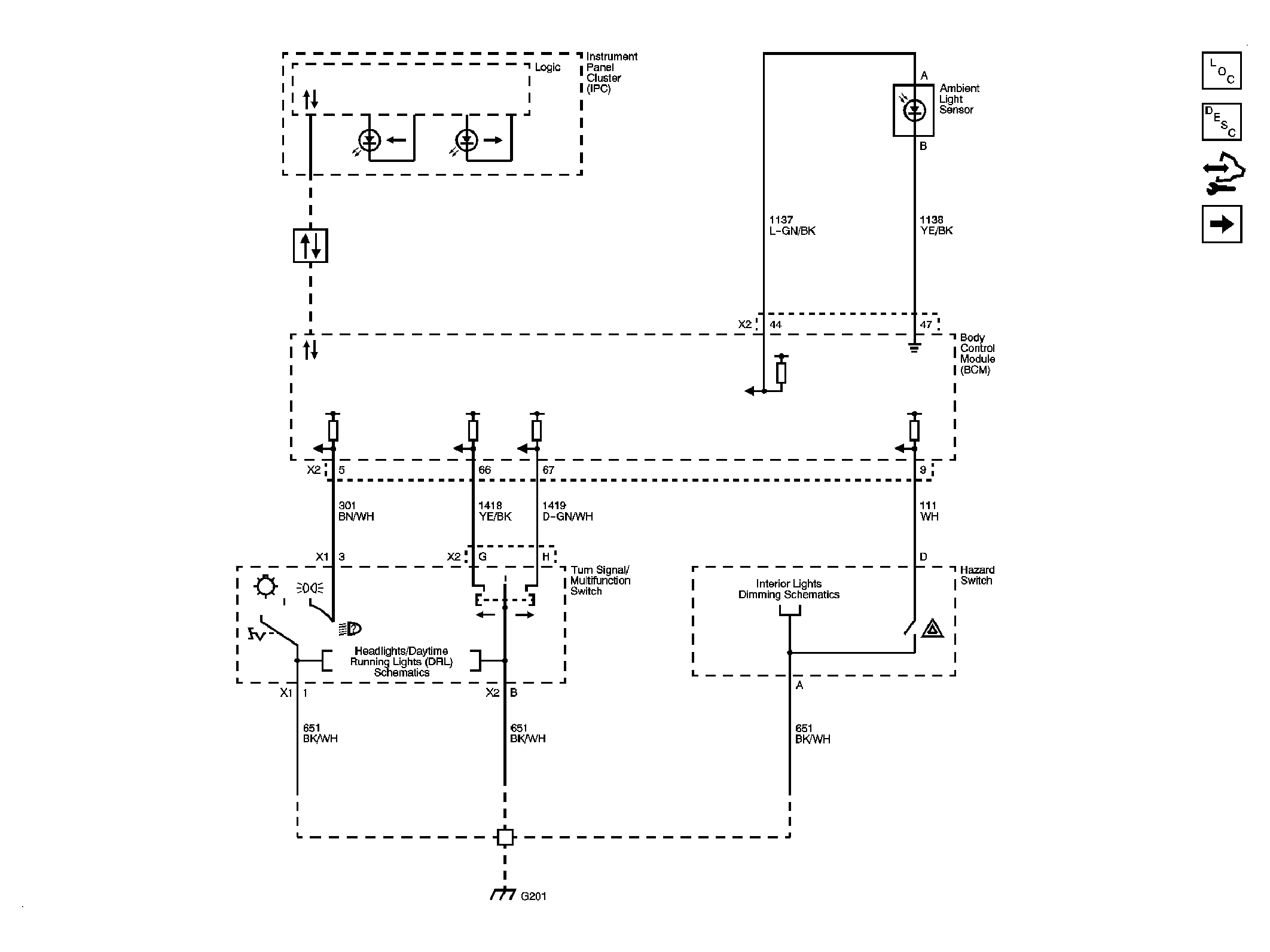

Fig 1: Inputs

Courtesy of GENERAL MOTORS CORP.

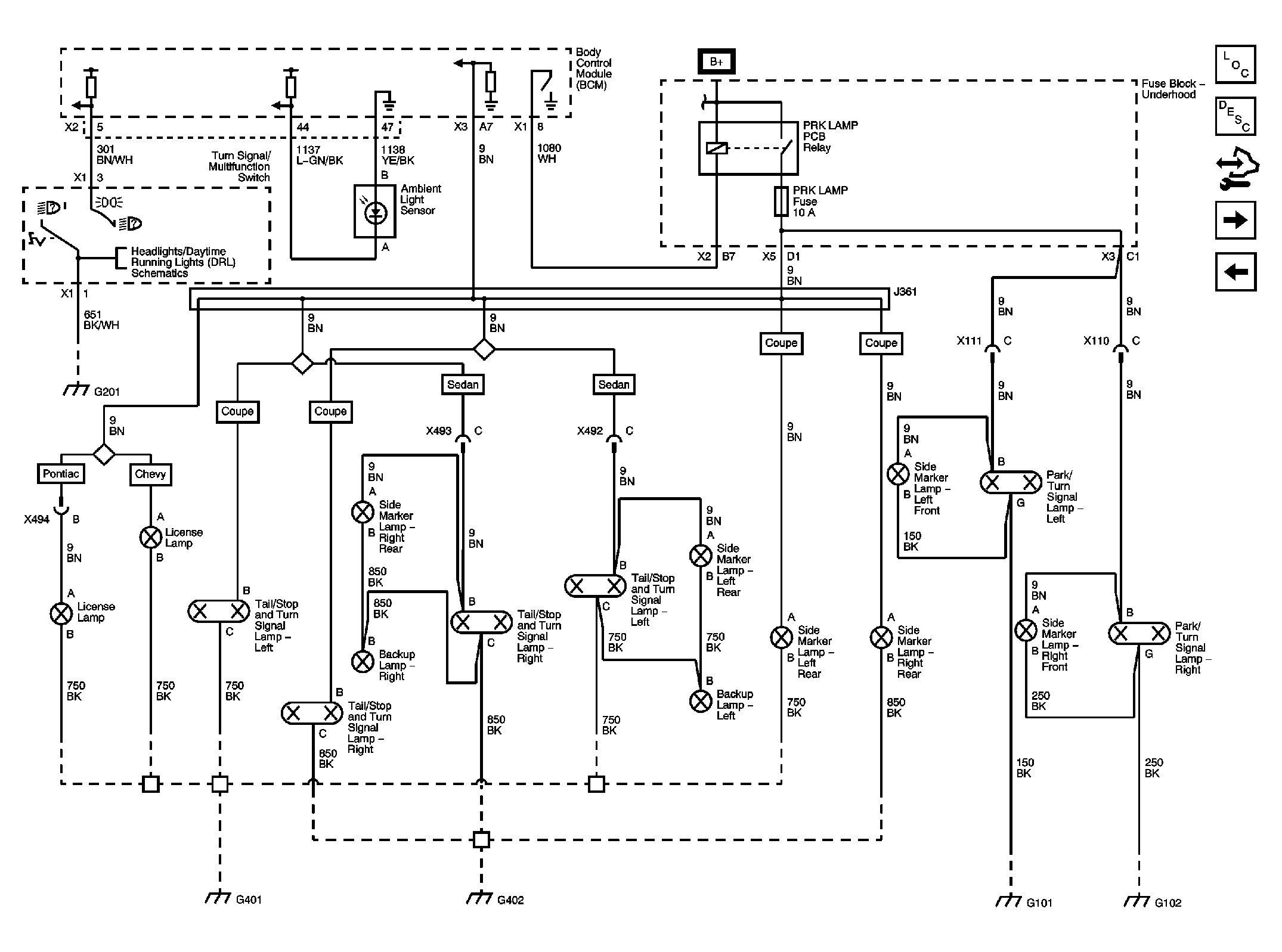

Fig 2: Park and Tail Lamps

Courtesy of GENERAL MOTORS CORP.

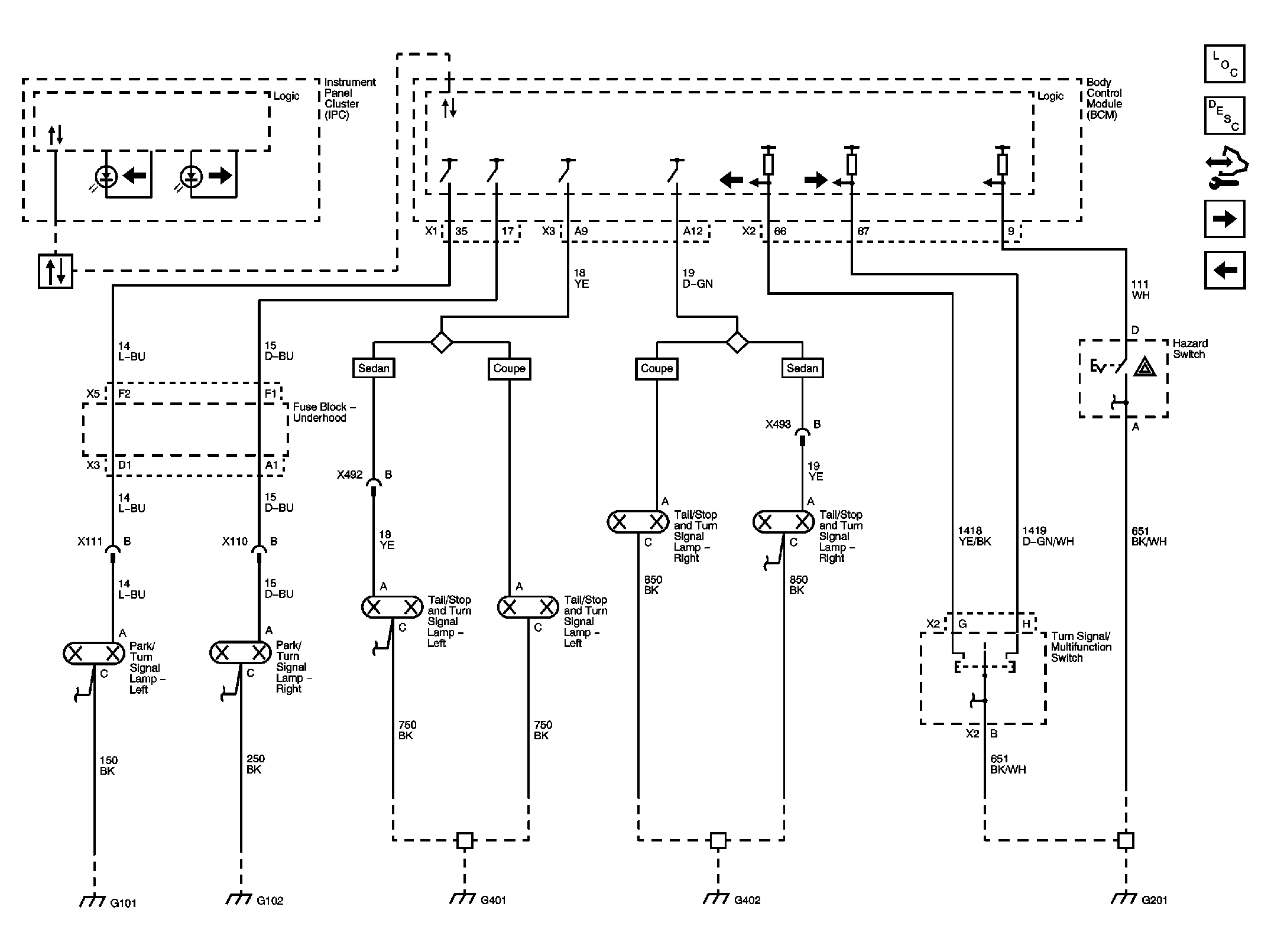

Fig 3: Hazards, Turn Signals

Courtesy of GENERAL MOTORS CORP.

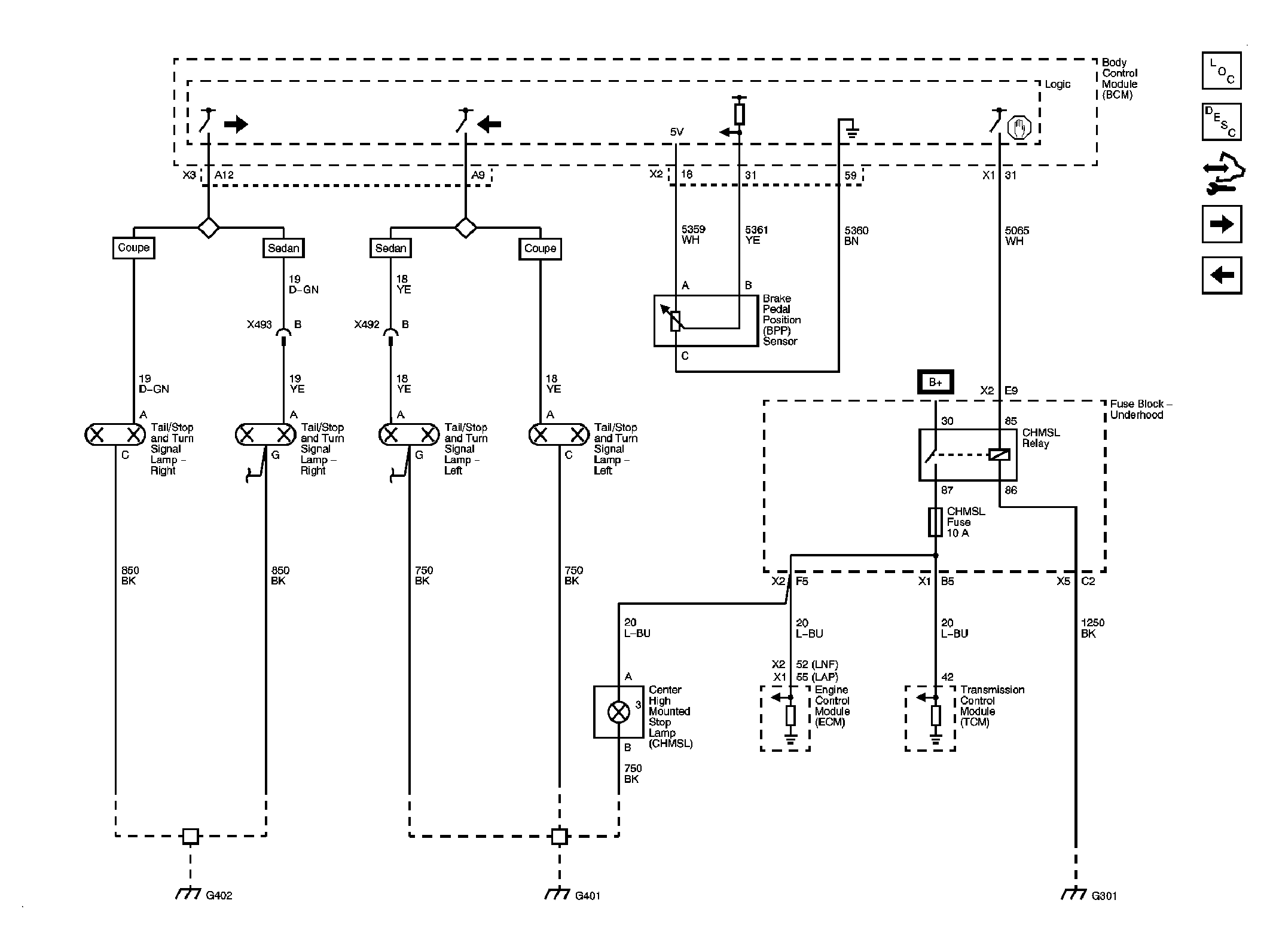

Fig 4: Stop Lamps

Courtesy of GENERAL MOTORS CORP.

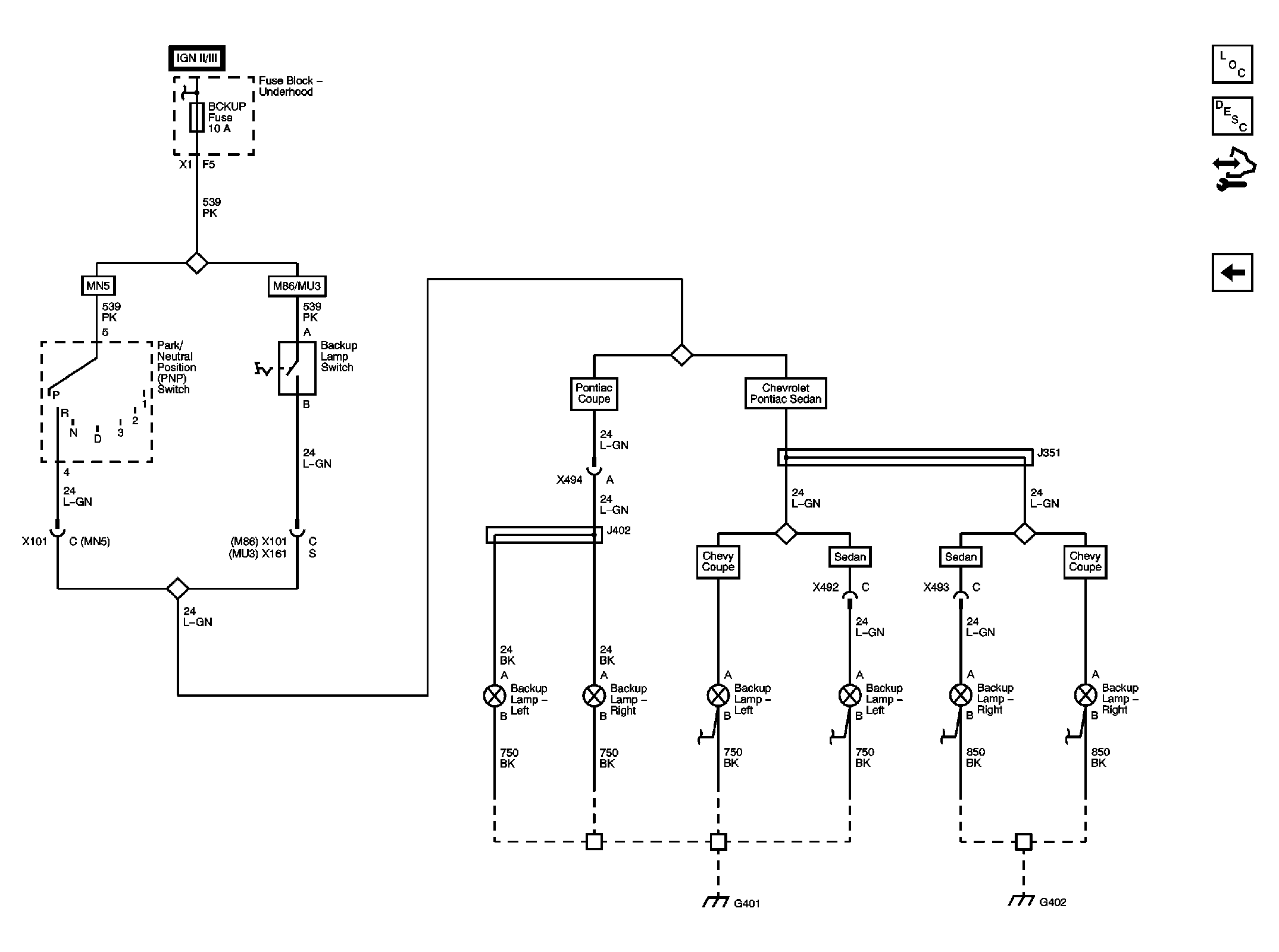

Fig 5: Backup Lamps

Courtesy of GENERAL MOTORS CORP.
