Tail/Turn Signal Lamp Replacement (Chevrolet Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

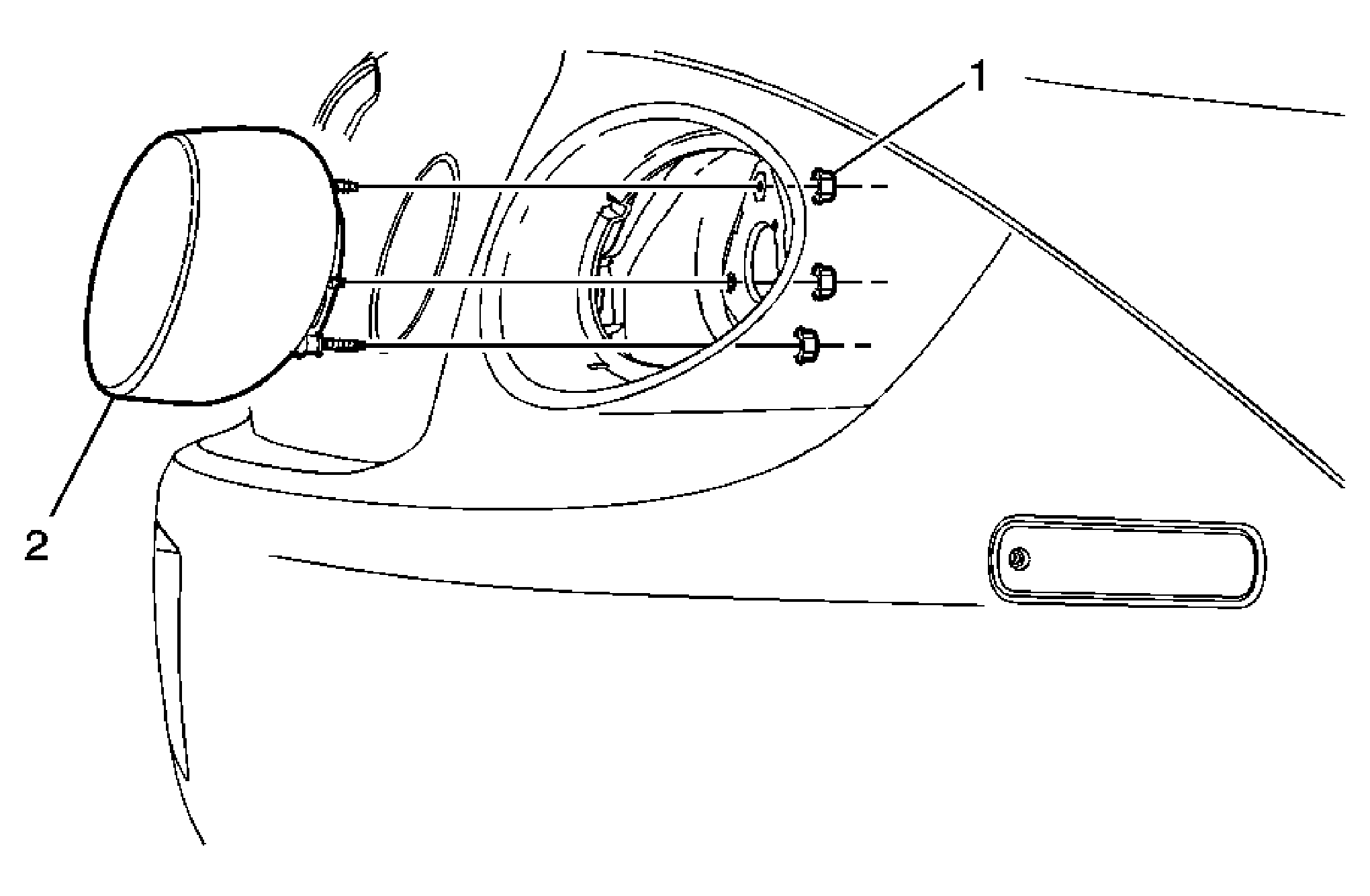

Fig 1: Removing/Installing Tail/Turn Signal Lamp Assembly (Chevrolet Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement . Disconnect the electrical connector from the stop/turn signal lamp socket. Remove the stop/turn bulb lamp socket from the lamp assembly.
1	Tail Turn Signal Lamp Nut (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 5 N.m (44 lb in)
2	Tail Lamp Turn Signal Lamp Assembly Tip: Push the lamp assembly outward from the rear end panel extension.

Callout

Component Name

Preliminary Procedure

Remove the rear compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
Disconnect the electrical connector from the stop/turn signal lamp socket.
Remove the stop/turn bulb lamp socket from the lamp assembly.

Tail Turn Signal Lamp Nut (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 5 N.m (44 lb in)

Tail Lamp Turn Signal Lamp Assembly
Tip: Push the lamp assembly outward from the rear end panel extension.
