Backup Lamp Bulb Replacement (Chevrolet Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

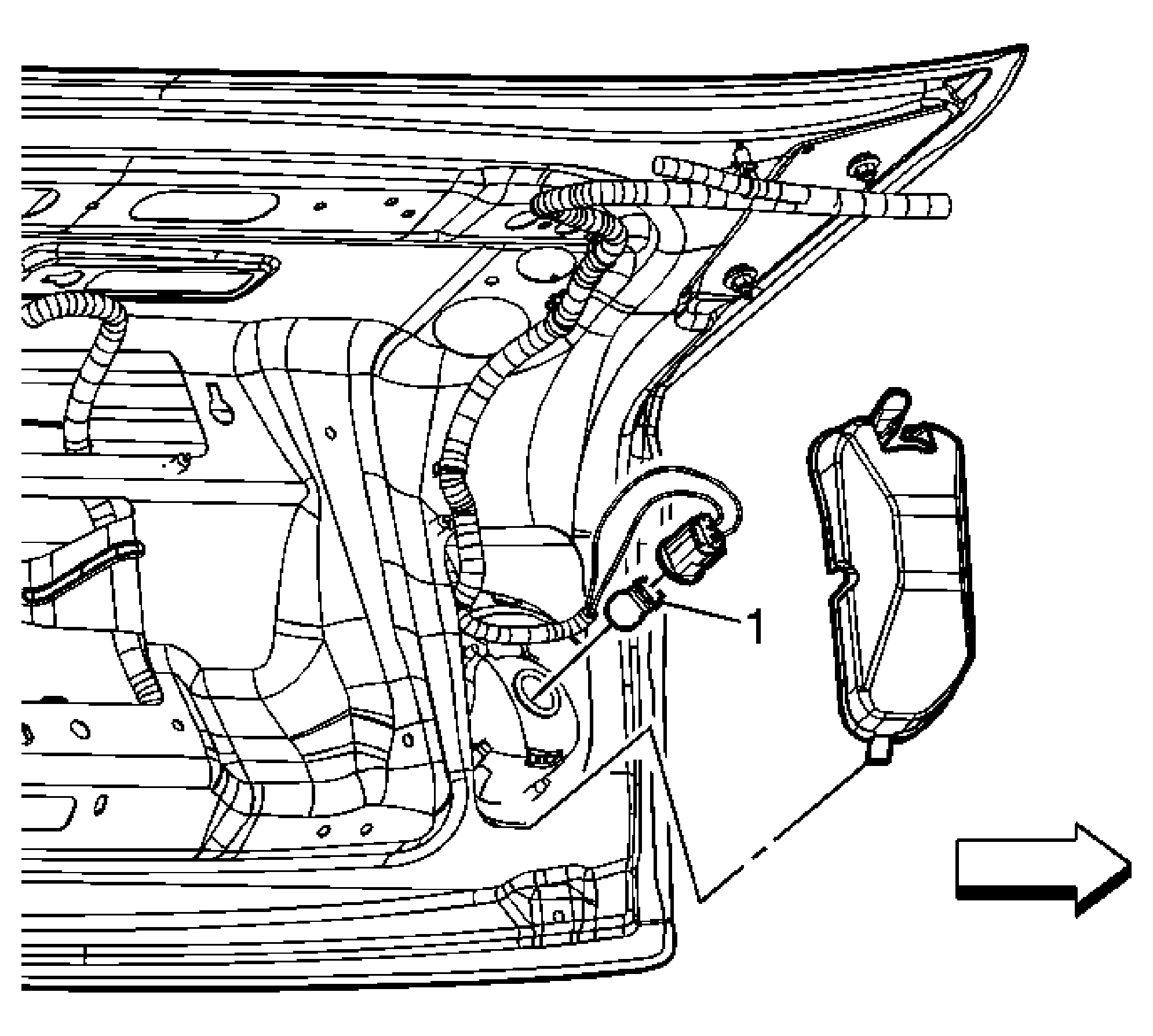

Fig 1: Identifying Backup Lamp Bulb (Chevrolet Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Open the rear compartment lid. Remove the back up lamp cover. Turn the bulb socket counterclockwise and remove from the lamp housing.
1	Back Up Lamp Socket Bulb WARNING: Refer to Halogen Bulb Warning . Tip: Pull the bulb straight from the lamp socket connector.

Callout

Component Name

Preliminary Procedure

Open the rear compartment lid.
Remove the back up lamp cover.
Turn the bulb socket counterclockwise and remove from the lamp housing.

Back Up Lamp Socket Bulb

WARNING: Refer to Halogen Bulb Warning .

Tip: Pull the bulb straight from the lamp socket connector.
