Rear Compartment Lid Adjustment

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

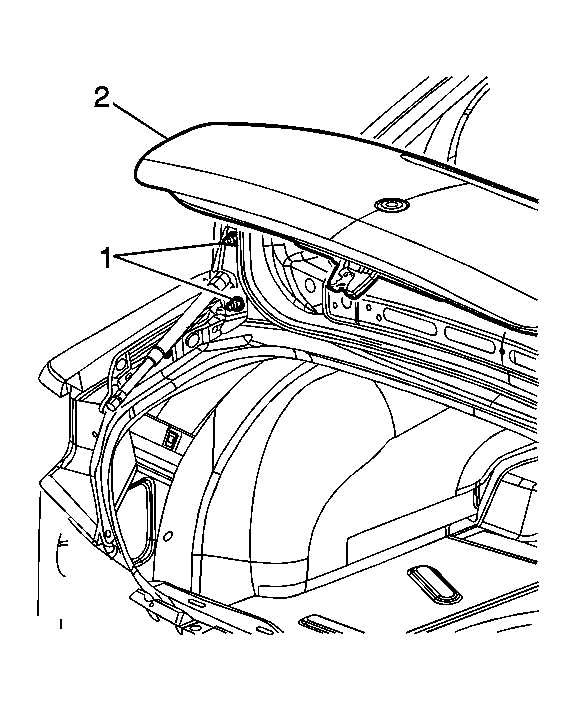

    Fig 1: Rear Compartment Lid
    GM1549898Courtesy of GENERAL MOTORS CORP.
  1. Adjust the rear compartment lid fore-aft and cross-car by loosening the hinge to compartment lid nuts (1). Position the rear compartment lid as needed.
  2. Adjust the front of the compartment lid up and down by loosening hinge to quarter panel bolts (2). Position the rear compartment lid as needed.
  3. Adjust the rear of the compartment lid by adjusting the lock striker up and down.
    4. CAUTION: Refer to Fastener Caution .
  4. Tighten the rear compartment lid hinge to compartment lid nuts (1) to 10 N.m (89 lb in).
  5. Tighten the rear compartment lid hinge to quarter panel bolts (2) to 10 N.m (89 lb in).
  6. Tighten the latch striker bolts when the adjustments are complete to 10 N.m (89 lb in).
