Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.

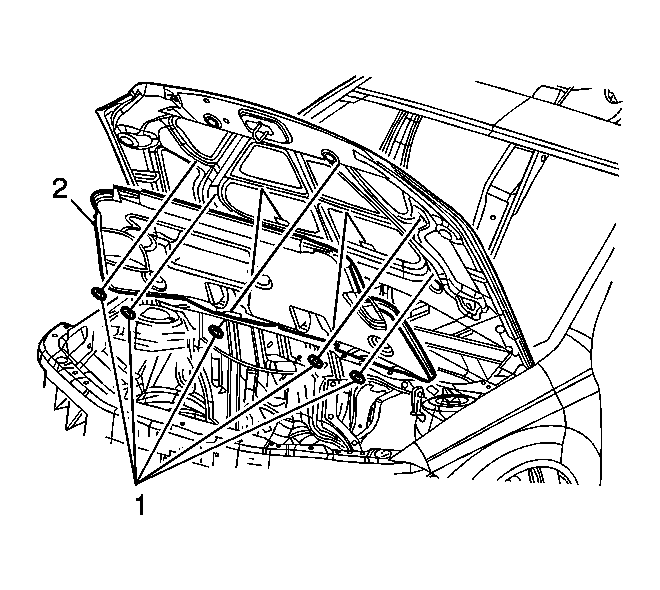

    2. Fig 1: Identifying Hood Insulator Push-In Retainers
    GM1549904Courtesy of GENERAL MOTORS CORP.
  2. Remove the hood insulator push-in retainers (1) from the hood using the J 38778  . See Special Tools .
  3. Slide the hood insulator rearward. Remove the hood insulator (2).
