Fuel Tank Filler Door Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

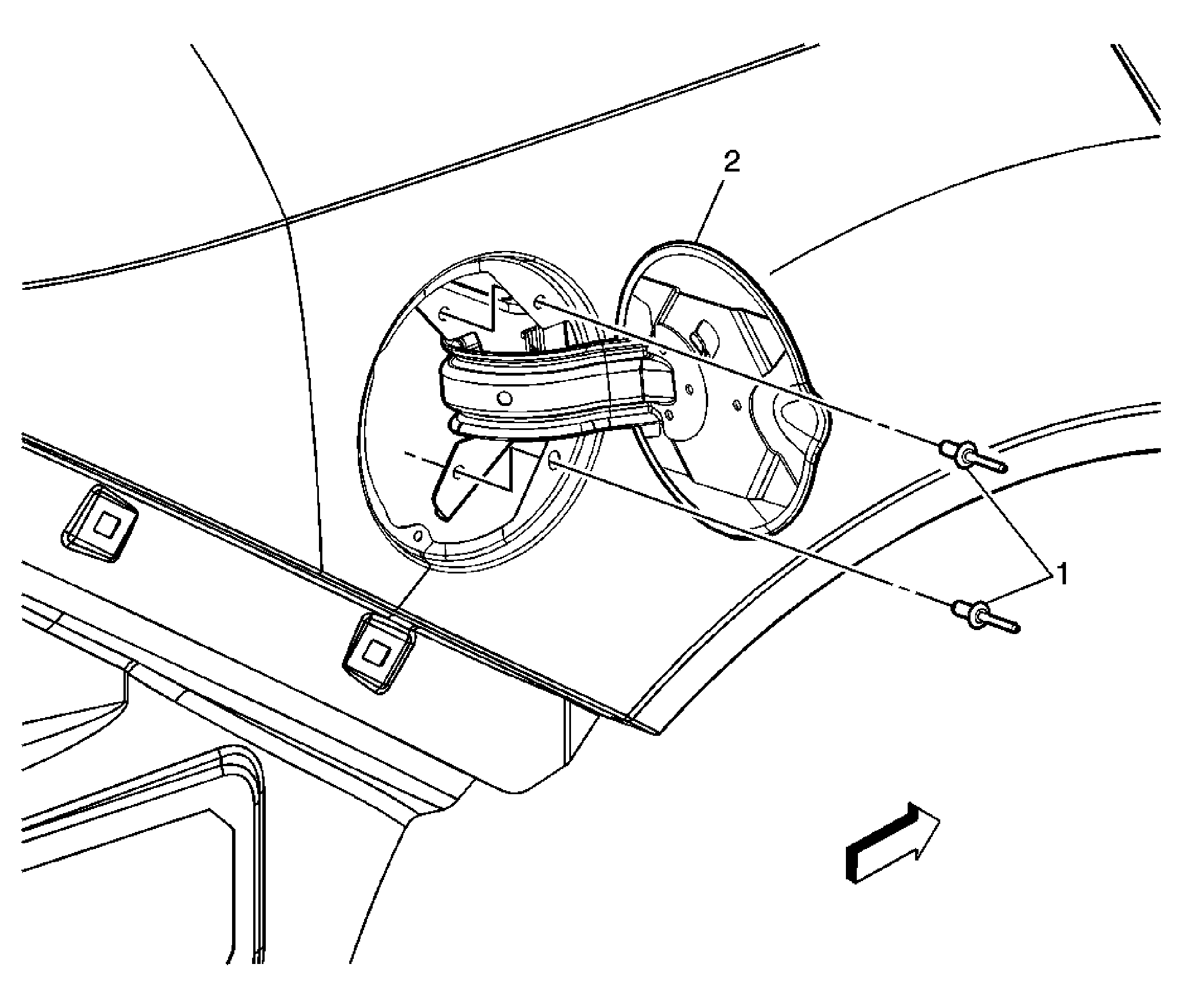

Fig 1: View Of Fuel Filler Door
GM1549900Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the fuel filler pocket. Refer to Fuel Tank Filler Pipe Housing Replacement .
1 Fuel Filler Door Rivet (Qty: 2)
Tip:
  1. Apply tape around fuel filler door area to protect the paint.
  2. Use a drill to remove the rivets from the fuel filler door.
2 Fuel Filler Door
