Door Opening Weatherstrip Replacement (Sedan)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

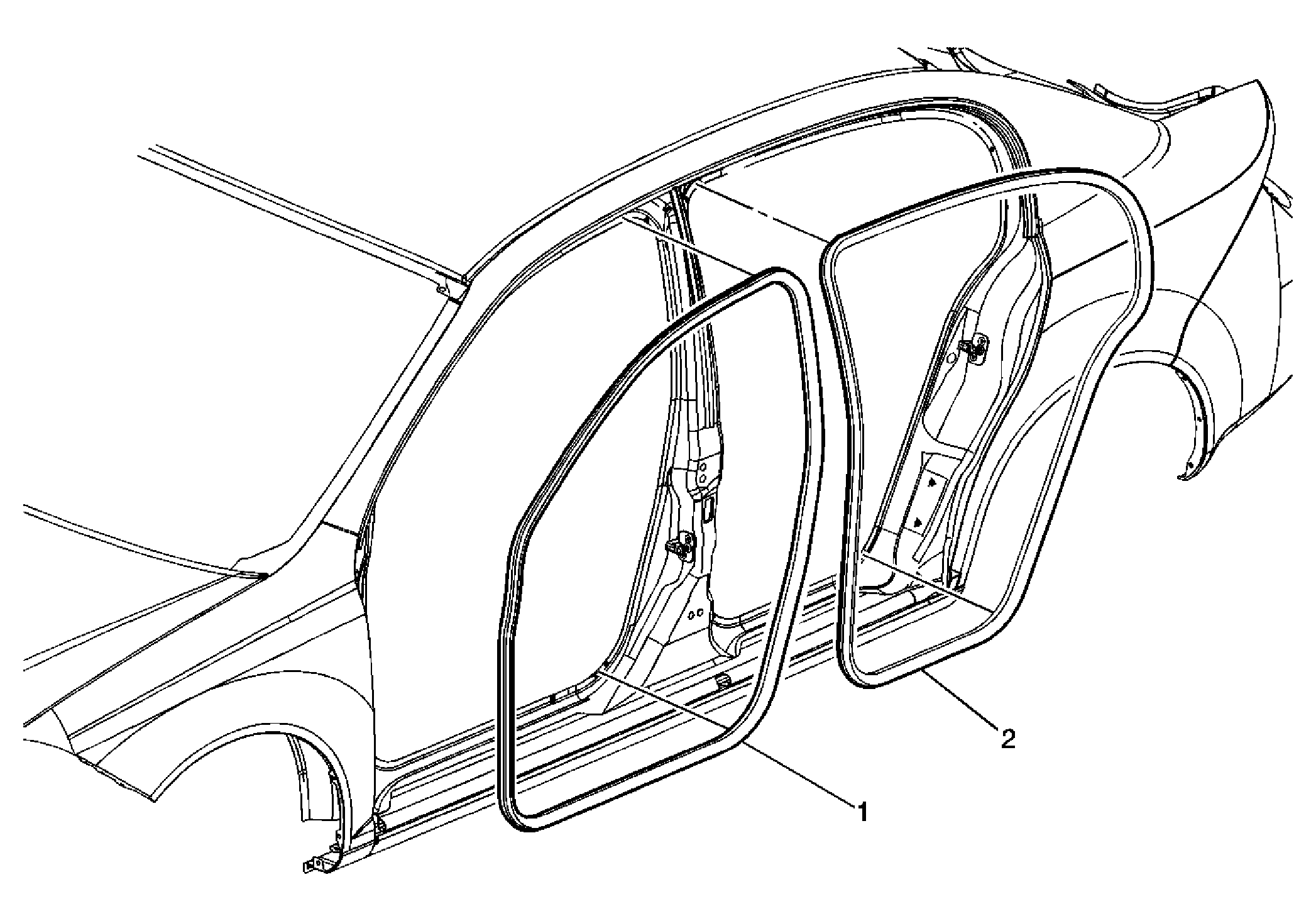

Fig 1: View Of Door Opening Weatherstrip - Sedan
GM1548677Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Front Side Door Weatherstrip Replacement
Preliminary Procedure:
Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Coupe) or Front Side Door Opening Floor Carpet Retainer Replacement (Sedan) .
1 Front Side Door Weatherstrip Assembly
Rear Side Door Weatherstrip Replacement
Preliminary Procedure:
Remove the rear carpet retainer. Refer to Rear Side Door Opening Floor Carpet Retainer Replacement .
2 Rear Side Door Weatherstrip Assembly
