Door Opening Weatherstrip Replacement (Coupe)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

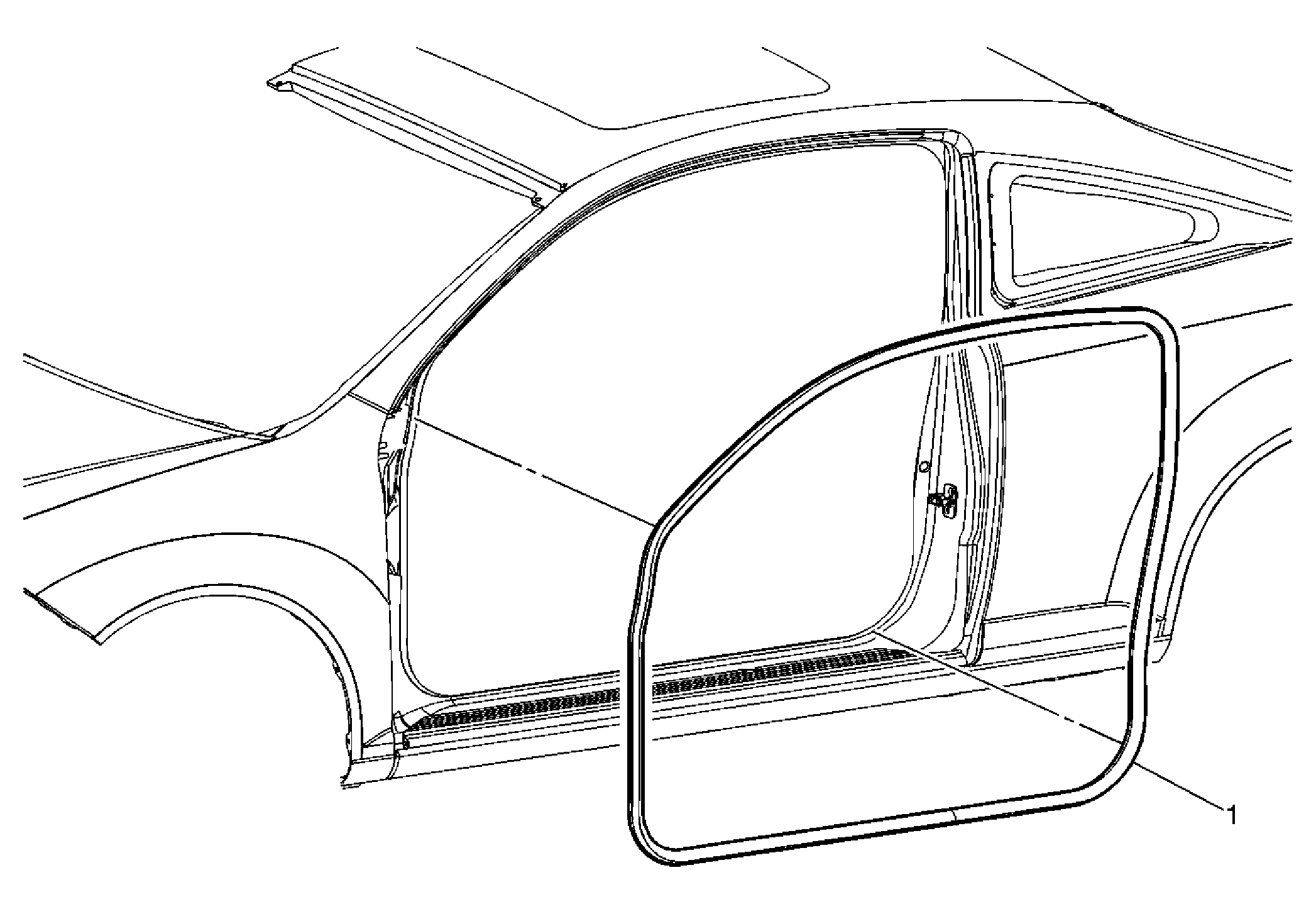

Fig 1: View Of Door Opening Weatherstrip - Coupe

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front carpet retainer. Refer to Front Side Door Opening Floor Carpet Retainer Replacement (Coupe) or Front Side Door Opening Floor Carpet Retainer Replacement (Sedan) .
1	Front Side Door Weatherstrip Assembly
