Seat Belt Height Adjuster Replacement - Front
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

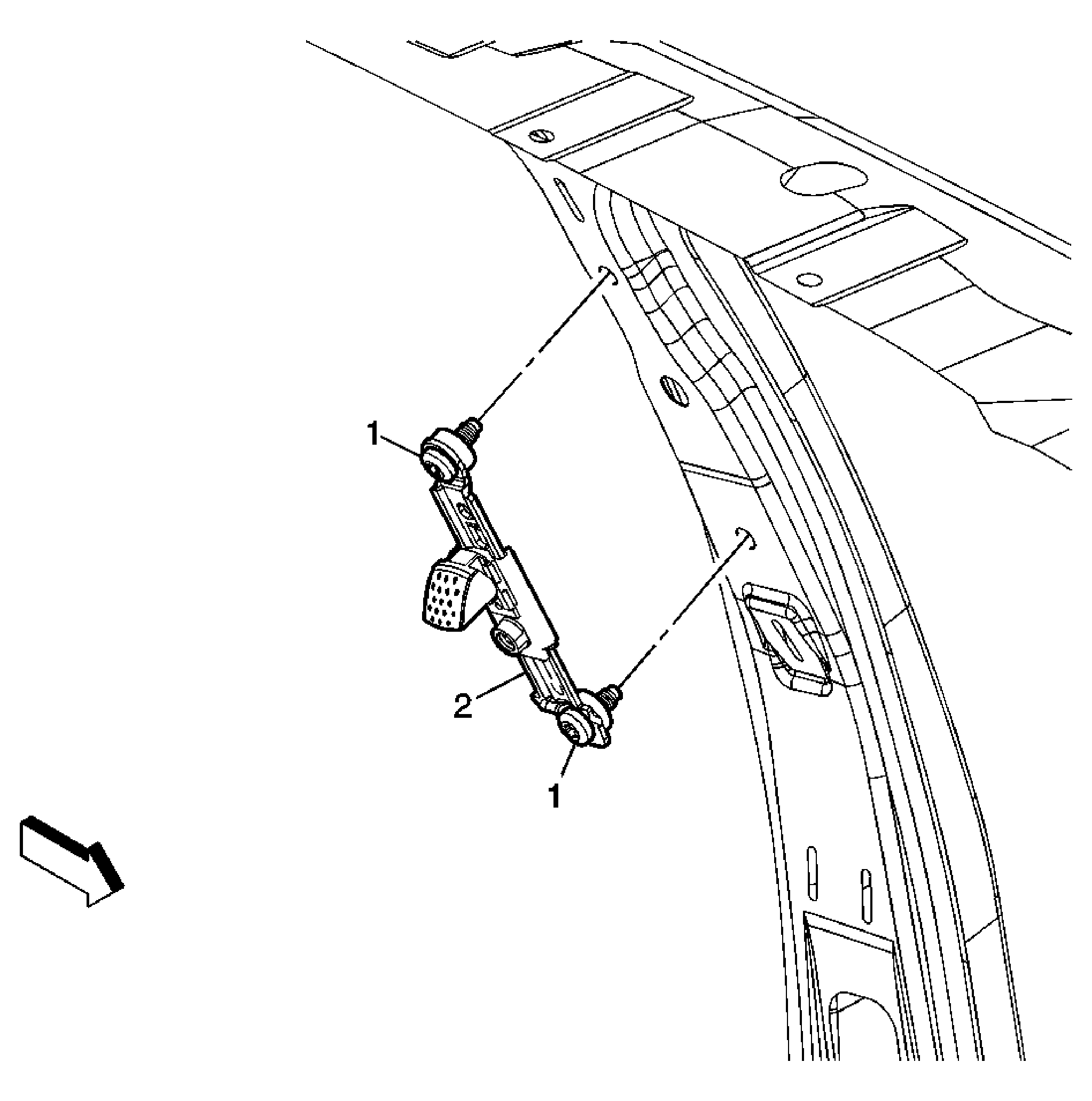

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the center upper garnish molding. Refer to Center Pillar Upper Garnish Molding Replacement (Sedan) . |
|
| 1 | Seat Belt Height Adjuster Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 45 N.m (33 lb ft) |
| 2 | Seat Belt Height Adjuster |
