Door Lock/Indicator Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

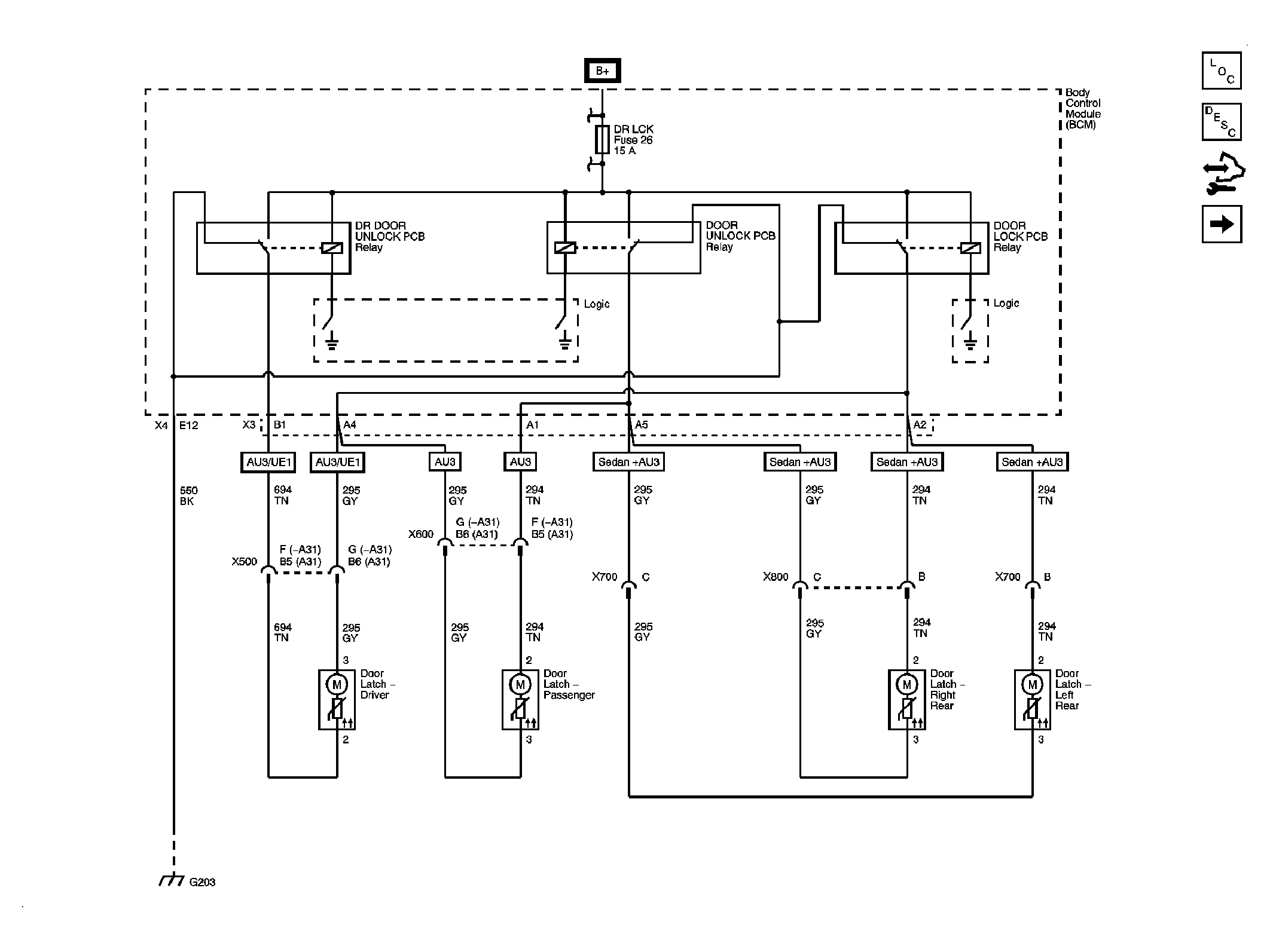

Fig 1: Door Latches
GM2249205Courtesy of GENERAL MOTORS CORP.

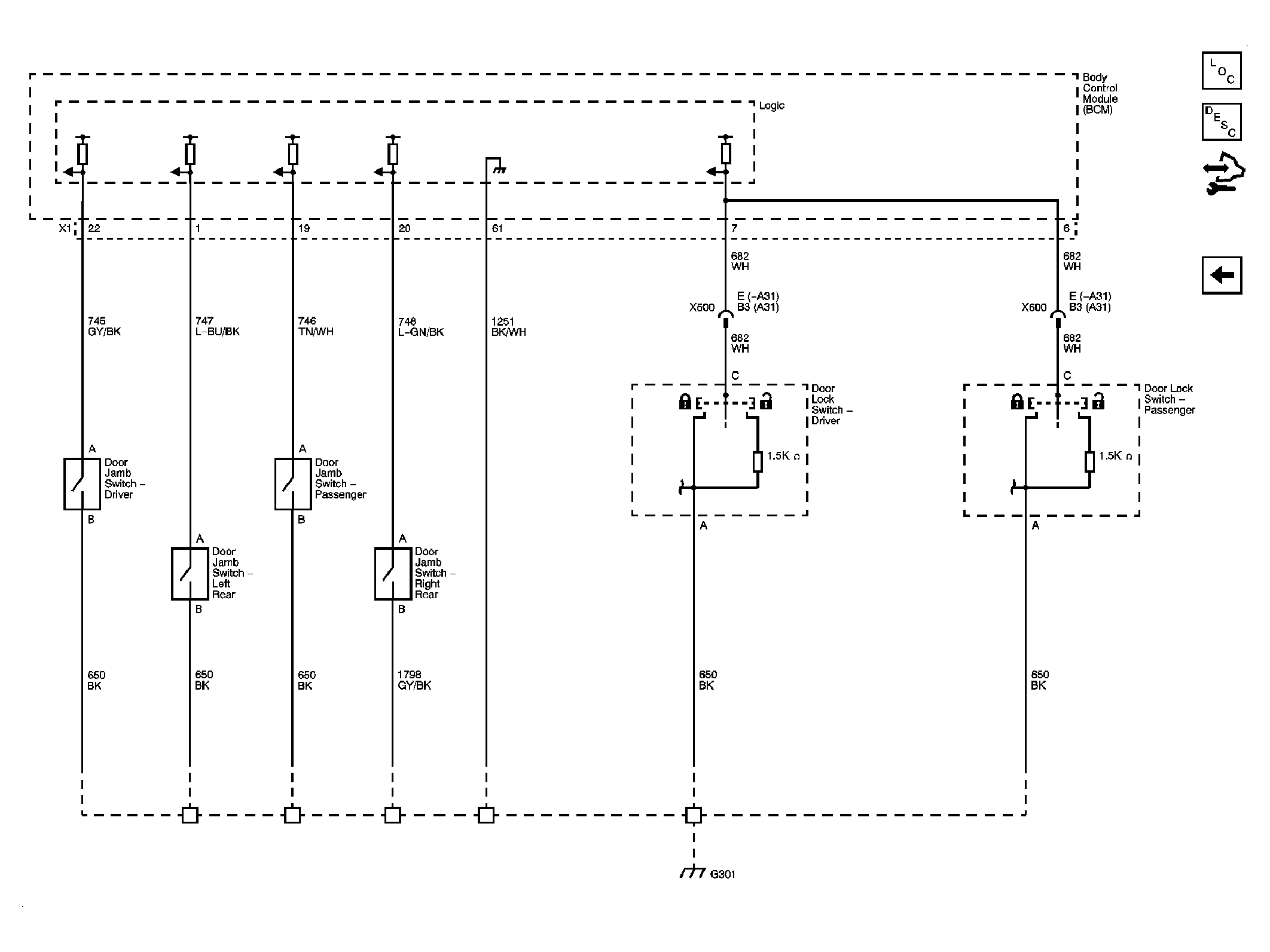

Fig 2: Door Switches
GM2249208Courtesy of GENERAL MOTORS CORP.
