Rear Compartment Lid Release Switch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

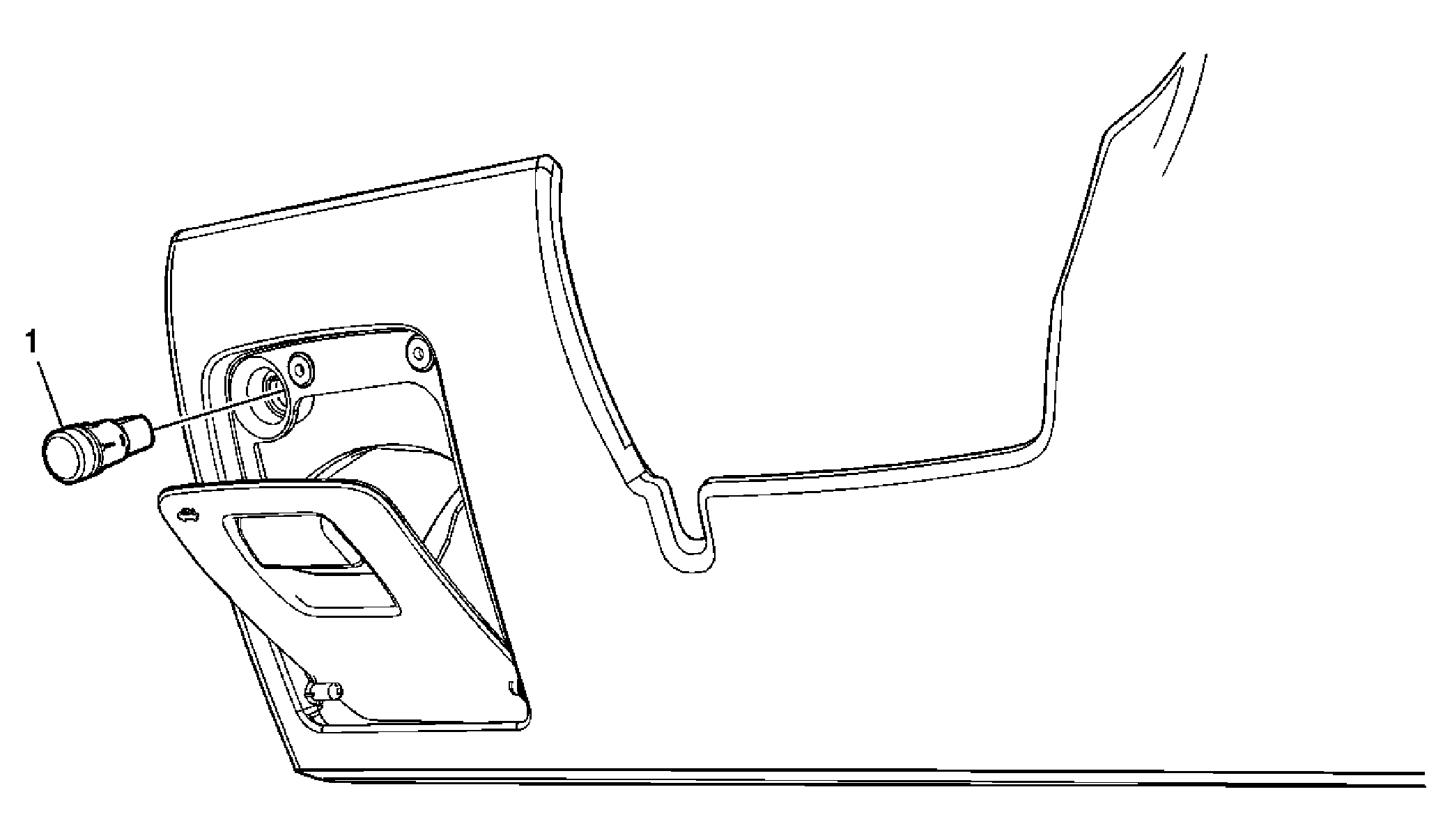

Fig 1: View Of Rear Compartment Lid Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the steering column opening filler. Refer to Steering Column Opening Filler Replacement .
1	Rear Compartment Lid Release Switch Assembly Procedure Disconnect the electrical connector. Push the 2 tabs in to release the switch.

Callout

Component Name

Preliminary Procedure:
Remove the steering column opening filler. Refer to Steering Column Opening Filler Replacement .

Rear Compartment Lid Release Switch Assembly

Procedure

Disconnect the electrical connector.
Push the 2 tabs in to release the switch.
