Rear Compartment Lid Lock Cylinder Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

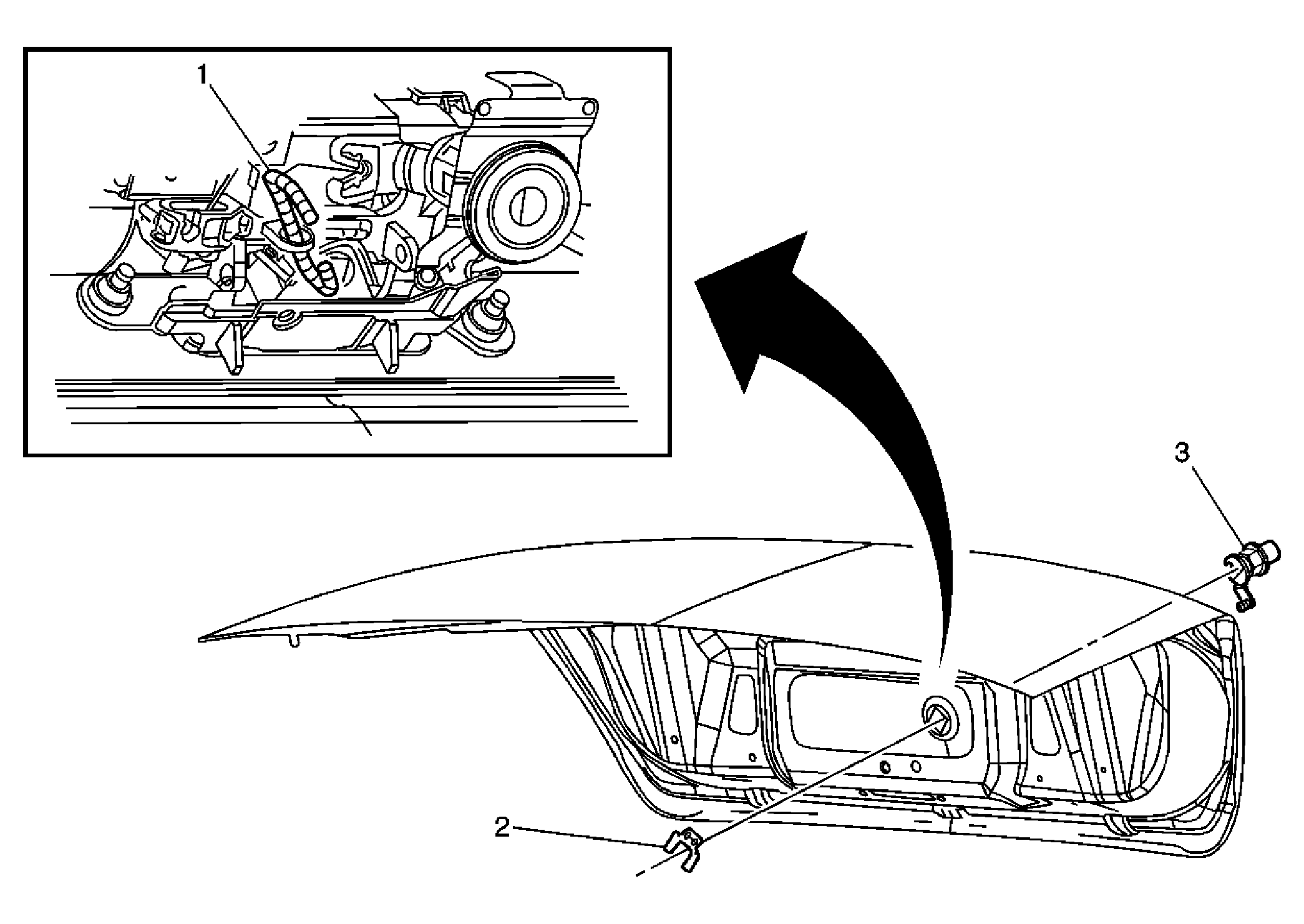

| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Rod, Lock Cylinder Tip: Use a flat-bladed tool to release the rod. |
| 2 | Clip, Lock Cylinder Retainer Tip: Use a flat-bladed tool to release clip. |
| 3 | Cylinder, Rear Compartment Lock |
