Rear Compartment Lid Latch Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

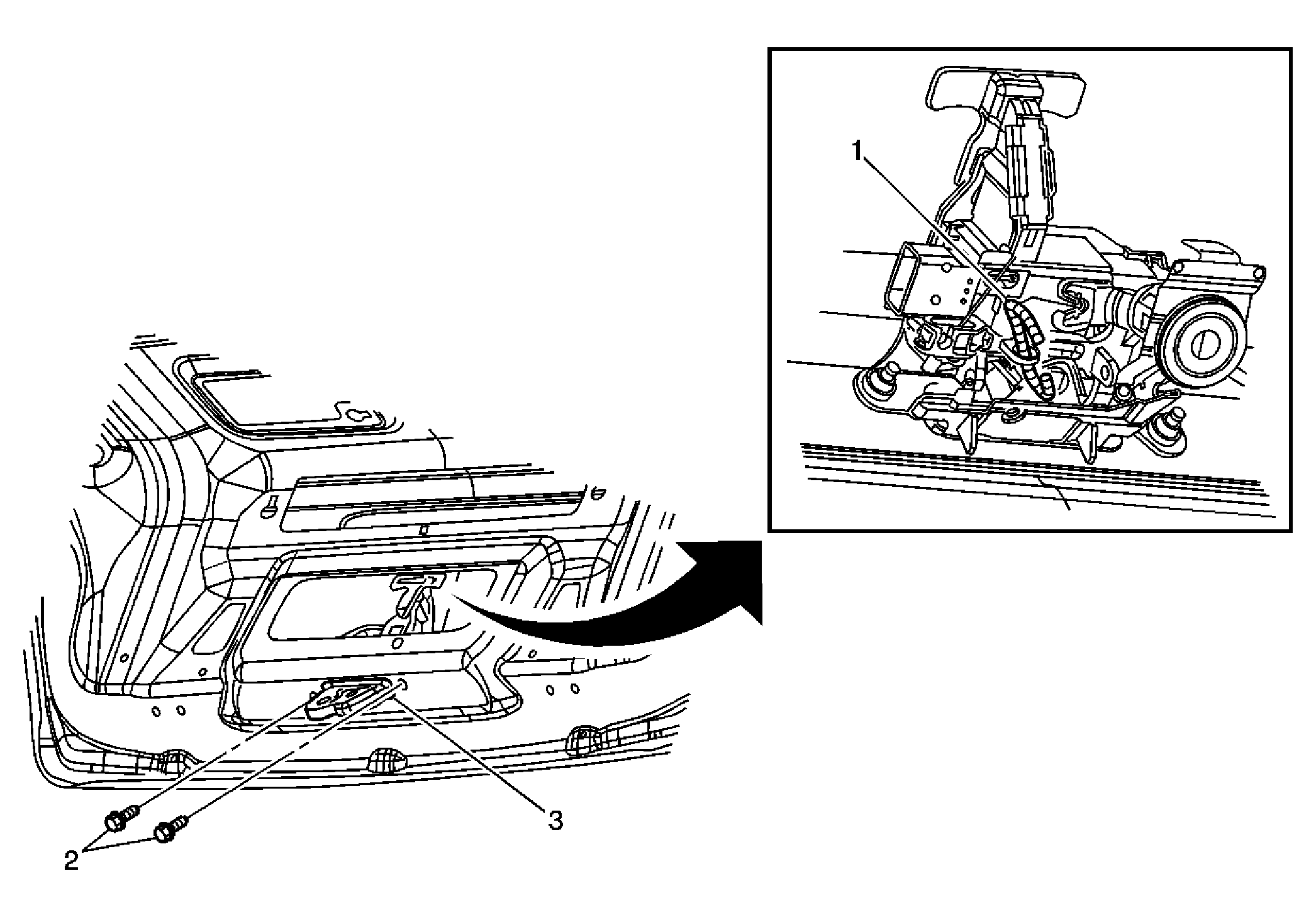

| Callout | Component Name |
|---|---|
| 1 | Lock Cylinder Rod Tip: Use a flat-bladed tool to release the lock rod. |
| 2 | Rear Compartment Latch Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
. Tip: Disconnect the electrical connector, if equipped. Tighten: 10 N.m (89 lb in) |
| 3 | Rear Compartment Lid Latch Tip: Remove the latch through the access hole. |
