Rear Side Door Window Outer Sealing Strip Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

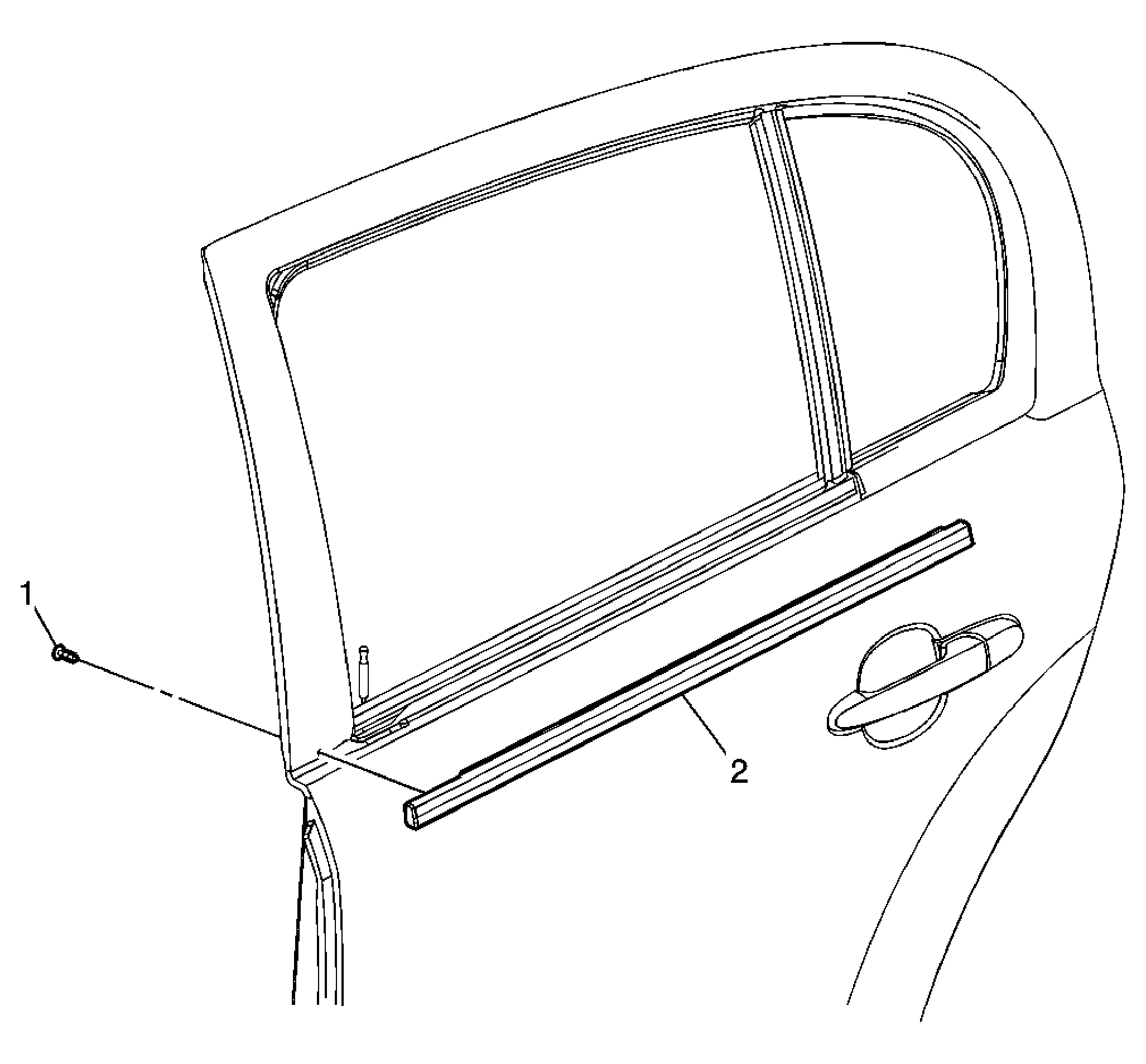

Fig 1: Sealing Strip Replacement - Rear Door Window Belt Outer

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Side Door Window Outer Sealing Strip Screw CAUTION: Refer to Fastener Caution . Tighten: 1 N.m (9 lb in)
2	Rear Side Door Outer Sealing Strip
