Front Side Door Window Belt Outer Sealing Strip Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

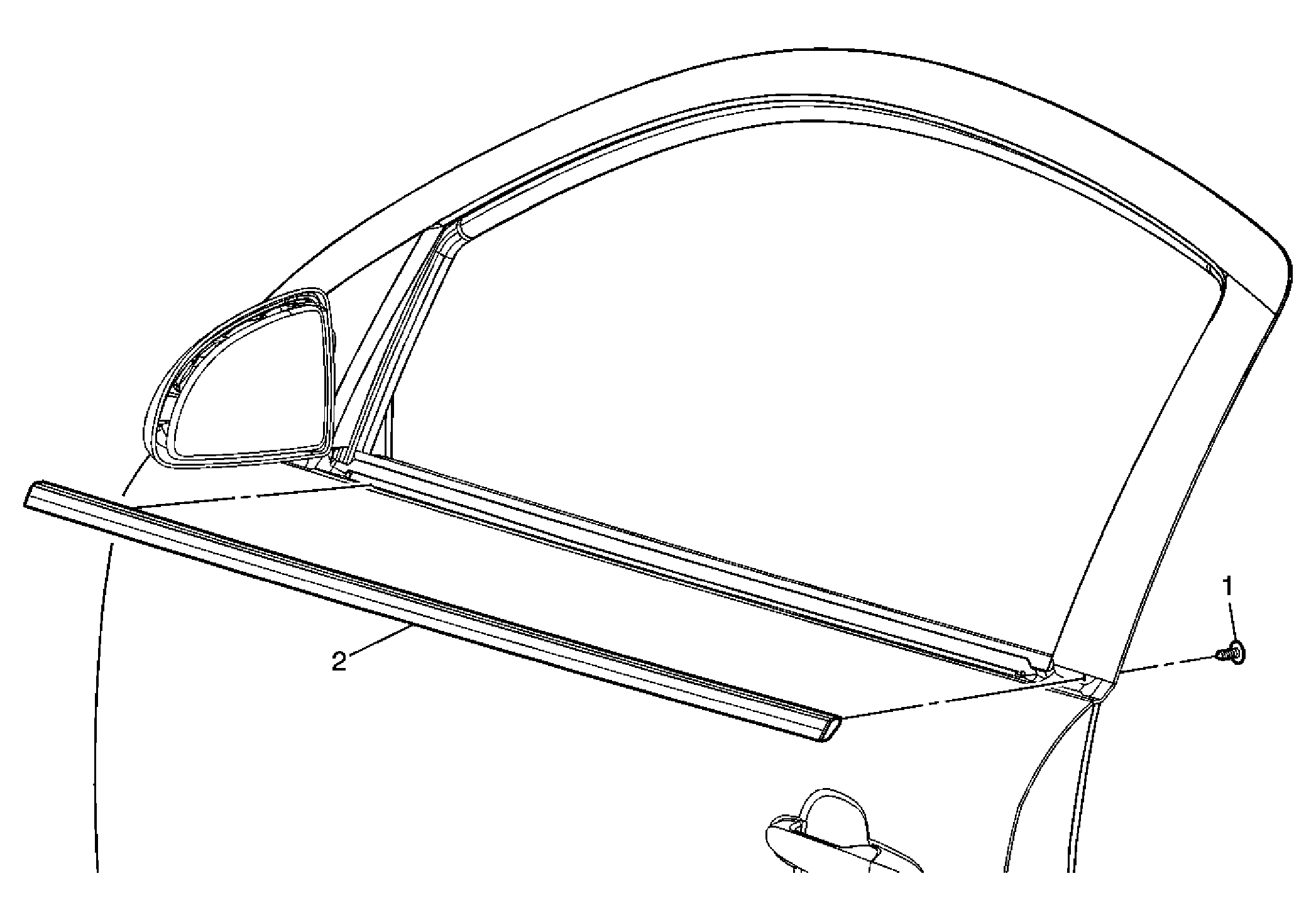

| Callout | Component Name |
|---|---|
| 1 | Front Side Door Window Outer Sealing Strip Screw
CAUTION:
Refer to Fastener Caution
.
Tighten: 1 N.m (9 lb in) |
| 2 | Front Side Door Outer Sealing Strip |
