Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) center trim panel. Refer to Instrument Panel Center Trim Panel Replacement .

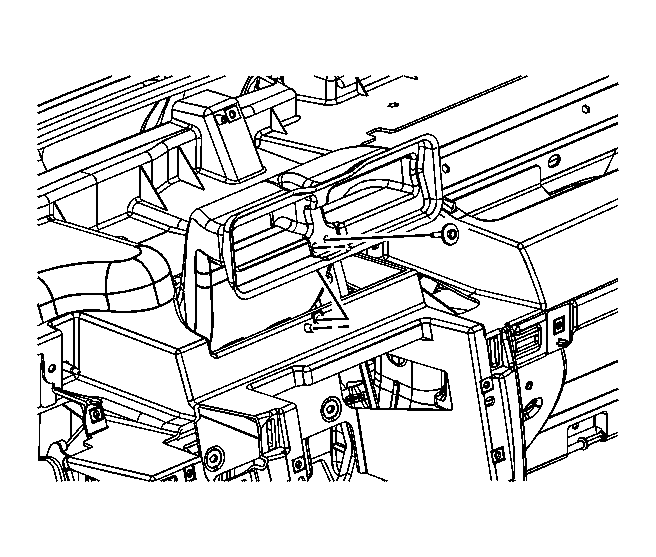

    2. Fig 1: Identifying Center Air Outlet Duct
    GM1609043Courtesy of GENERAL MOTORS CORP.
  2. Remove the center air outlet duct screw and duct.
