Heater Outlet Hose Replacement (LNF)

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

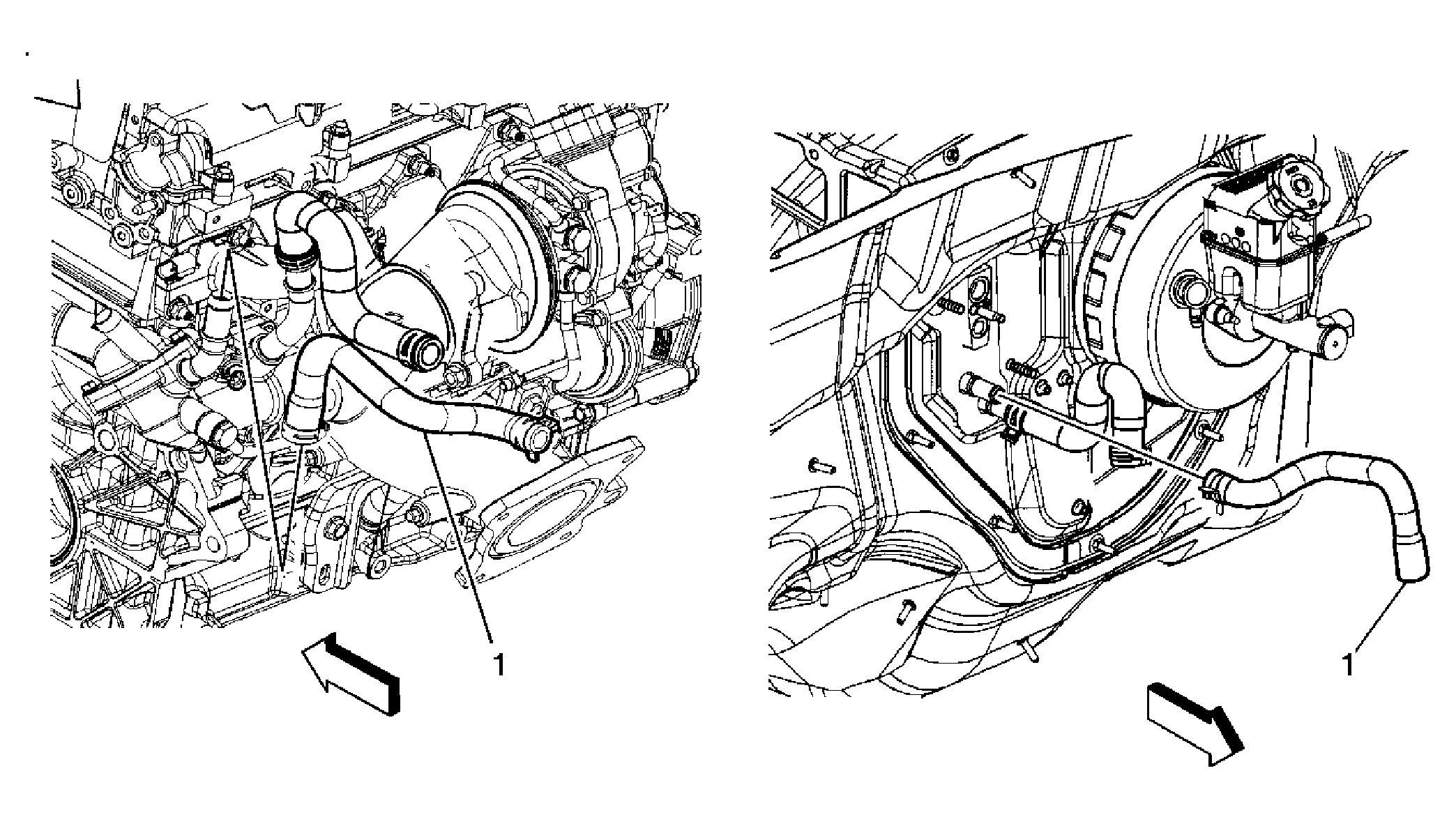

Fig 1: Identifying Heater Outlet Hose

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) . Remove the evaporator hose assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement Remove the condenser tube. Refer to Condenser Tube Replacement (LNF)
1	Heater Outlet Hose Procedure: Using J 38185 reposition the heater outlet hose clamps. Special Tools: J 38185 Hose Clamp Pliers

Callout

Component Name

Preliminary Procedure

Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill LE5, L61) or Cooling System Draining and Filling (Static Fill LNF) or Cooling System Draining and Filling (GE 47716 Fill) .
Remove the evaporator hose assembly. Refer to Air Conditioning Evaporator Hose Assembly Replacement
Remove the condenser tube. Refer to Condenser Tube Replacement (LNF)

Heater Outlet Hose
Procedure:
Using J 38185 reposition the heater outlet hose clamps.
Special Tools:
J 38185 Hose Clamp Pliers
