Reverse Flushing Setup

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Reverse flow refrigerant flush is recommended for desiccant bag failure. Replace the condenser/receiver dehydrator assembly when the A/C flush is complete and perform the following procedure:

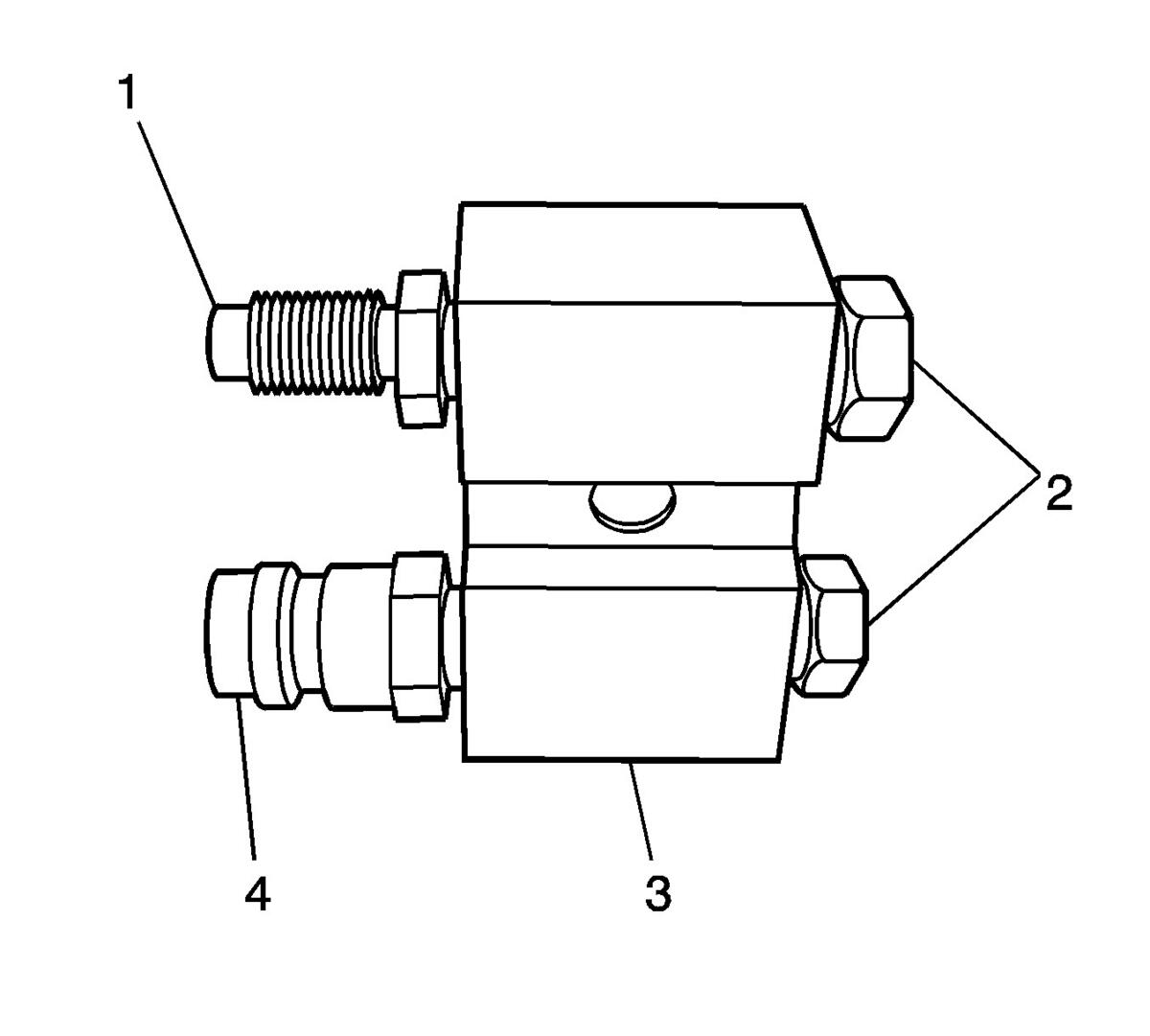

    Fig 1: Using J45268-9, J45268-8, J 45268-7, & J 45268-2
    GM1211671Courtesy of GENERAL MOTORS CORP.
    NOTE: Inspect and lubricate the J 45268  . See Special Tools . Refer to Air Conditioning System Seal Replacement .
  1. Install both J 45268-9 (2) onto the J 45268-10 (3).
  2. Install the J 45268-8 (1) onto the suction side of the J 45268-10 (3).
  3. Install the J 45268-7 (4) onto the discharge side of the J 45268-10 (3).
