Installation Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

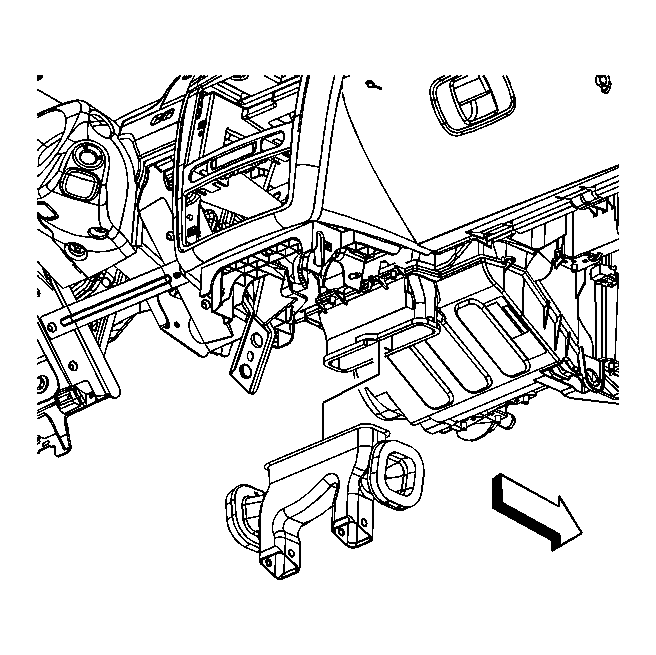

    Fig 1: Floor Air Outlet Duct
    GM1609081Courtesy of GENERAL MOTORS CORP.
  1. Install the center floor air outlet duct.
  2. Install the right floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Right Side .
  3. Install the left floor outlet duct. Refer to Floor Air Outlet Duct Replacement - Left Side .
  4. Install the floor console side extensions. Refer to Front Floor Console Extension Replacement - Side .
