Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

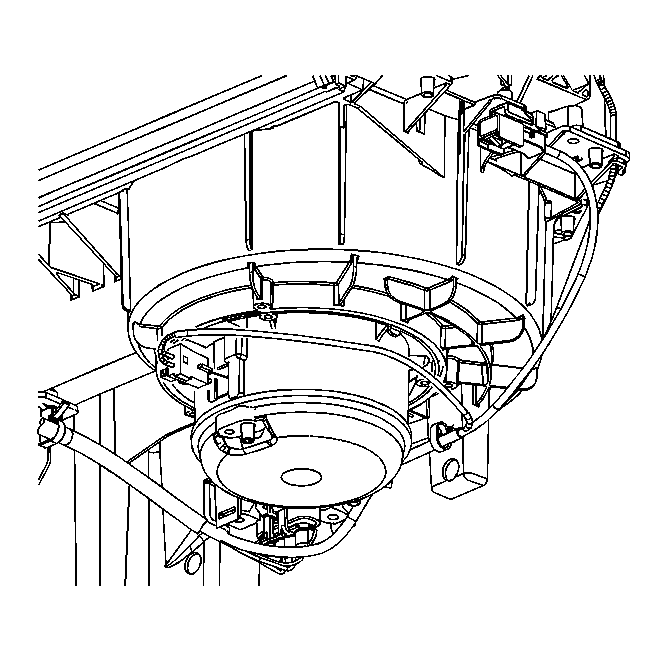

Fig 1: View Of Blower Motor Electrical Connector

Courtesy of GENERAL MOTORS CORP.

Disconnect the blower motor electrical connector.

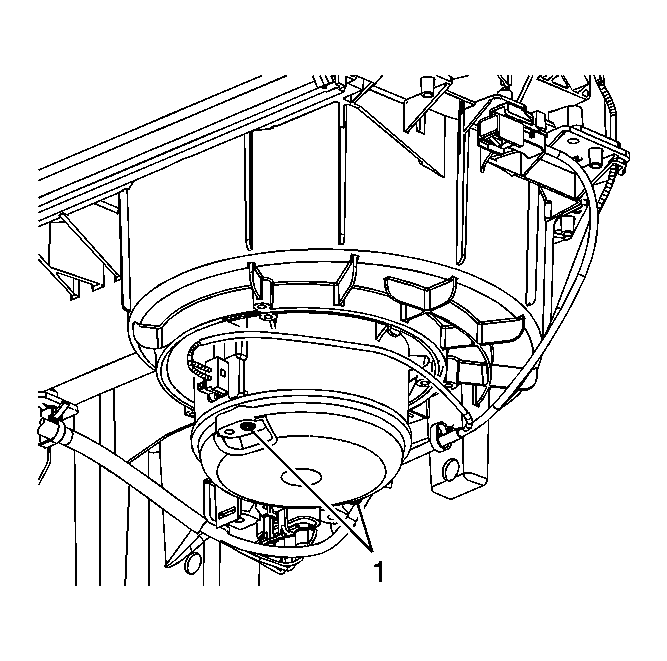

Fig 2: Identifying Blower Motor Cover Heat Stakes

Courtesy of GENERAL MOTORS CORP.

Remove the lower blower motor cover heat stakes (1) with a small chisel.

Fig 3: Identifying Lower Blower Motor Cover

Courtesy of GENERAL MOTORS CORP.

Remove the lower blower motor cover.

Fig 4: Identifying Blower Motor Nuts

Courtesy of GENERAL MOTORS CORP.

Remove the blower motor nuts.

Fig 5: Cutting Through Case

Courtesy of GENERAL MOTORS CORP.

NOTE: Cut through the case as straight as possible because the motor cup must be reused. In order to prevent damage to the component, do not cut any deeper than necessary to remove the motor cup.

Remove the blower motor and cup from the lower case by cutting through the case between the circular ribs around the motor with a sharp utility knife.

Fig 6: Releasing Blower Motor Retaining Tab

Courtesy of GENERAL MOTORS CORP.

Release the blower motor retaining tab and remove the motor from the cup.
