Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement
  2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging .

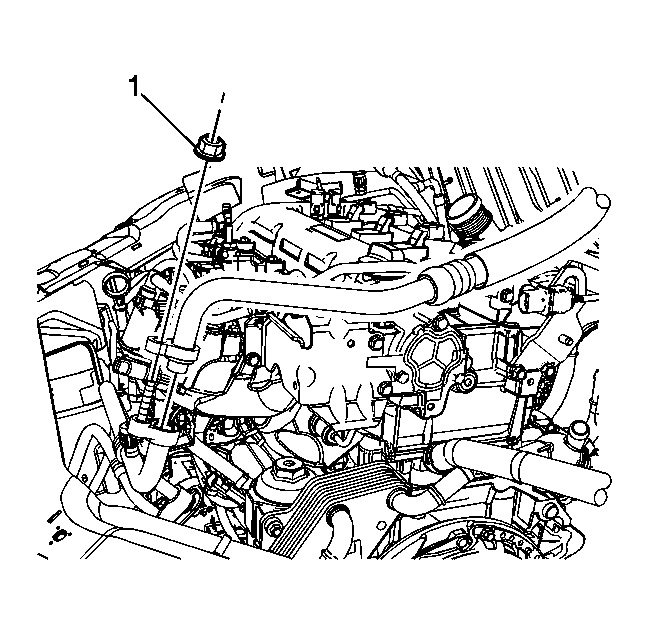

    3. Fig 1: Locating Compressor Hose Nut
    GM2044592Courtesy of GENERAL MOTORS CORP.
  3. Remove the compressor hose nut (1) from the evaporator hose.
  4. Remove and discard the seal washer.
    5. Fig 2: View Of Evaporator Tube & Compressor Suction Hose At TXV
    GM872539Courtesy of GENERAL MOTORS CORP.
  5. Remove the condenser tube and evaporator hose from the thermal expansion valve (TXV).
  6. Remove and discard the seal washers.
