Section 77 (Instrument Panel System Displays & Gauges)
>>
Schematic and Routing Diagrams
>>
Instrument Cluster Schematics
Instrument Cluster Schematics
WARNING:
This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

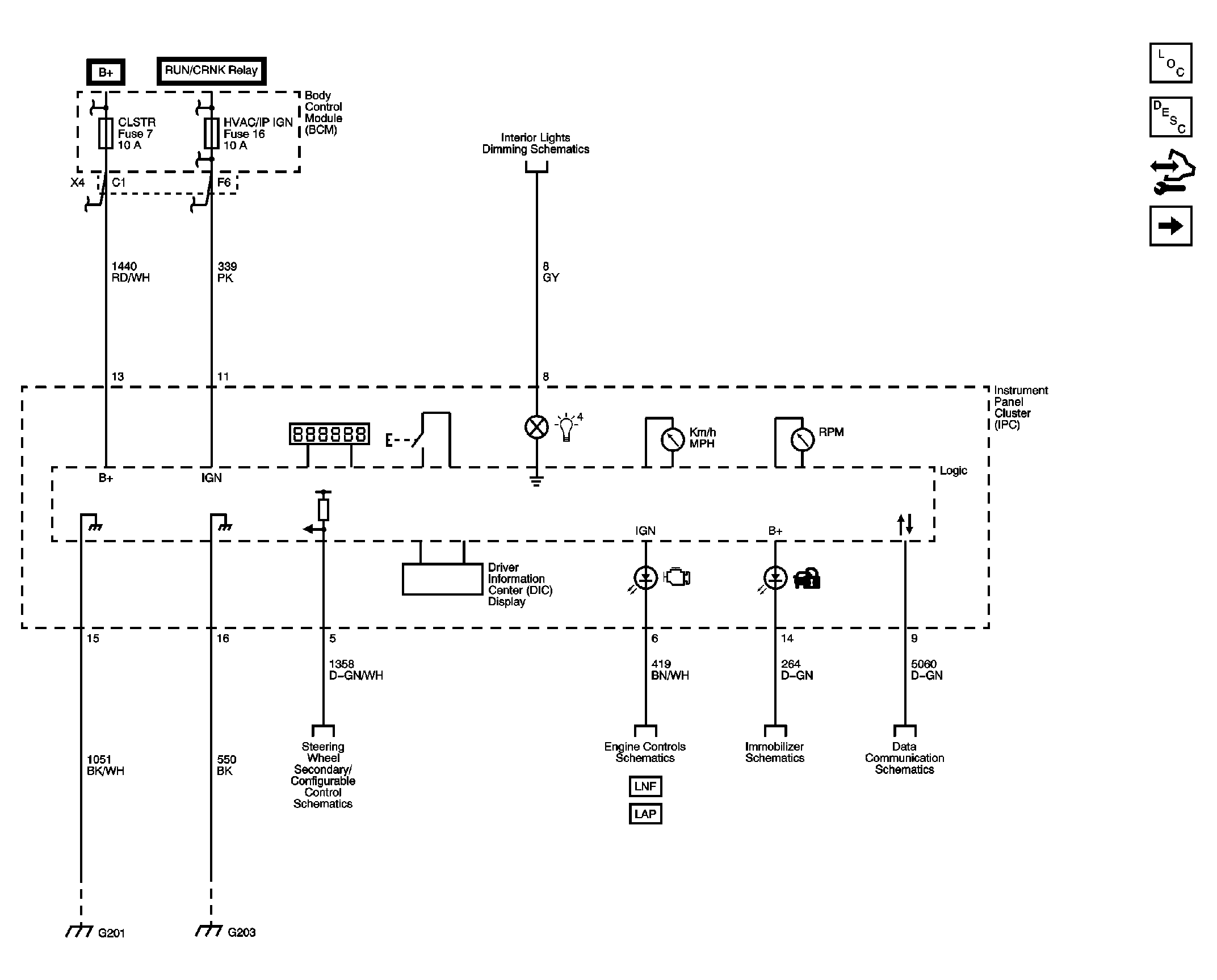

Fig 1: Power, Ground, MIL
Courtesy of GENERAL MOTORS CORP.

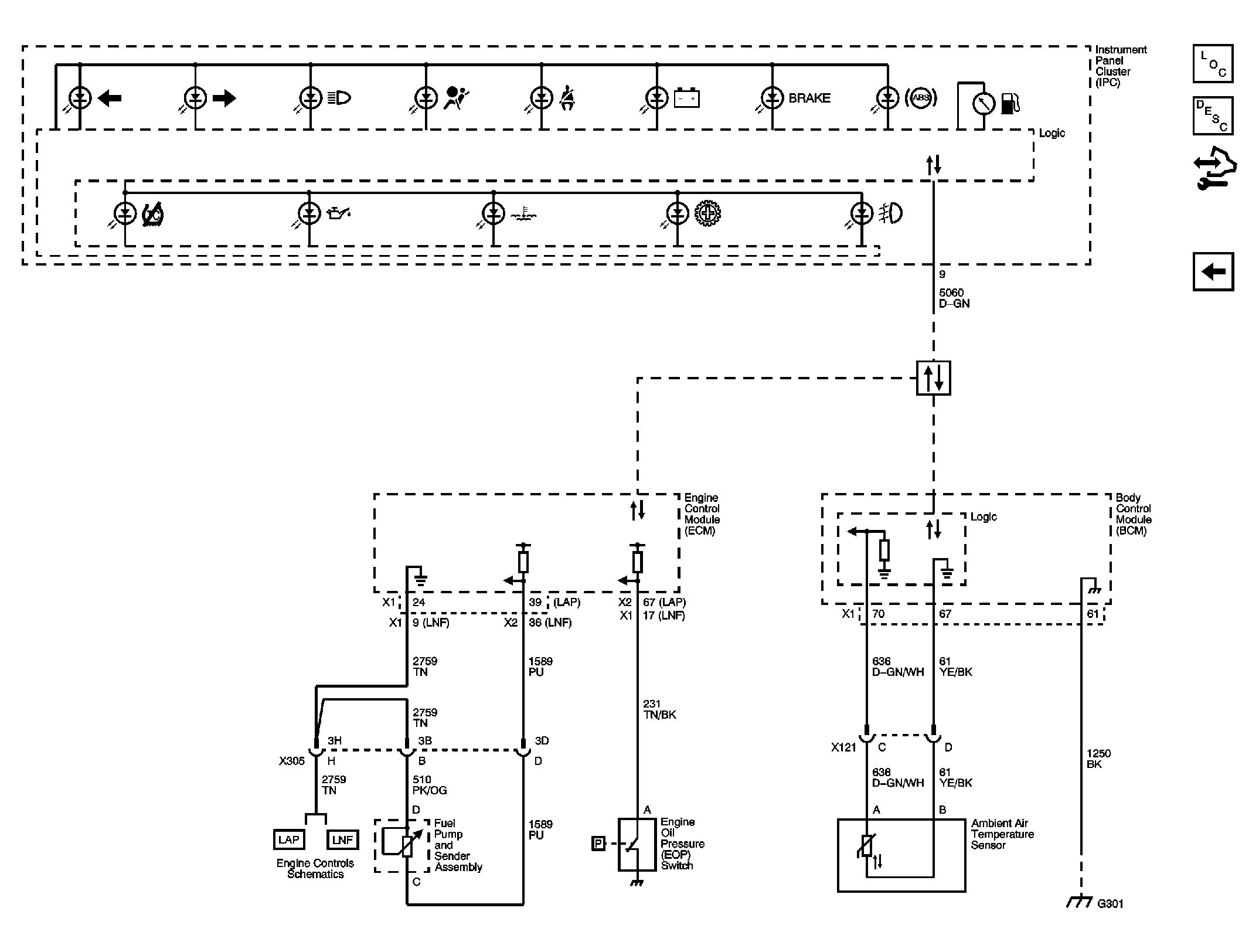

Fig 2: Sensors, Indicators
Courtesy of GENERAL MOTORS CORP.
