Driver Information System Schematics

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

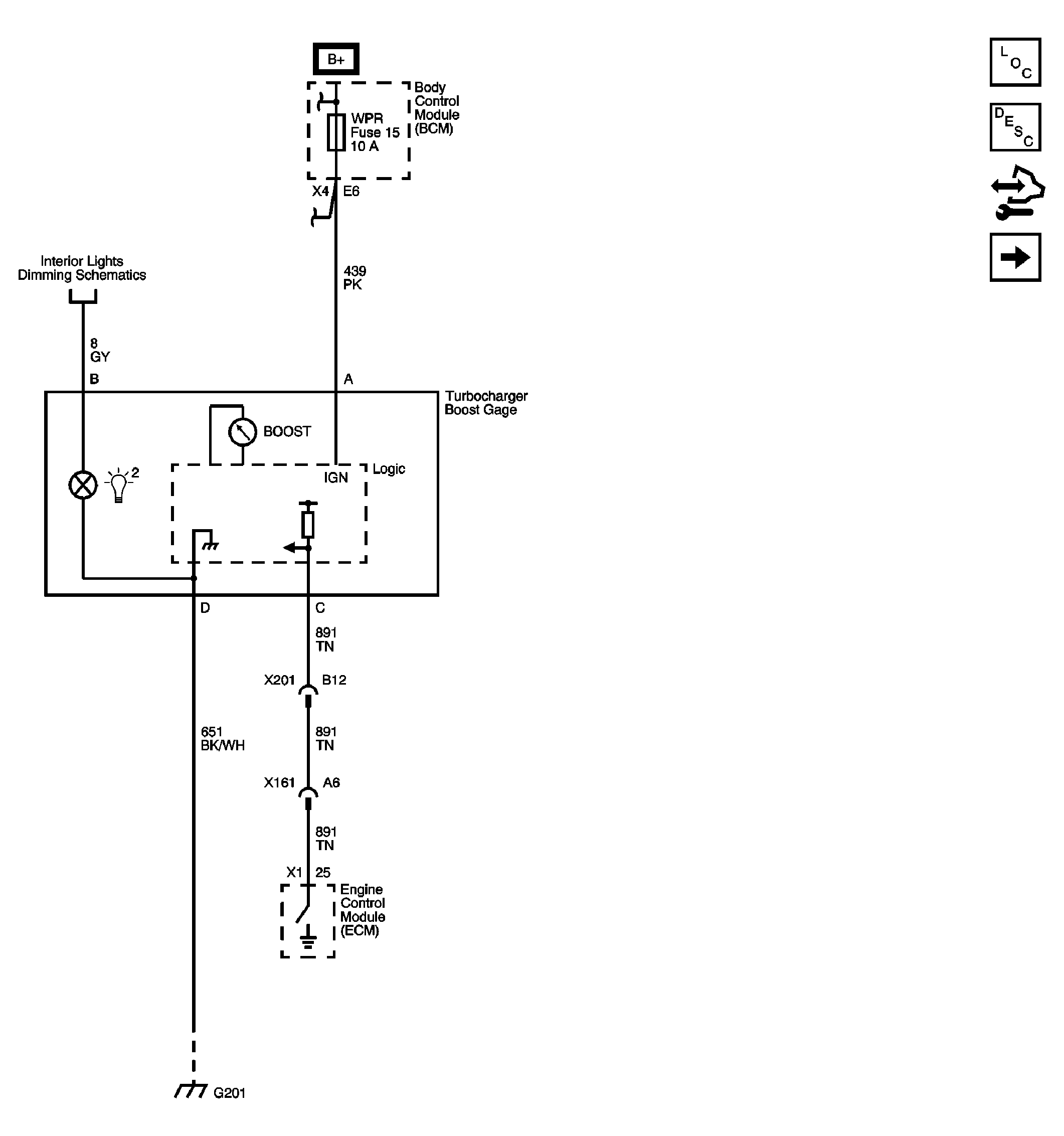

Fig 1: Boost Gauge (LNF without UAF)
GM2263152Courtesy of GENERAL MOTORS CORP.
Fig 2: Driver Information Center (DIC) (UAF)
GM2263153Courtesy of GENERAL MOTORS CORP.
