Instrument Panel Compartment Door Latch Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

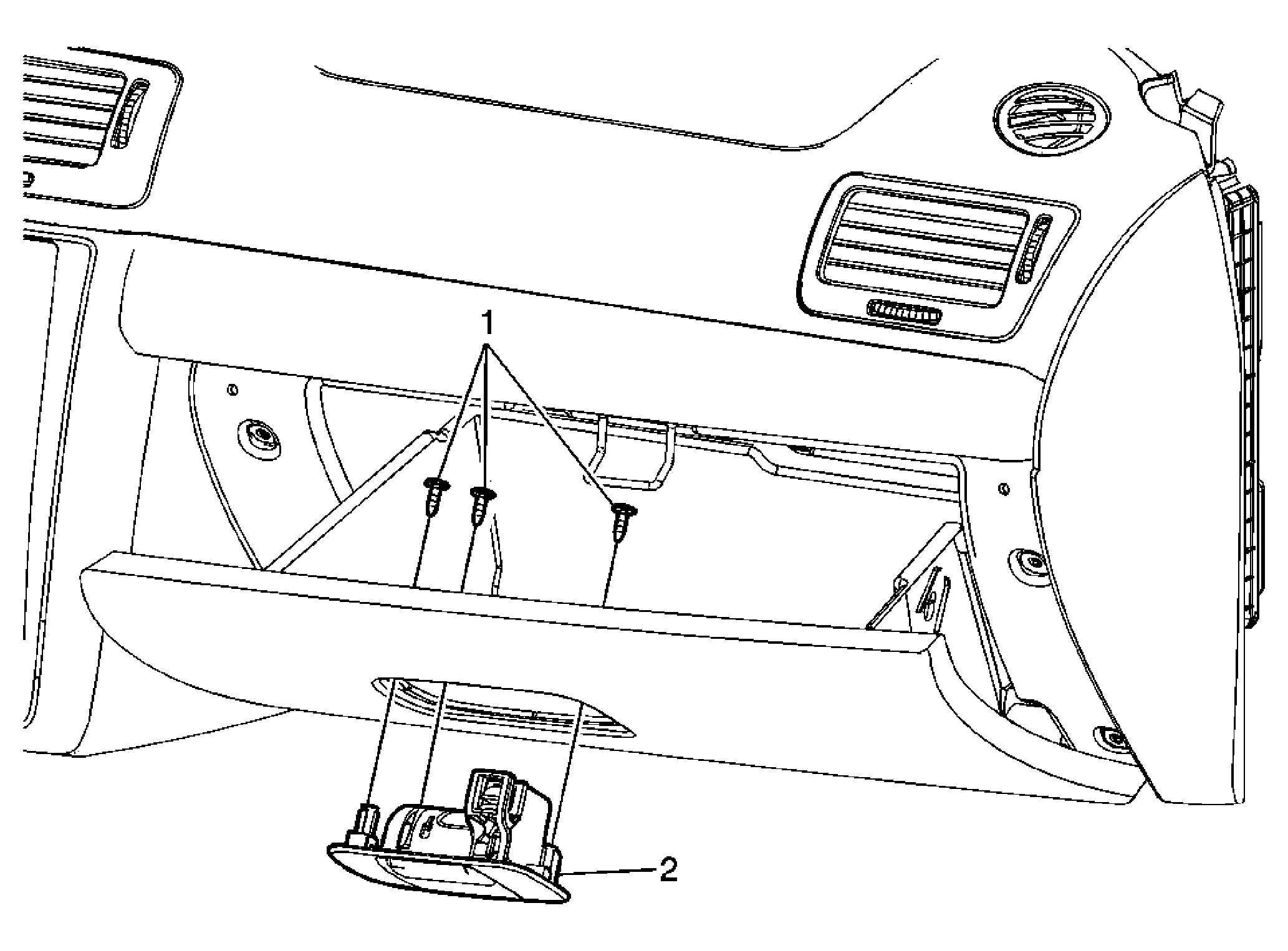

Fig 1: Identifying Instrument Panel Compartment Door Latch & Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Compartment Door Latch Fasteners CAUTION: Refer to Fastener Caution . Tighten: 2 N.m(18 lb in)
2	Instrument Panel Compartment Door Latch Assembly
