Instrument Panel Compartment Door Dampener Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

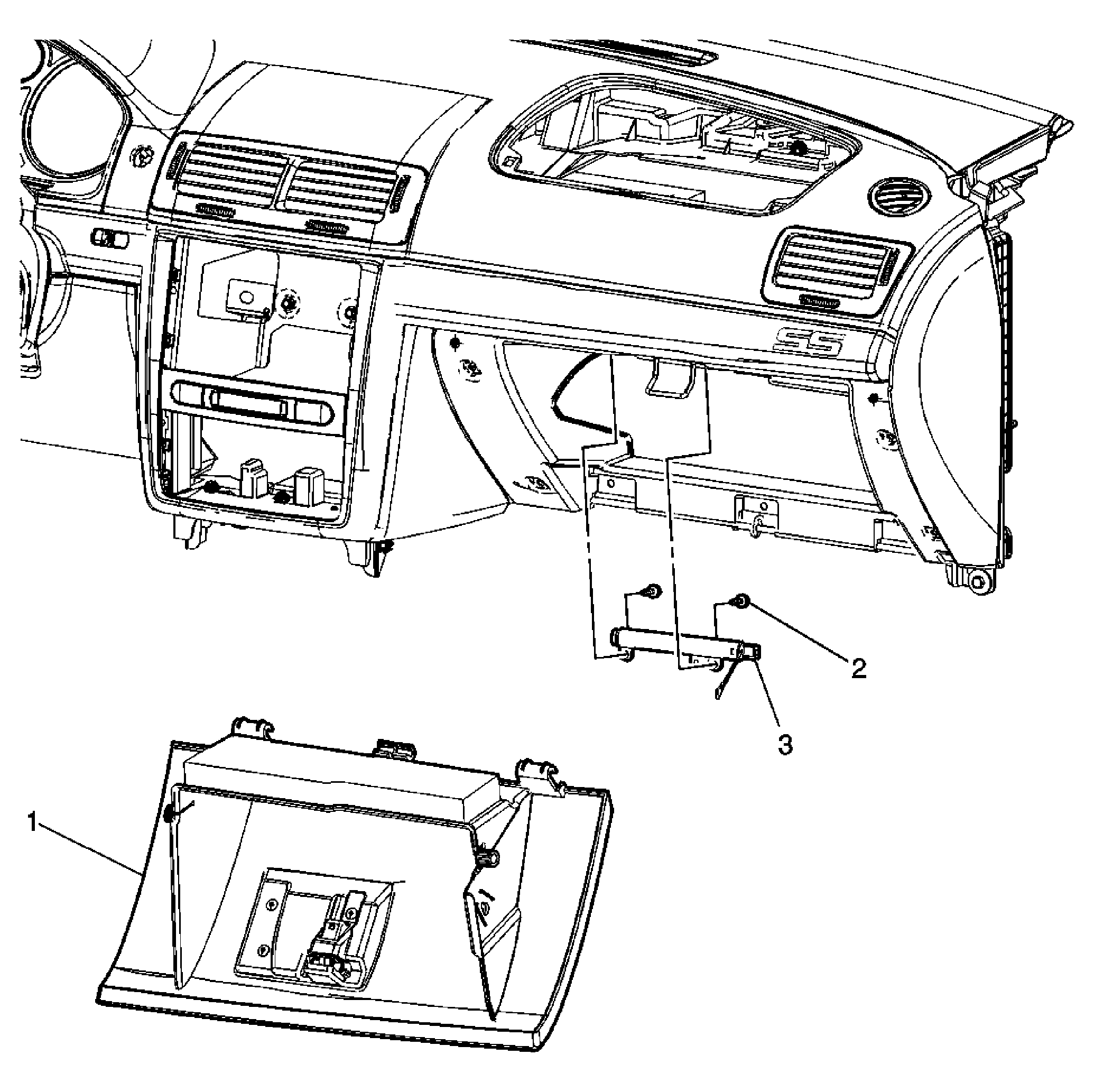

Fig 1: View Of Instrument Panel Compartment Door Dampener
GM1547784Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Instrument Panel Compartment
Tip:  Remove the dampener cable.
2 Instrument Panel Compartment Dampener Screw
Tip:  Remove the screws from the back of the instrument panel.
3 Instrument Panel Compartment Dampener
