Console Compartment Door Replacement

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

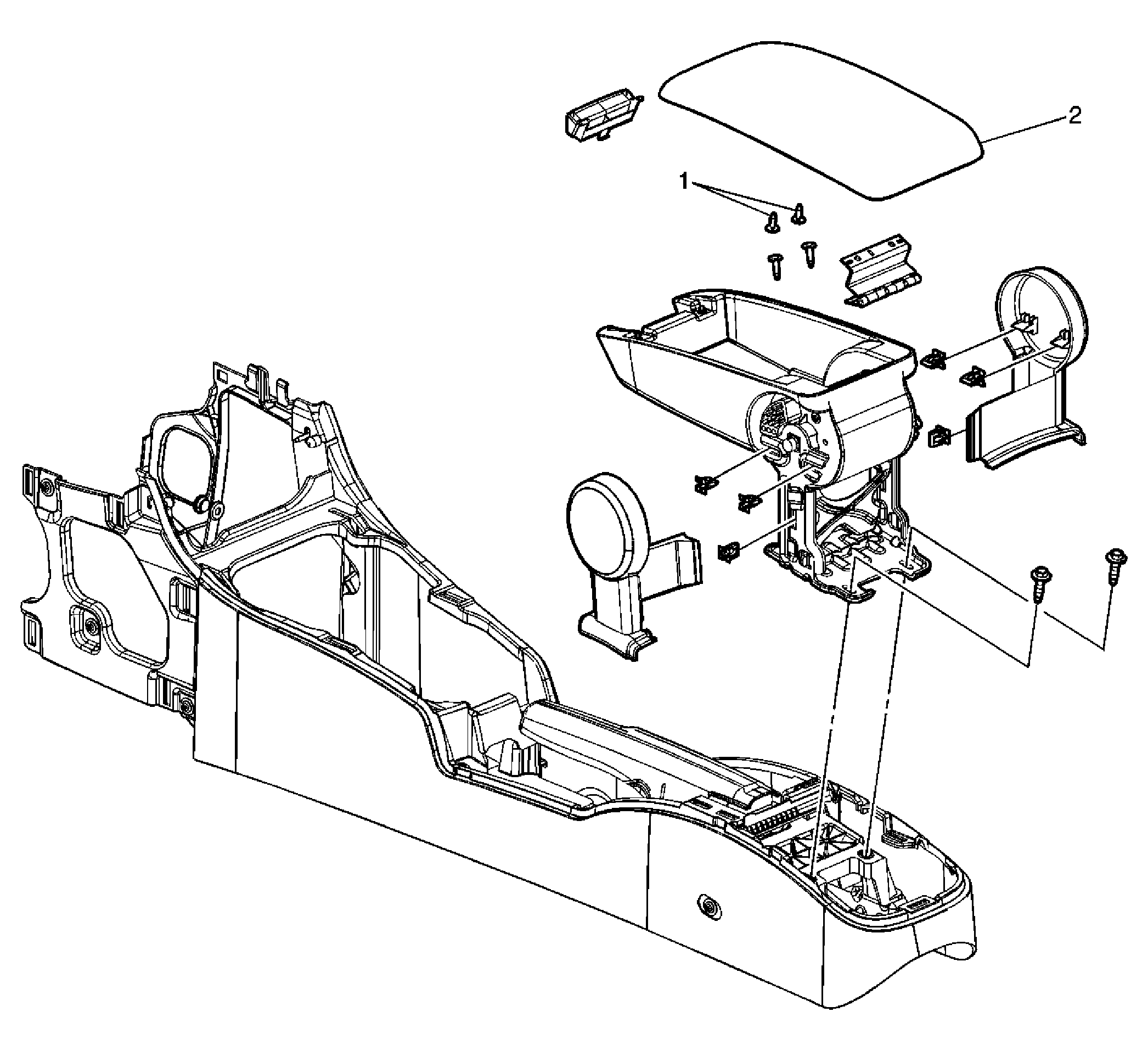

Fig 1: View Of Console Compartment Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Floor Console Armrest Door Screw
2	Floor Console Armrest Door Assembly
