Rear Seat Head Restraint Replacement
WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

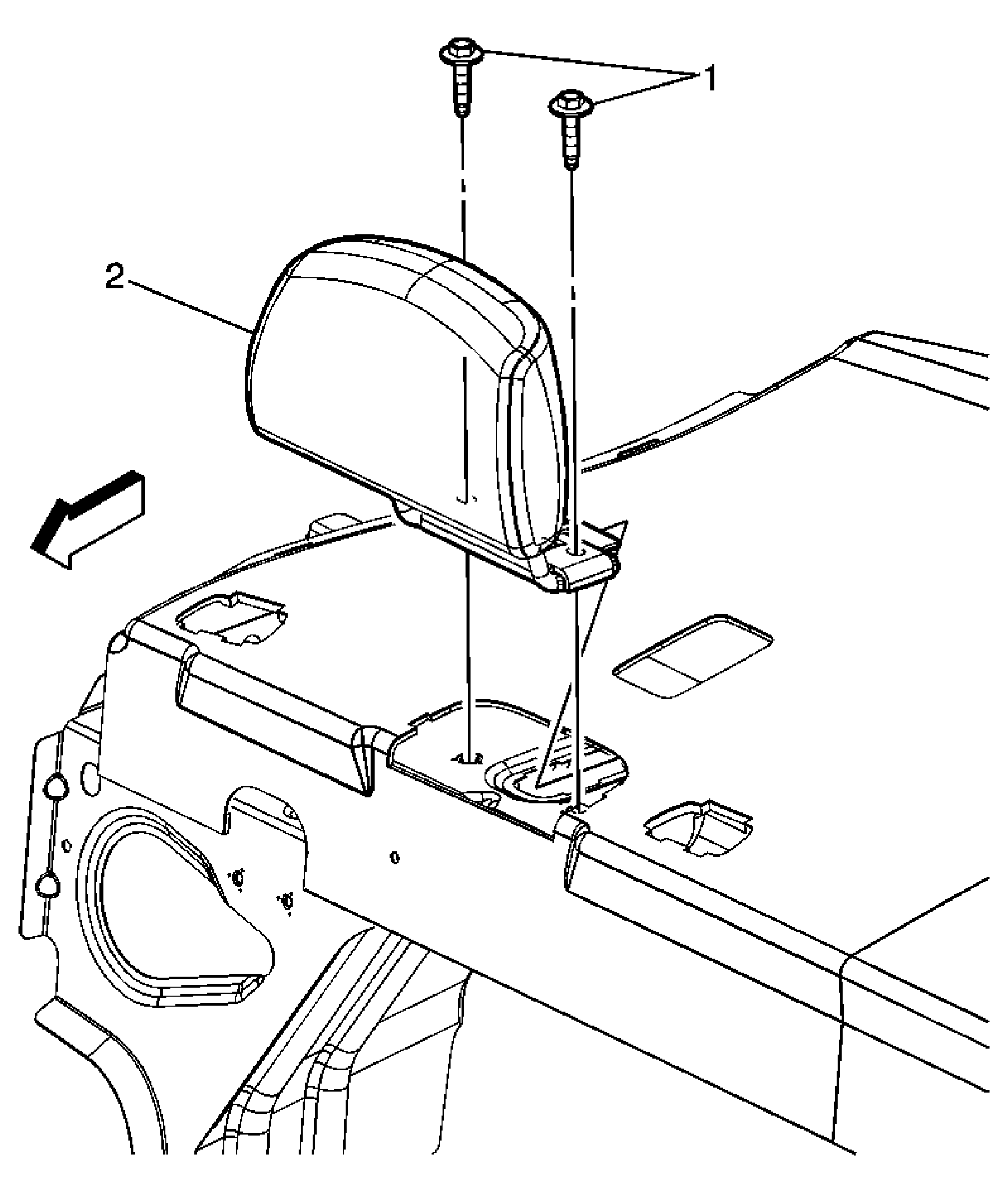

| Callout | Component Name |
|---|---|
| 1 | Rear Seat Head Restraint Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 25 N.m (18 lb ft) |
| 2 | Rear Seat Head Restraint Tip: Slide the head restraint forward and up to remove. |
