Removal Procedure

WARNING: This page is about a different car, the 2010 Pontiac G5 and 2010 Chevrolet Cobalt. However, it is still accessible from the selected car via links, so may be relevant.

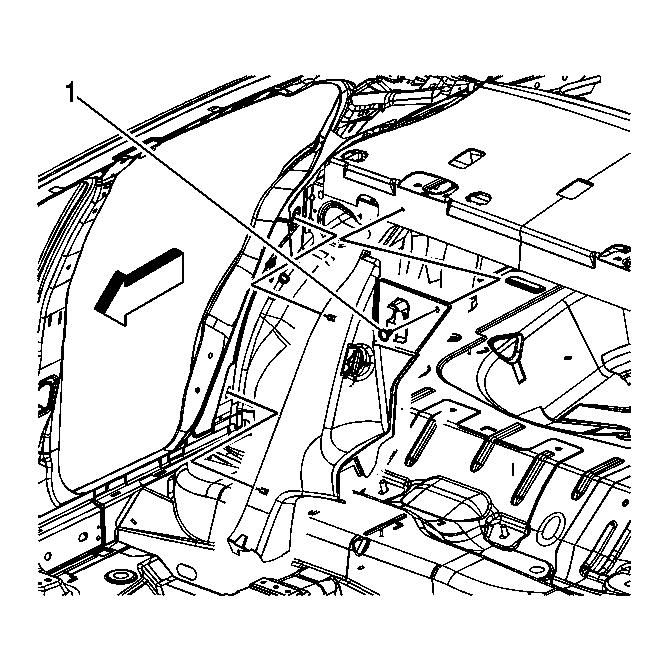

    Fig 1: Lower Lock Pillar Molding
    GM1734064Courtesy of GENERAL MOTORS CORP.
  1. Remove the fastener (1) from the lower lock pillar garnish molding. Sedan shown, coupe similar. Fold the garnish trim away from the latch.

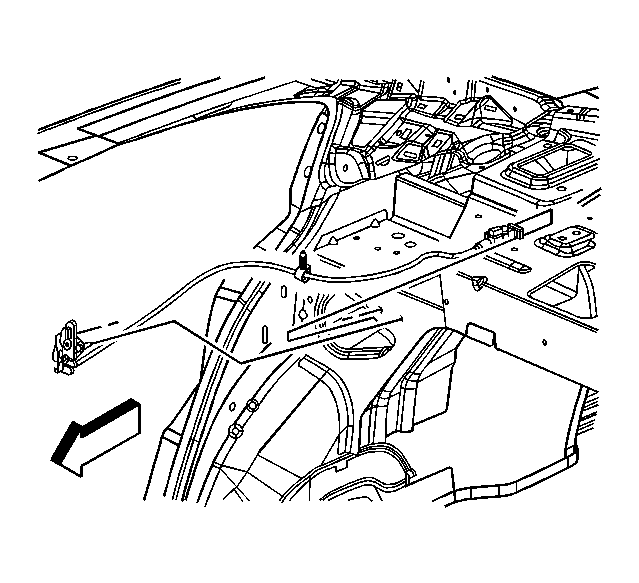

    2. Fig 2: View Of Latch Assembly
    GM876786Courtesy of GENERAL MOTORS CORP.
  2. Remove the latch bolts.

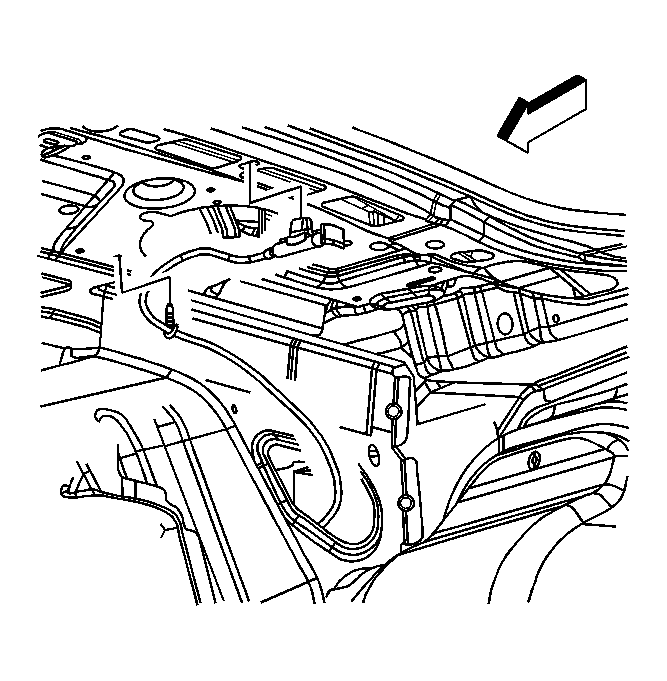

    3. Fig 3: View Of Latch Release Cable
    GM876787Courtesy of GENERAL MOTORS CORP.
  3. Disengage the clip holding the latch release handle to the rear compartment shelf.
  4. Remove the rosebud fastener which retains the latch cable to the rear compartment shelf.

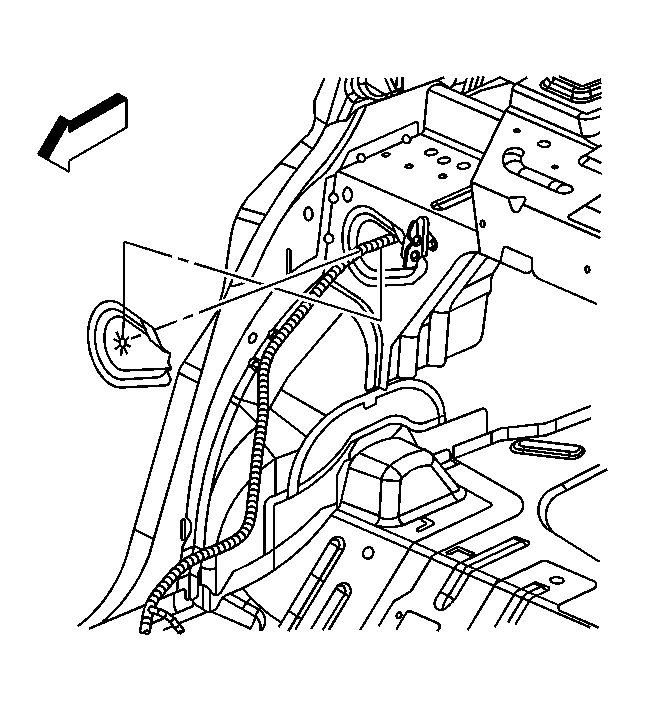

    5. Fig 4: View Of Latch Assembly Grommet
    GM888319Courtesy of GENERAL MOTORS CORP.
  5. Remove the grommet from the sheet metal.
  6. Pull the latch assembly into the passenger compartment.
  7. Remove the latch assembly from the vehicle.
