Solenoid Wire Harness
WARNING: This page is about a different car, the 2011 Honda Insight and 2010 Honda Insight. However, it is still accessible from the selected car via links, so may be relevant.

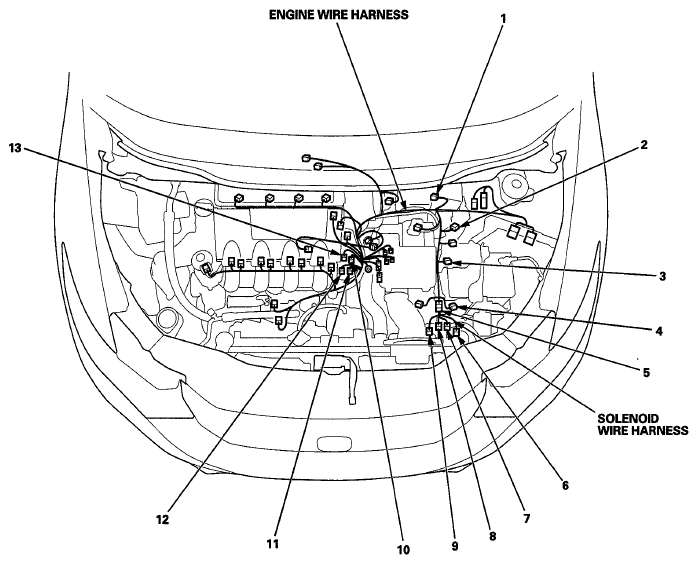

SOLENOID WIRE HARNESS SPECIFICATIONS
| Connector or Terminal | Ref | Cavities | Location | Connects to |
|---|---|---|---|---|
| CVT drive pulley pressure control solenoid valve | 6 | 2 | In the transmission | |
| CVT driven pulley pressure control solenoid valve | 8 | 2 | In the transmission | |
| CVT clutch pressure control solenoid valve | 7 | 2 | In the transmission | |
| Inhibitor solenoid | 9 | 2 | In the transmission | |
| C106 | 5 | 7 | On transmission housing | Engine wire harness |
